Climate Control System does not Operate on Rear Right Side: Wiring Diagram

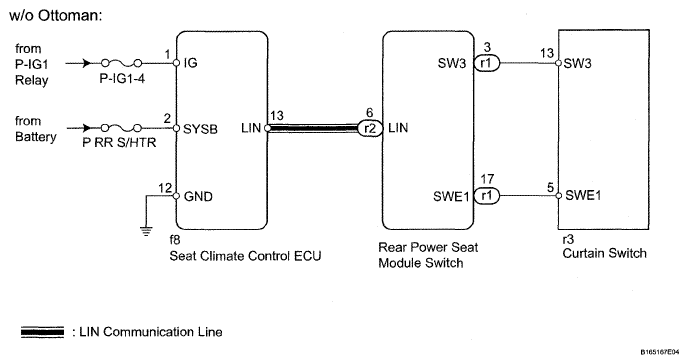

Fig 1: Climate Control System Does Not Operate On Rear Right Side - Wiring Diagram (1 Of 2)
G04952678Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

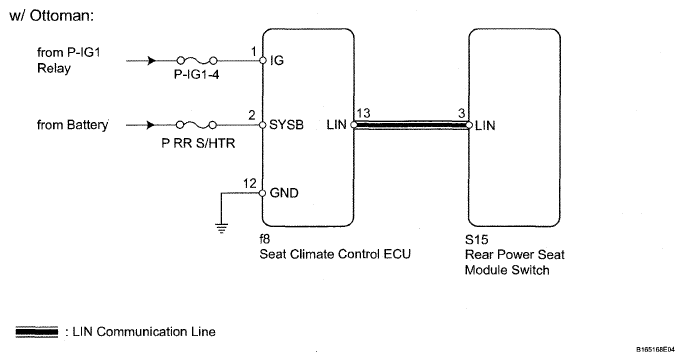

Fig 2: Climate Control System Does Not Operate On Rear Right Side - Wiring Diagram (2 Of 2)
G04952679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
