Climate Control System does not Operate on Passenger Side: Wiring Diagram

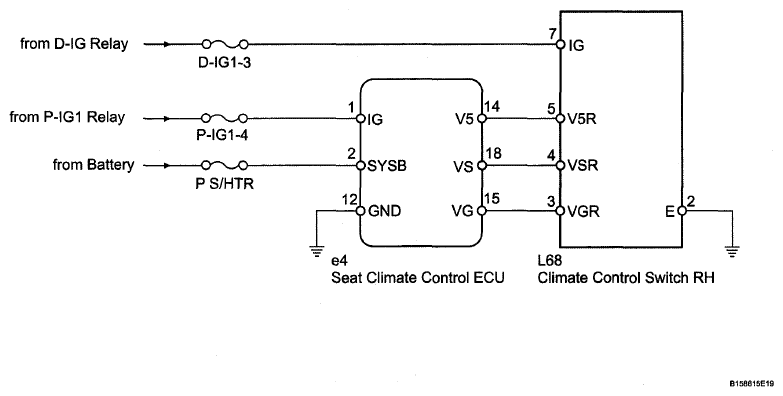

Fig 1: Climate Control System Does Not Operate On Passenger Side - Wiring Diagram
G06194375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
