Rocker Panel Molding: Reassembly

INSTALL NO. 4 ROCKER PANEL MOLDING PROTECTOR
1. Install 4 new No. 4 protectors.

  Fig 1: Identifying No. 4 Rocker Panel Molding Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 ROCKER PANEL MOLDING PROTECTOR
1. Install 2 new No. 3 protectors.

  Fig 2: Identifying No. 3 Rocker Panel Molding Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 ROCKER PANEL MOLDING PROTECTOR
1. Install new No. 2 protectors.

  Fig 3: Identifying No. 2 Rocker Panel Molding Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 1 ROCKER PANEL MOLDING PROTECTOR
1. Install 4 new protectors to the areas shown in the illustration.

  Fig 4: Identifying No. 1 Rocker Panel Molding Protector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL ROCKER PANEL MOLDING CLIP
1. for Standard Body:
  Install the 10 rocker panel molding clips.
2. for Long Body:
  Install the 11 rocker panel molding clips.

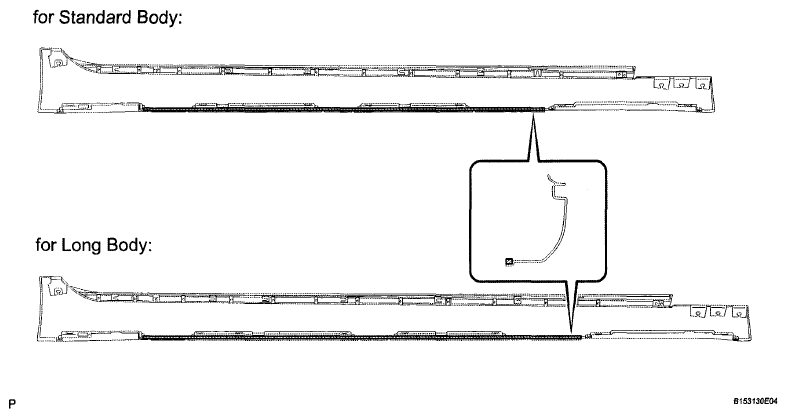

  Fig 5: Locating Rocker Panel Molding Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
