Rocker Panel Molding: Disassembly

REMOVE ROCKER PANEL MOLDING CLIP
1. for Standard Body:
  Remove the 10 rocker panel molding clips.
2. for Long Body:
  Remove the 11 rocker panel molding clips.

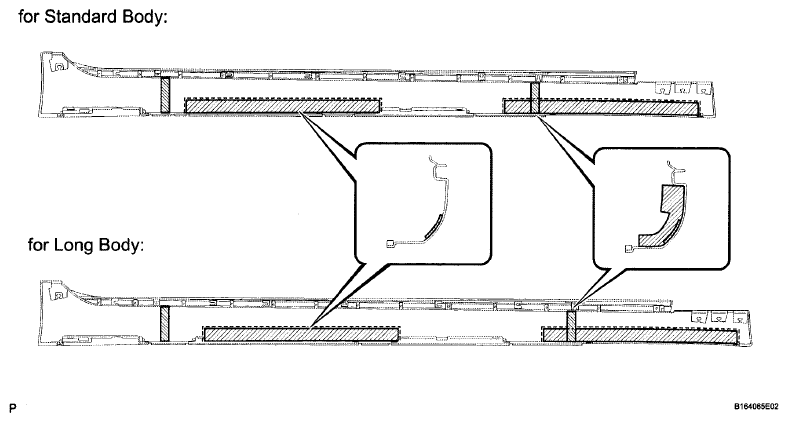

  Fig 1: Locating Rocker Panel Molding Clips
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 1 ROCKER PANEL MOLDING PROTECTOR
1. Remove the 4 No. 1 rocker panel molding protectors.

  Fig 2: Identifying No. 1 Rocker Panel Molding Protectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 2 ROCKER PANEL MOLDING PROTECTOR
1. Remove the No. 2 rocker panel molding protector.

  Fig 3: Identifying No. 2 Rocker Panel Molding Protectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 3 ROCKER PANEL MOLDING PROTECTOR
1. Remove the 2 No. 3 rocker panel molding protectors.

  Fig 4: Identifying No. 3 Rocker Panel Molding Protectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE NO. 4 ROCKER PANEL MOLDING PROTECTOR
1. Remove the 4 No. 4 rocker panel molding protectors.

  Fig 5: Identifying No. 4 Rocker Panel Molding Protectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
