ULTRASONIC SENSOR (for Front Side): Components

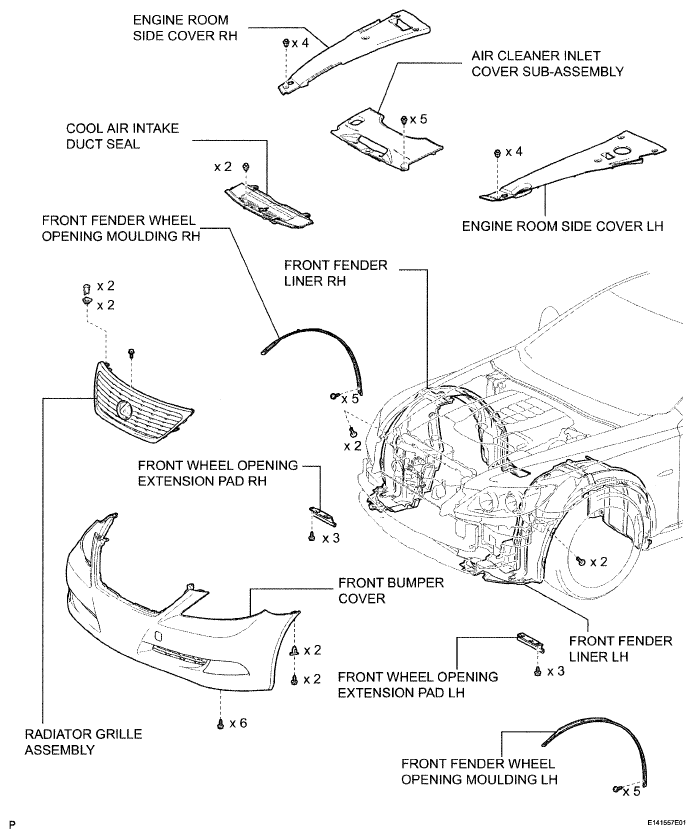

Fig 1: Identifying Front Fender And Bumper Components
G04952012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

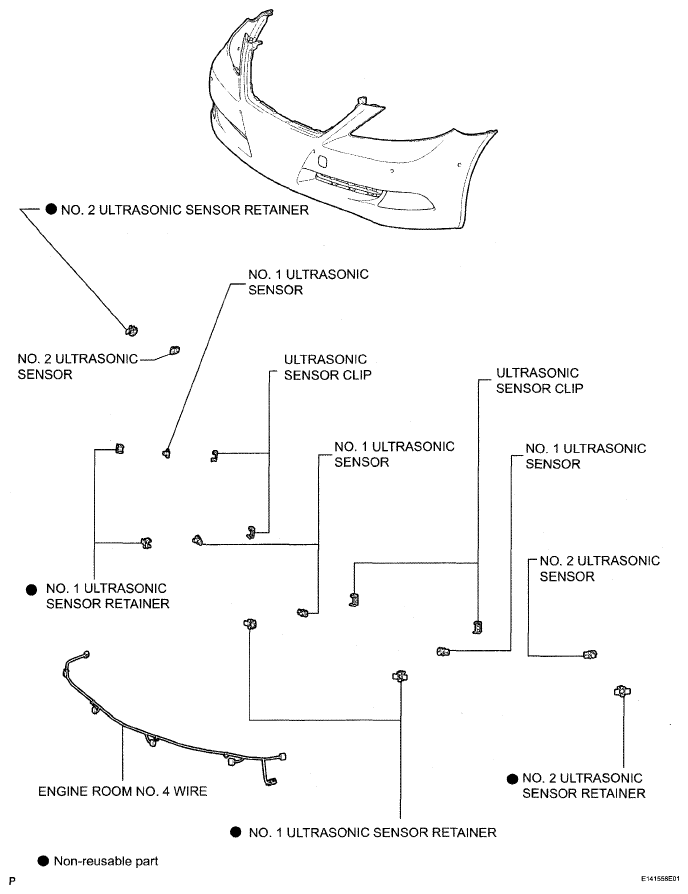

Fig 2: Identifying Ultrasonic Sensor Components (Front Side)
G04952013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
