Inspection Procedure

  1. CHECK HARNESS AND CONNECTOR (PARKING ASSIST ECU - MULTI-DISPLAY)
    1. Disconnect the L90 ECU connectors.
    2. Disconnect the L60 multi-display connector.
    3. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      RESISTANCE SPECIFIED CONDITIONS

      Tester Connection Condition Specified Condition
      L90-11 (AUO+) - L60-8 (IVI+) Always Below 1 Ω
      L90-30 (AUO-) - L60-7 (IVI-) Always Below 1 Ω
      L90-11 (AUO+) - Body ground Always 10 kΩ or higher
      L90-30 (AUO-) - Body ground Always 10 kΩ or higher
      L90-29 (AUGO) - Body ground Always 10 kΩ or higher

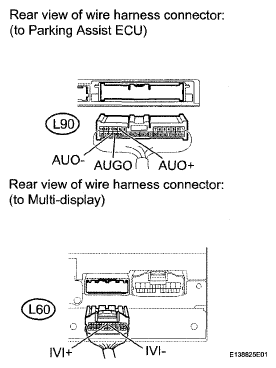

      Fig 1: Identifying L90 ECU And L60 Multi-Display Connector Terminals
      G04951968Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE )
