DTC U1002 Lost Communication with Gateway Module: Wiring Diagram

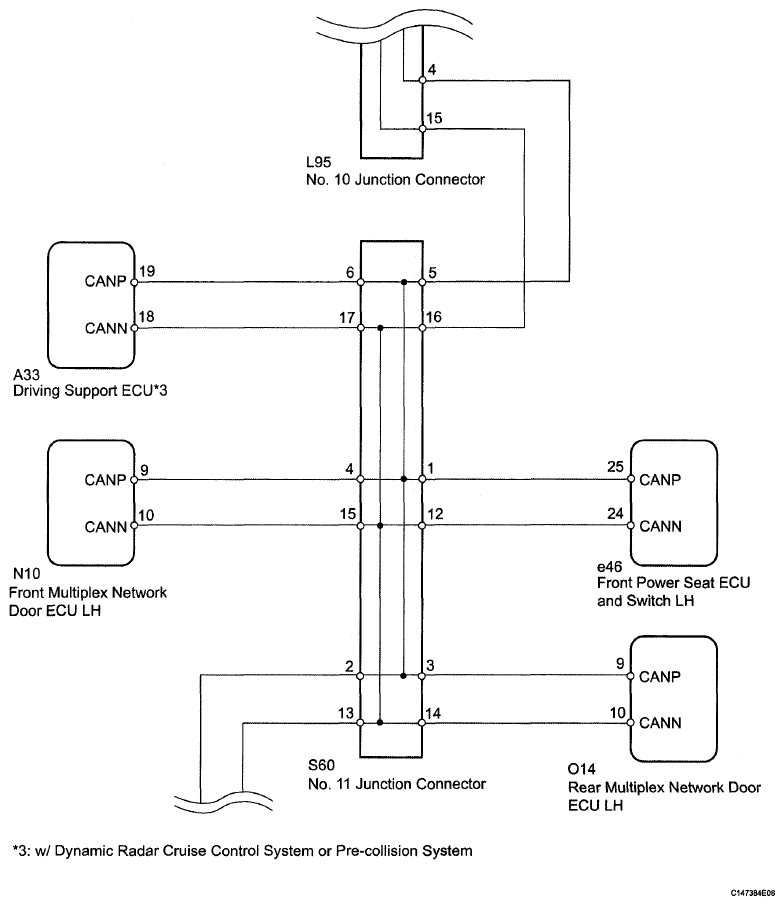

Fig 1: Lost Communication With Gateway Module - Wiring Diagram (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

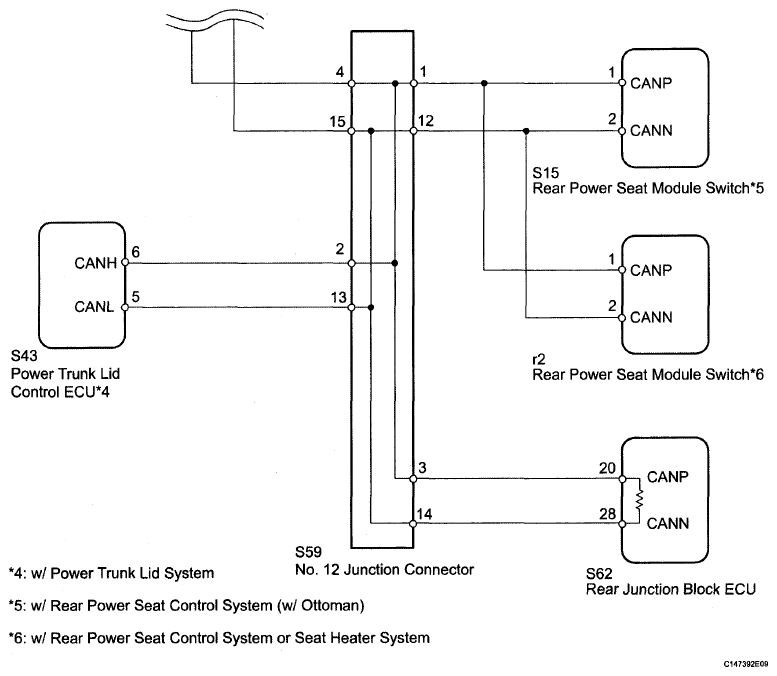

Fig 2: Lost Communication With Gateway Module - Wiring Diagram (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

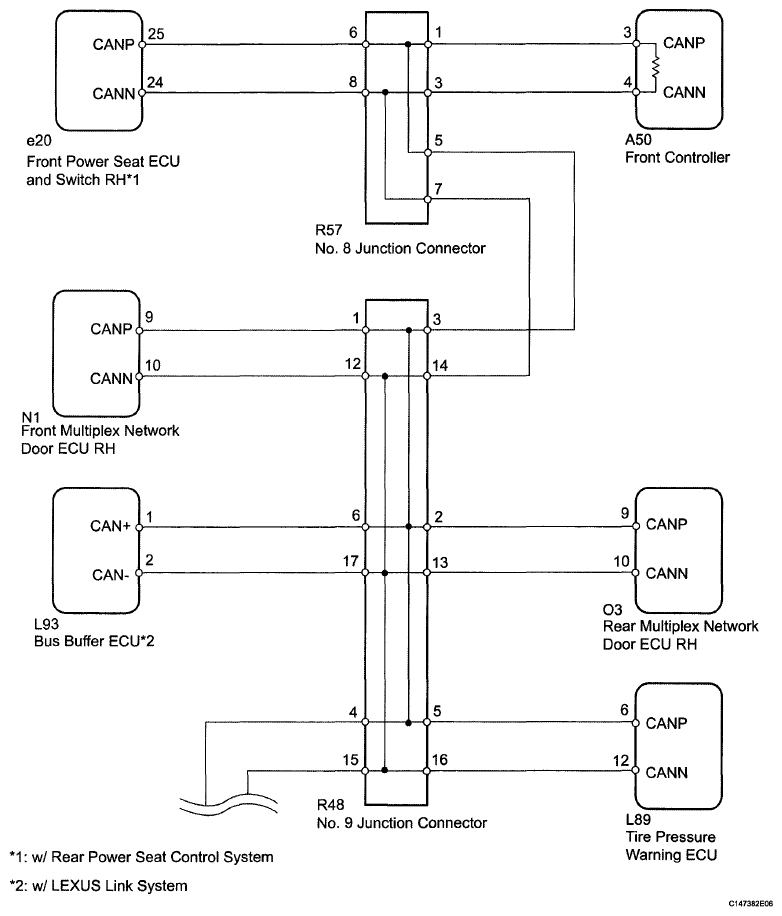

Fig 3: Lost Communication With Gateway Module - Wiring Diagram (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

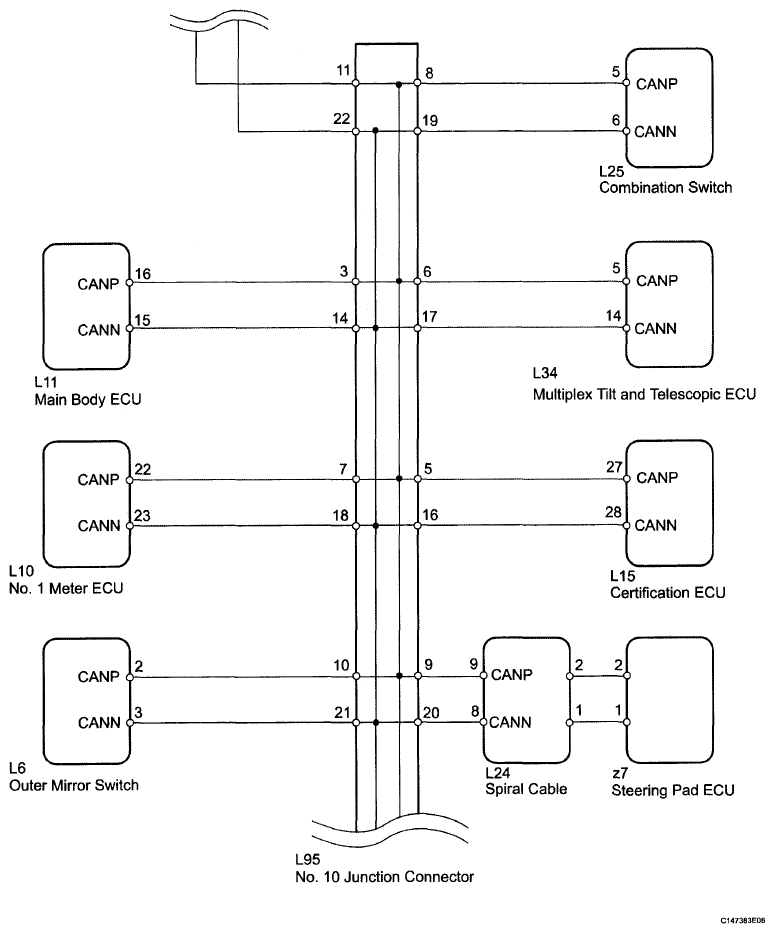

Fig 4: Lost Communication With Gateway Module - Wiring Diagram (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
