DTC U0126 Lost Communication with Steering Angle Sensor Module: Wiring Diagram

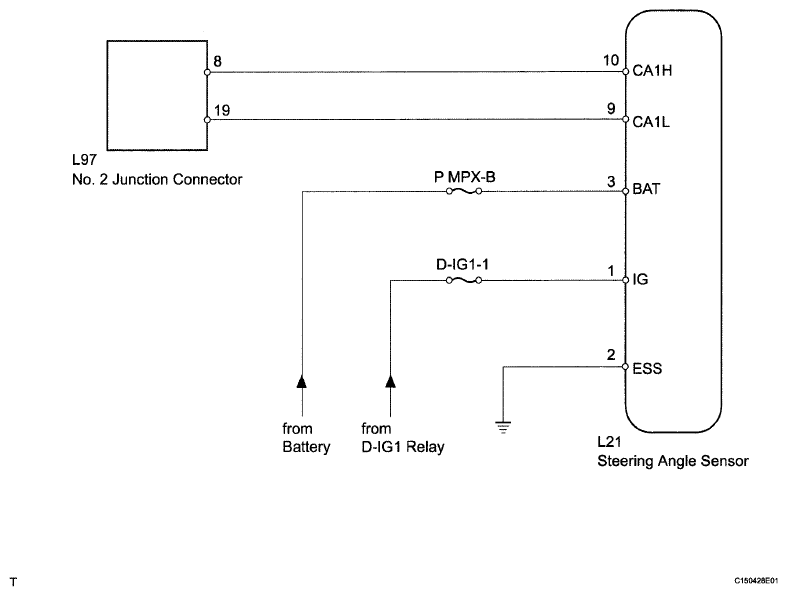

Fig 1: Lost Communication With Steering Angle Sensor Module - Wiring Diagram
G06198484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
