Curtain Shield Airbag Assembly: Components

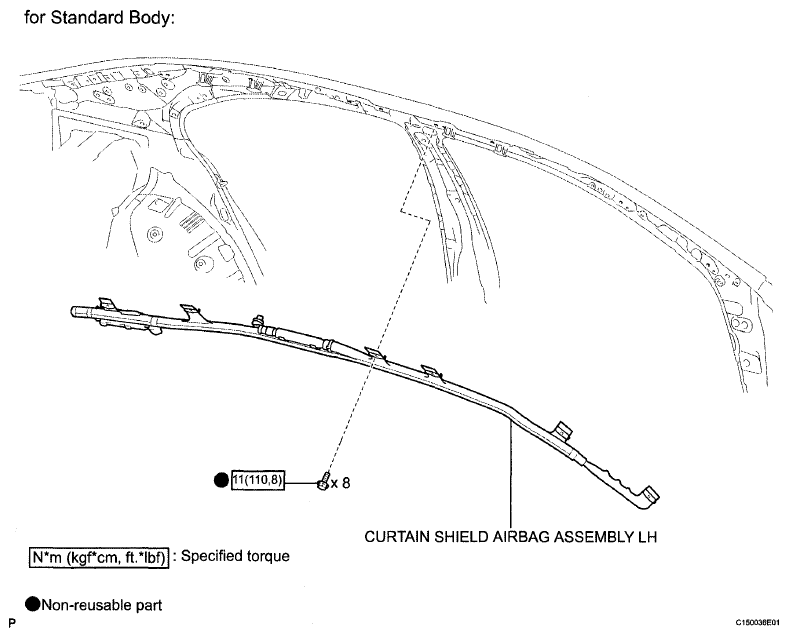

Fig 1: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (1 Of 2)
G06187961Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

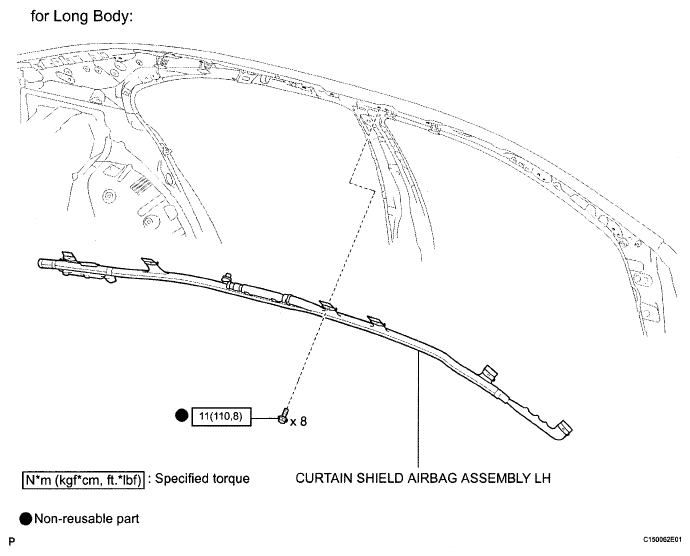

Fig 2: Curtain Shield Airbag Assembly Replacement Components With Torque Specifications (2 Of 2)
G05852428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
