Camshaft Position Sensor: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  (See REMOVAL )
  2. REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the camshaft position sensor connector.
    2. Remove the bolt and camshaft position sensor.

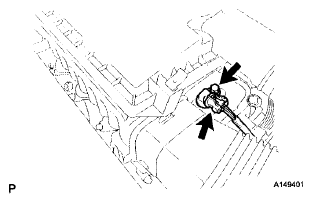

      Fig 1: Locating Camshaft Position Sensor With Bolt
      G06190184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
