OIL LEVEL SENSOR (for AWD): Components

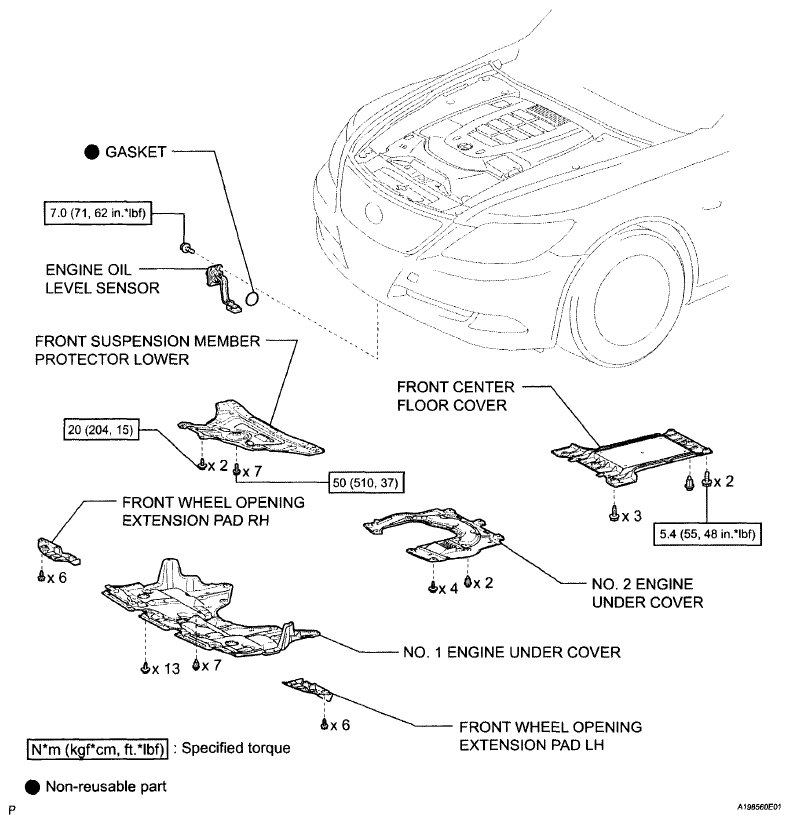

Fig 1: Oil Level Sensor And Related Replacement Components With Torque Specifications (AWD)

G06196519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
