RADIATOR (for 2WD): Components

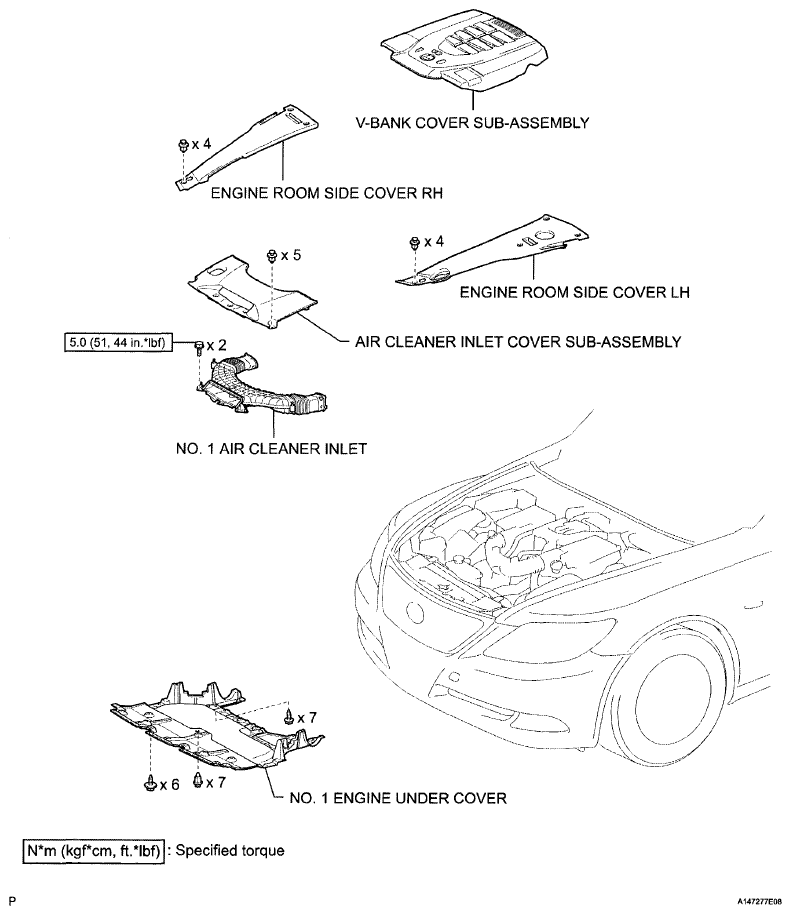

Fig 1: Air Cleaner And Engine Under Cover Replacement Components With Torque Specifications
G06196425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Radiator Replacement Components With Torque Specifications (1 Of 2)
G04948218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

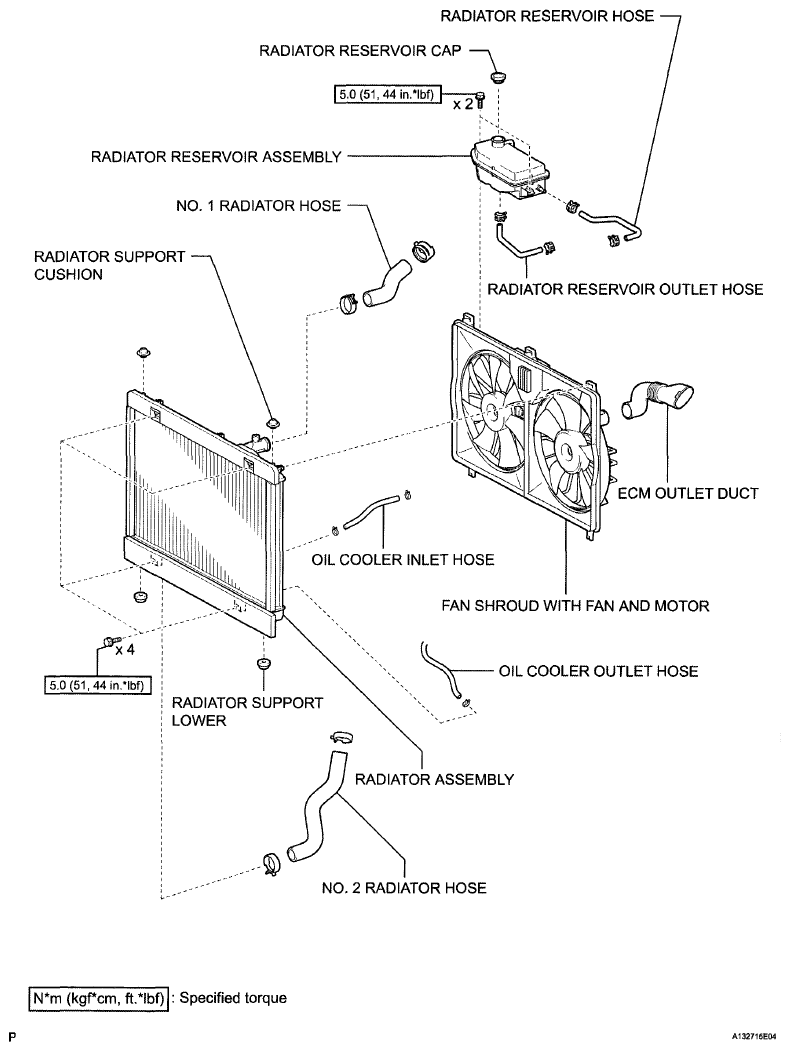

Fig 3: Radiator Replacement Components With Torque Specifications (2 Of 2)
G06196427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
