Cooling Fan Ecu: Components

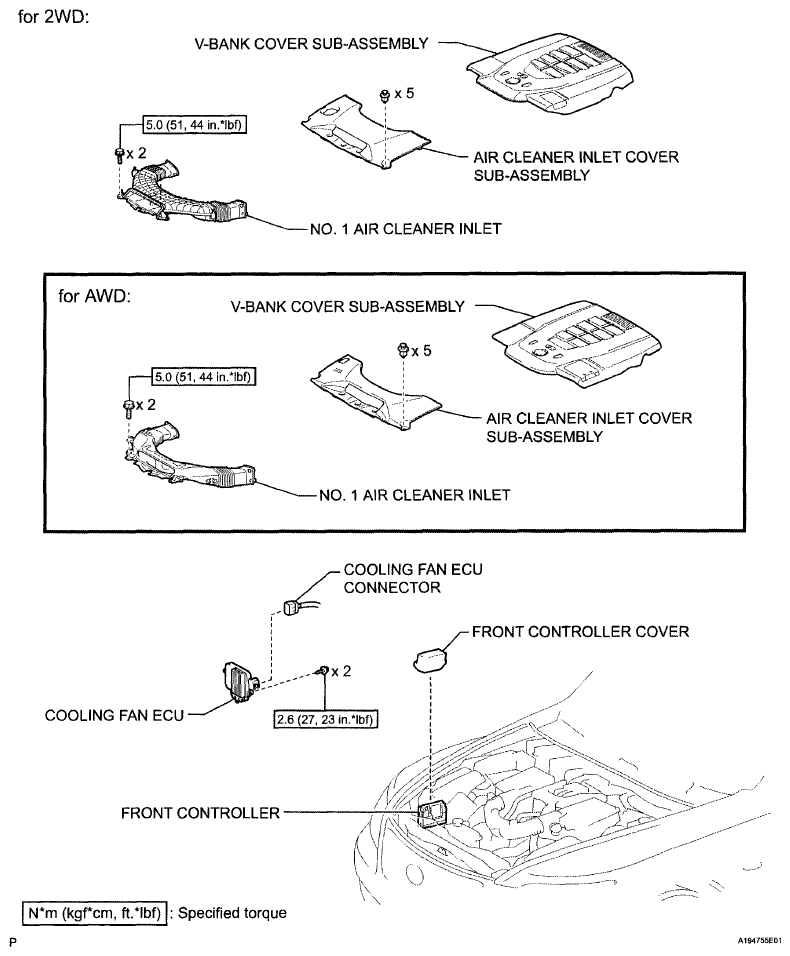

Fig 1: Cooling Fan ECU Replacement Components With Torque Specifications

G06196415

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
