Front Seatback Heater: Components

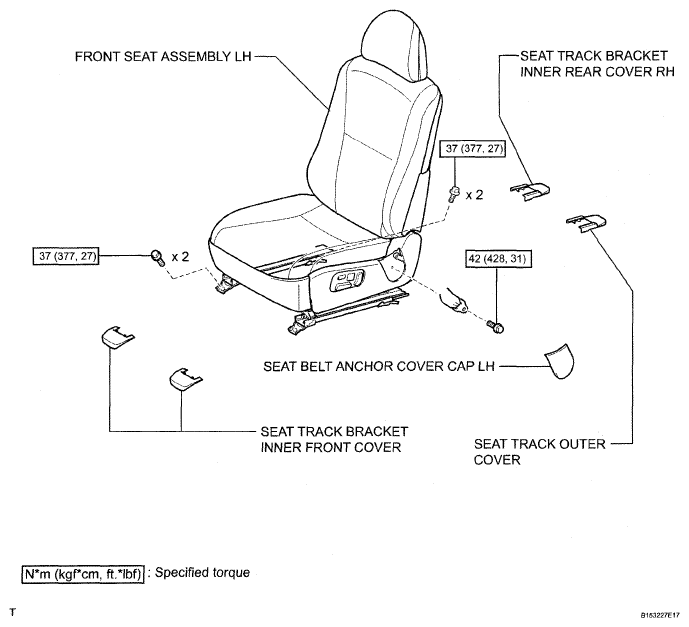

Fig 1: Front Seatback Heater Replacement Components With Torque Specifications (1 Of 3)
G04953200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

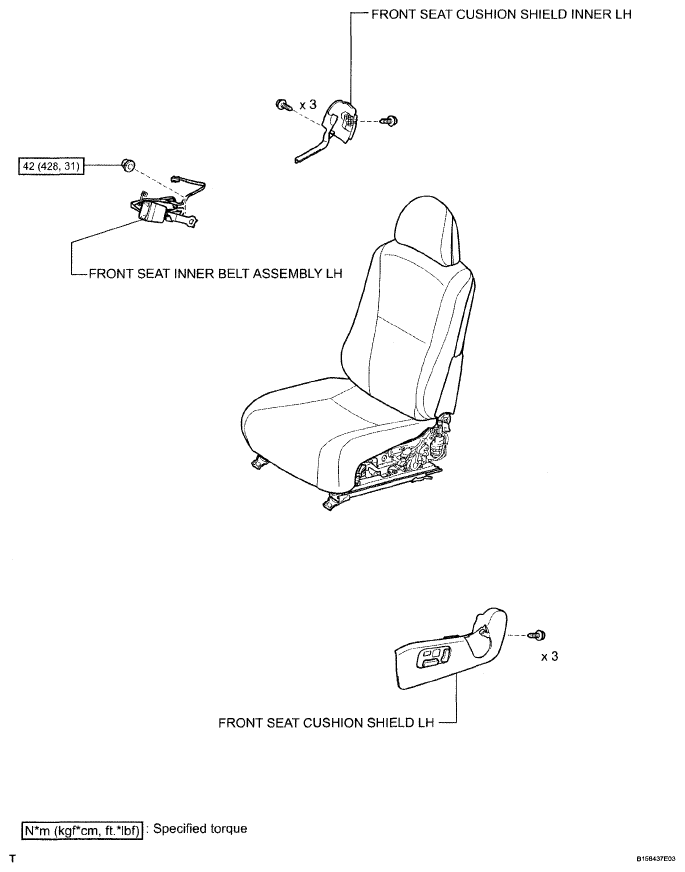

Fig 2: Front Seatback Heater Replacement Components With Torque Specifications (2 Of 3)
G04953201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

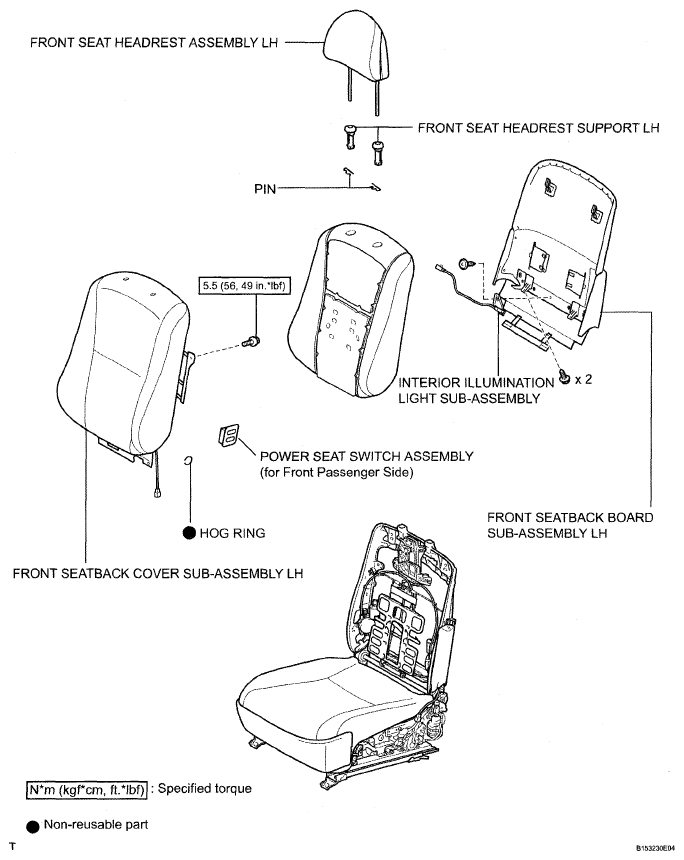

Fig 3: Front Seatback Heater Replacement Components With Torque Specifications (3 Of 3)
G04953202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
