Terminals Of Ecu

HINT:

Operating the engine switch, any switches or any doors triggers related ECU and sensor communication with the CAN, which causes resistance variation.

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
      NOTE:
      • Before measuring the resistance, leave the vehicle for at least 1 minute and do not operate the engine switch, any switches or doors. If doors need to be opened in order to check connectors, open the doors and leave them open.
      • After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.
      • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
  2. JUNCTION CONNECTOR
    1. NO. 1 JUNCTION CONNECTOR

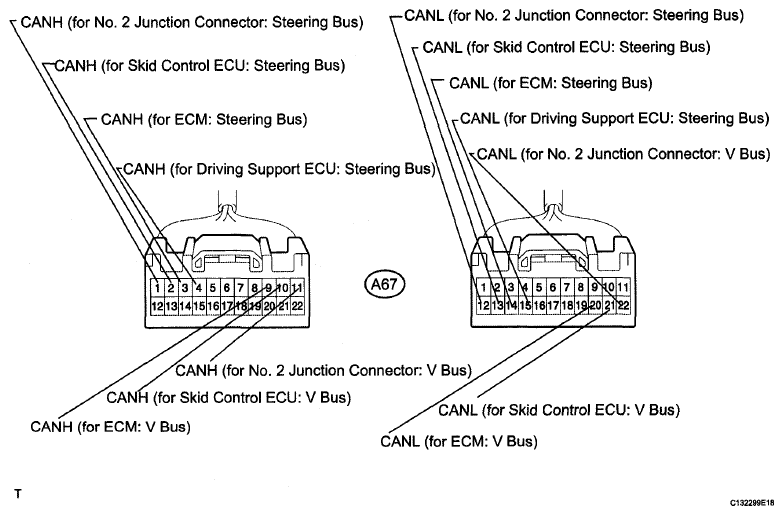

      Fig 1: Identifying No. 1 Junction Connector
      G06198420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 1 Junction Connector Wiring Color Connect to
      A67-9 (CANH) R ECM (V bus)
      A67-20 (CANL) G ECM (V bus)
      A67-3 (CANH) B ECM (Steering bus)
      A67-14 (CANL) W ECM (Steering bus)
      A67-10 (CANH) R Skid control ECU (V bus)
      A67-21 (CANL) G Skid control ECU (V bus)
      A67-2 (CANH) B Skid control ECU (Steering bus)
      A67-13(CANL) W Skid control ECU (Steering bus)
      A67-4 (CANH) B Driving support ECU (Steering bus)
      A67-15 (CANL) W Driving support ECU (Steering bus)
      A67-11 (CANH) R No. 2 junction connector (V bus)
      A67-22 (CANL) G No. 2 junction connector (V bus)
      A67-1 (CANH) B No. 2 junction connector (Steering bus)
      A67-12 (CANL) W No. 2 junction connector (Steering bus)
    2. NO. 2 JUNCTION CONNECTOR

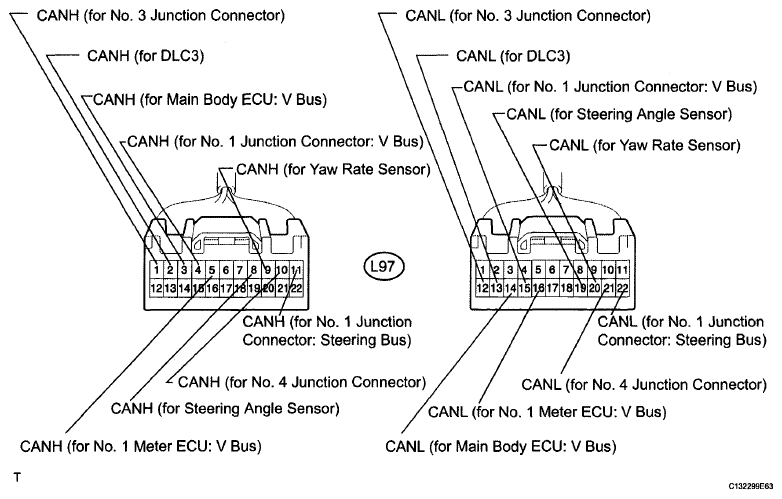

      Fig 2: Identifying No. 2 Junction Connector
      G06198421Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 2 Junction Connector Wiring Color Connect to
      L97-4 (CANH) R No. 1 junction connector (V bus)
      L97-15 (CANL) G No. 1 junction connector (V bus)
      L97-11 (CANH) B No. 1 junction connector (Steering bus)
      L97-22 (CANL) W No. 1 junction connector (Steering bus)
      L97-2 (CANH) R DLC3
      L97-13 (CANL) G DLC3
      L97-3 (CANH) R Main body ECU (V bus)
      L97-14 (CANL) G Main body ECU (V bus)
      L97-5 (CANH) R No. 1 meter ECU (V bus)
      L97-16 (CANL) G No. 1 meter ECU (V bus)
      L97-9 (CANH) B Yaw rate sensor
      L97-20 (CANL) W Yaw rate sensor
      L97-8 (CANH) R Steering angle sensor
      L97-19 (CANL) W Steering angle sensor
      L97-1 (CANH) R No. 3 junction connector
      L97-12 (CANL) G No. 3 junction connector
      L97-10 (CANH) B No. 4 junction connector
      L97-21 (CANL) W No. 4 junction connector
    3. NO. 3 JUNCTION CONNECTOR
      Fig 3: Identifying No. 3 Junction Connector
      G06198422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

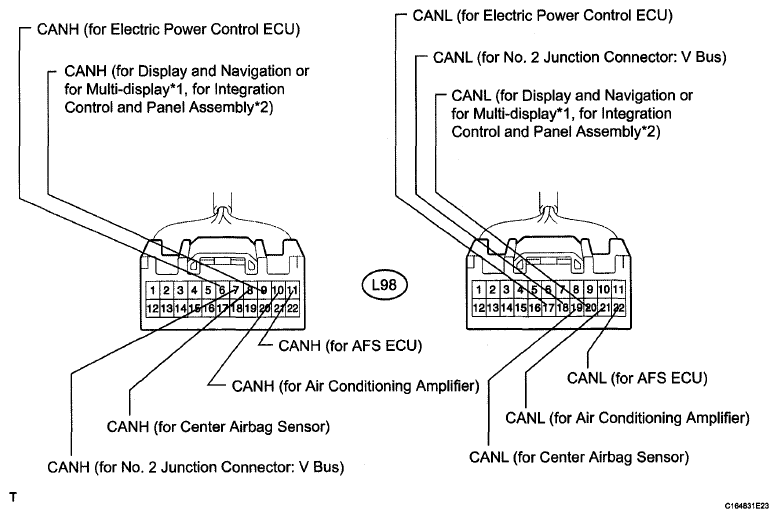

      WIRING COLOR SPECIFICATION

      No. 3 Junction Connector Wiring Color Connect to
      L98-7 (CANH) R No. 2 junction connector (V bus)
      L98-18 (CANL) G No. 2 junction connector (V bus)
      L98-10 (CANH) R Air conditioning amplifier
      L98-21 (CANL) G Air conditioning amplifier
      L98-11 (CANH) R AFS ECU
      L98-22 (CANL) G AFS ECU
      L98-6 (CANH) R Electric power control ECU
      L98-17 (CANL) G Electric power control ECU
      L98-9 (CANH)*1 R Display and navigation (Multi-display)
      L98-20 (CANL)*1 G Display and navigation (Multi-display)
      L98-9 (CANH)*2 R Integration control and panel assembly
      L98-20 (CANL)*2 G Integration control and panel assembly
      L98-8 (CANH) R Center airbag sensor
      L98-19 (CANL) G Center airbag sensor
      HINT:
      *1: w/ Multi-display
      *2: w/o Multi-display
    4. NO. 4 JUNCTION CONNECTOR
      Fig 4: Identifying No. 4 Junction Connector
      G06198423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

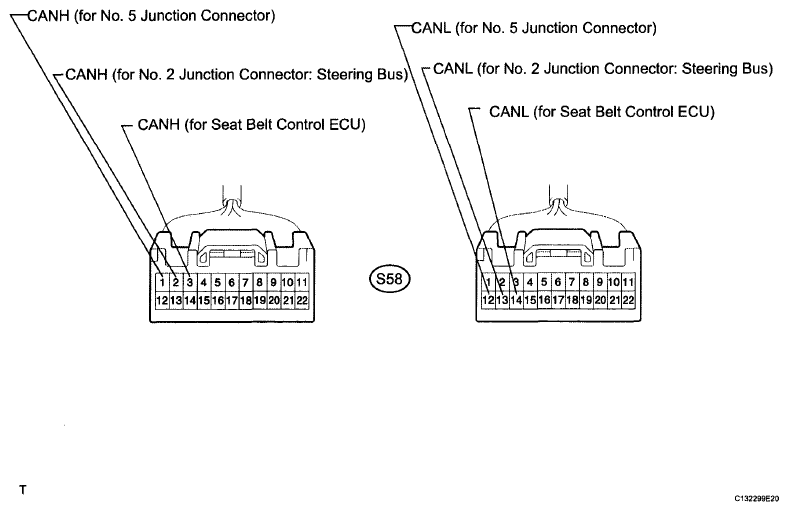

      WIRING COLOR SPECIFICATION

      No. 4 Junction Connector Wiring Color Connect to
      S58-2 (CANH) B No. 2 junction connector (Steering bus)
      S58-13 (CANL) W No. 2 junction connector (Steering bus)
      S58-3 (CANH) B Seat belt control ECU
      S58-14 (CANL) W Seat belt control ECU
      S58-1 (CANH) B No. 5 junction connector
      S58-12 (CANL) W No. 5 junction connector

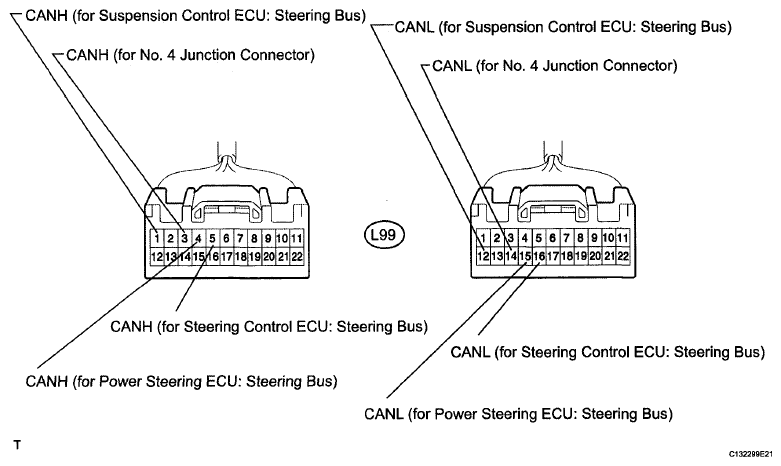

    5. NO. 5 JUNCTION CONNECTOR
      Fig 5: Identifying No. 5 Junction Connector
      G06198424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 5 Junction Connector Wiring Color Connect to
      L99-3 (CANH) B No. 4 junction connector
      L99-14 (CANL) W No. 4 junction connector
      L99-1 (CANH) B Suspension control ECU (Steering bus)
      L99-12 (CANL) W Suspension control ECU (Steering bus)
      L99-5 (CANH) B Steering control ECU (Steering bus)
      L99-16 (CANL) W Steering control ECU (Steering bus)
      L99-4 (CANH) B Power steering ECU (Steering bus)
      L99-15 (CANL) W Power steering ECU (Steering bus)
    6. NO. 6 JUNCTION CONNECTOR

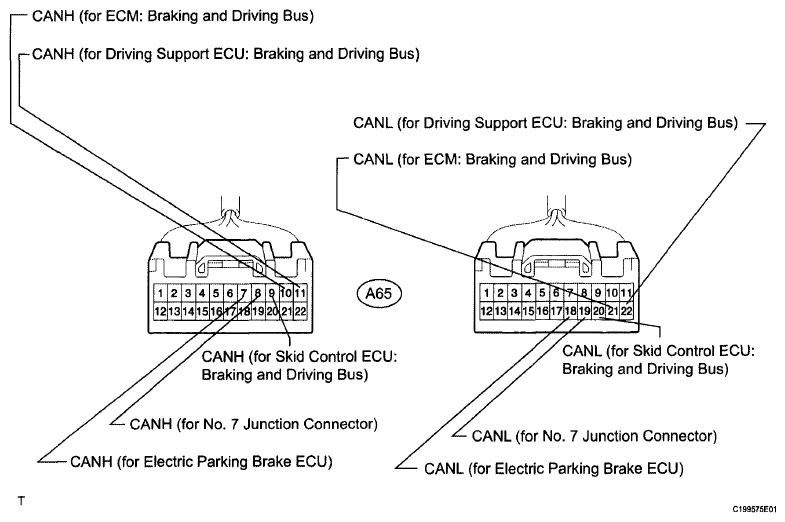

      Fig 6: Identifying No. 6 Junction Connector
      G06198425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 6 Junction Connector Wiring Color Connect to
      A65-9 (CANH) B Skid control ECU (Braking and Driving bus)
      A65-20 (CANL) W Skid control ECU (Braking and Driving bus)
      A65-10 (CANH) B ECM (Braking and Driving bus)
      A65-21 (CANL) W ECM (Braking and Driving bus)
      A65-11 (CANH) B Driving support ECU (Braking and Driving bus)
      A65-22 (CANL) W Driving support ECU (Braking and Driving bus)
      A65-7 (CANH) B Electric parking brake ECU
      A65-18 (CANL) W Electric parking brake ECU
      A65-8 (CANH) B No. 7 junction connector
      A65-19 (CANL) W No. 7 junction connector
    7. NO. 7 JUNCTION CONNECTOR
      Fig 7: Identifying No. 7 Junction Connector
      G06198426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 7 Junction Connector Wiring Color Connect to

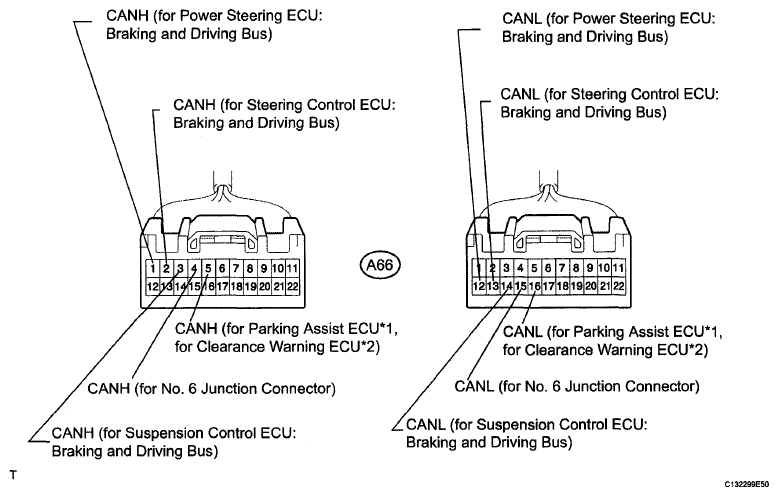

      A66-4 (CANH) B No. 6 Junction Connector
      A66-15 (CANL) W No. 6 Junction Connector
      A66-5 (CANH)*1 B Parking assist ECU
      A66-16 (CANL)*1 W Parking assist ECU
      A66-5 (CANH)*2 B Clearance warning ECU
      A66-16 (CANL)*2 W Clearance warning ECU
      A66-3 (CANH) B Suspension control ECU (Braking and Driving bus)
      A66-14 (CANL) W Suspension control ECU (Braking and Driving bus)
      A66-2 (CANH) B Steering control ECU (Braking and Driving bus)
      A66-13 (CANL) W Steering control ECU (Braking and Driving bus)
      A66-1 (CANH) B Power steering ECU (Braking and Driving bus)
      A66-12 (CANL) W Power steering ECU (Braking and Driving bus)
      HINT:
      *1: w/Advanced parking guidance system and intuitive parking assist system
      *2: w/ Intuitive parking assist system
    8. NO. 8 JUNCTION CONNECTOR
      Fig 8: Identifying No. 8 Junction Connector
      G06198427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 8 Junction Connector Wiring Color Connect to

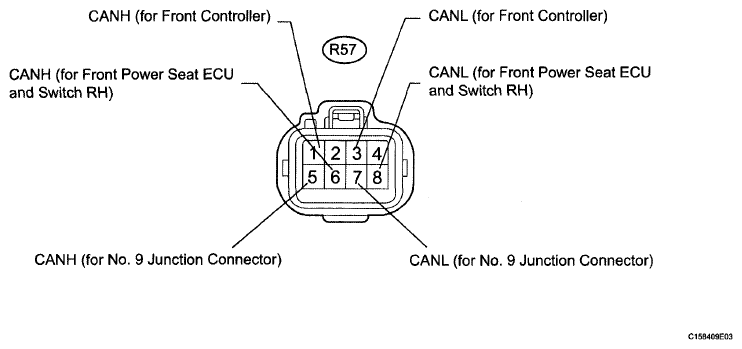

      R57-1 (CANH) B Front controller
      R57-3 (CANL) W Front controller
      R57-6 (CANH) R Front power seat ECU and switch RH
      R57-8 (CANL) W Front power seat ECU and switch RH
      R57-5 (CANH) B No. 9 junction connector
      R57-7 (CANL) W No. 9 junction connector
    9. NO. 9 JUNCTION CONNECTOR

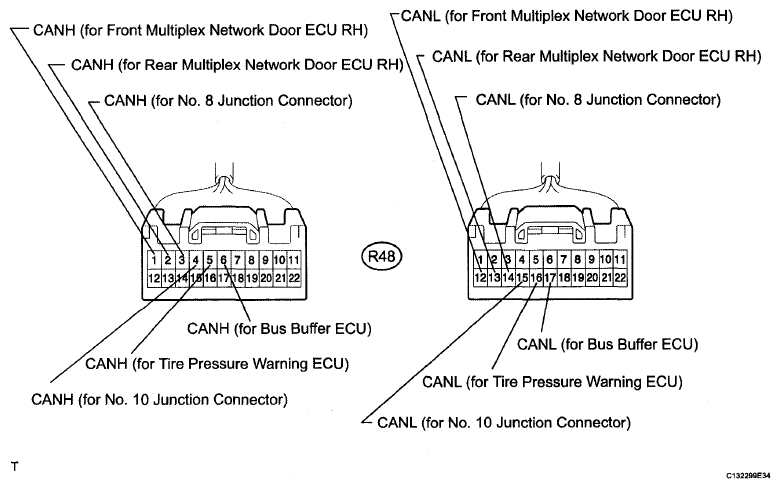

      Fig 9: Identifying No. 9 Junction Connector
      G06198428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 9 Junction Connector Wiring Color Connect to
      R48-3 (CANH) B No. 8 Junction Connector
      R48-14 (CANL) W No. 8 Junction Connector
      R48-6 (CANH) B Bus buffer ECU
      R48-17 (CANL) W Bus buffer ECU
      R48-2 (CANH) R Rear multiplex network door ECU RH
      R48-13 (CANL) W Rear multiplex network door ECU RH
      R48-5 (CANH) B Tire pressure warning ECU
      R48-16 (CANL) W Tire pressure warning ECU
      R48-1 (CANH) R Front multiplex network door ECU RH
      R48-12 (CANL) W Front multiplex network door ECU RH
      R48-4 (CANH) B No. 10 junction connector
      R48-15 (CANL) W No. 10 junction connector
    10. NO. 10 JUNCTION CONNECTOR
      Fig 10: Identifying No. 10 Junction Connector
      G06198429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 10 Junction Connector Wiring Color Connect to
      L95-11 (CANH) B No. 9 Junction Connector
      L95-22 (CANL) W No. 9 Junction Connector
      L95-3 (CANH) B Main body ECU (MS bus)
      L95-14 (CANL) W Main body ECU (MS bus)
      L95-8 (CANH) R Combination switch
      L95-19 (CANL) W Combination switch
      L95-10 (CANH) B Outer mirror switch
      L95-21 (CANL) W Outer mirror switch
      L95-6 (CANH) B Multiplex tilt and telescopic ECU
      L95-17 (CANL) W Multiplex tilt and telescopic ECU
      L95-9 (CANH) R Steering pad ECU
      L95-20 (CANL) W Steering pad ECU
      L95-5 (CANH) B Certification ECU
      L95-16 (CANL) W Certification ECU
      L95-7 (CANH) B No. 1 meter ECU (MS bus)
      L95-18 (CANL) W No. 1 meter ECU (MS bus)
      L95-4 (CANH) B No. 11 junction connector
      L95-15 (CANL) W No. 11 junction connector
    11. NO. 11 JUNCTION CONNECTOR

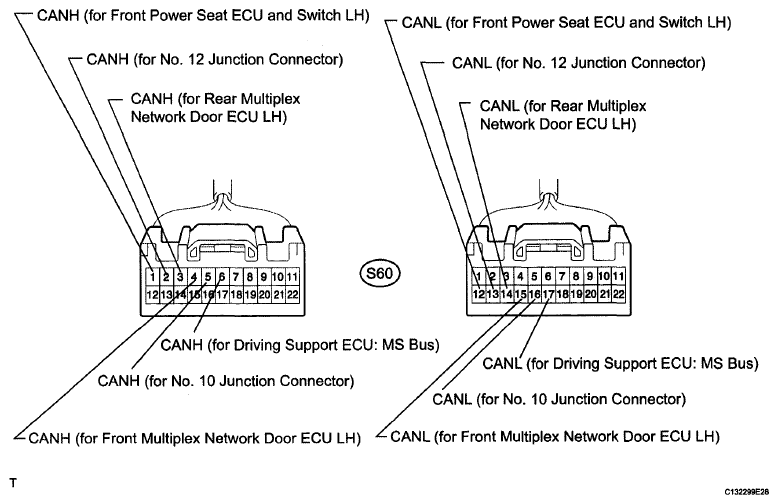

      Fig 11: Identifying NO 11 Junction Connector Terminals

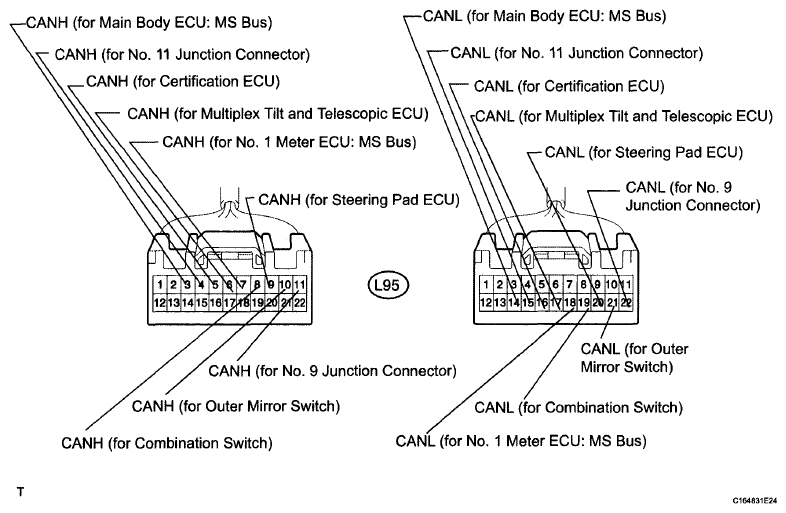

      G06198430Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 11 Junction Connector Wiring Color Connect to
      S60-5 (CANH) B No. 10 Junction Connector
      S60-16 (CANL) W No. 10 Junction Connector
      S60-6 (CANH) B Driving support ECU (MS bus)
      S60-17 (CANL) W Driving support ECU (MS bus)
      S60-4 (CANH) R Front multiplex network door ECU LH
      S60-15 (CANL) W Front multiplex network door ECU LH
      S60-3 (CANH) R Rear multiplex network door ECU LH
      S60-14 (CANL) W Rear multiplex network door ECU LH
      S60-1 (CANH) R Front power seat ECU and switch LH
      S60-12 (CANL) W Front power seat ECU and switch LH
      S60-2 (CANH) B No. 12 junction connector
      S60-13 (CANL) W No. 12 junction connector

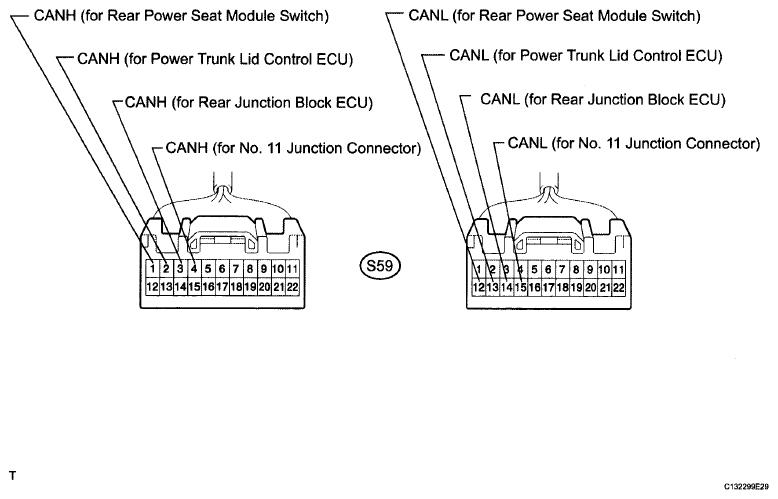

    12. NO. 12 JUNCTION CONNECTOR
      Fig 12: Identifying No. 12 Junction Connector
      G06198431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      No. 12 Junction Connector Wiring Color Connect to
      S59-4 (CANH) B No. 11 junction connector
      S59-15 (CANL) W No. 11 junction connector
      S59-2 (CANH) B Power trunk lid control ECU
      S59-13 (CANL) W Power trunk lid control ECU
      S59-1 (CANH) B Rear power seat module switch
      S59-12 (CANL) W Rear power seat module switch
      S59-3 (CANH) B Rear junction block ECU
      S59-14 (CANL) W Rear junction block ECU
    13. NO. 13 JUNCTION CONNECTOR
      Fig 13: Identifying No. 13 Junction Connector
      G06198432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

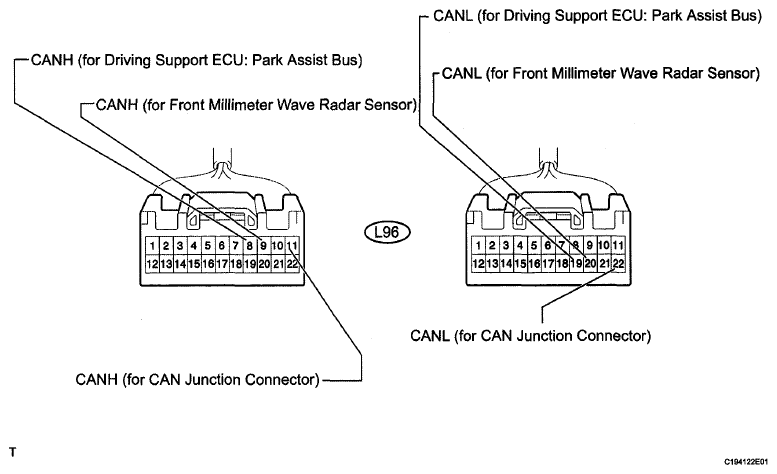

      No. 13 Junction Connector Wiring Color Connect to
      L96-9 (CANH) B Front millimeter wave radar sensor
      L96-20 (CANL) W Front millimeter wave radar sensor
      L96-8 (CANH) B Driving support ECU (Park Assist bus)
      L96-19 (CANL) W Driving support ECU (Park Assist bus)
      L96-11 (CANH) B CAN junction connector
      L96-22 (CANL) W CAN junction connector
    14. CAN JUNCTION CONNECTOR

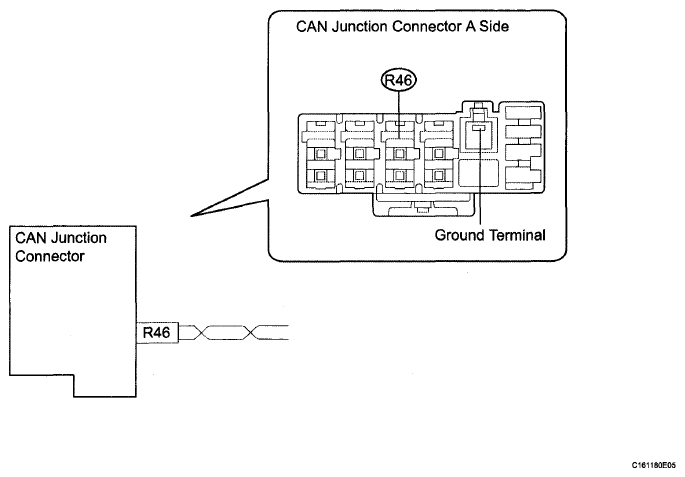

      Fig 14: Identifying CAN Junction Connector
      G06198433Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      WIRING COLOR SPECIFICATION

      Junction Connector A side Wiring Color (CANH Side) Wiring Color (CANL Side)
      No. 13 junction connector (R46) B W

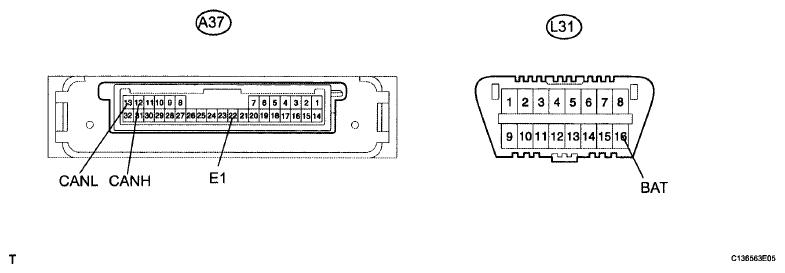

  3. TERMINALS OF CONNECTORS FOR JUNCTION CONNECTOR (CAN JUNCTION CONNECTOR)
    CONNECTOR TERMINAL SYMBOLS CHART

    Terminal No. Symbols
    1 CANH
    2 CANL

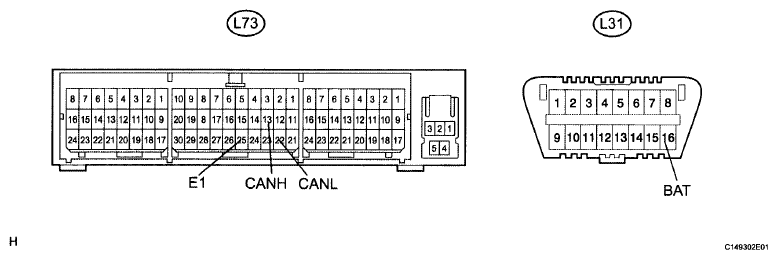

  4. CHECK DLC3
    1. Disconnect the cable from the negative (-) battery terminal before measuring the resistances of the main wire and the branch wire.
      NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (see INITIALIZATION ).
      Fig 15: Identifying Junction Connector
      G06198434Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

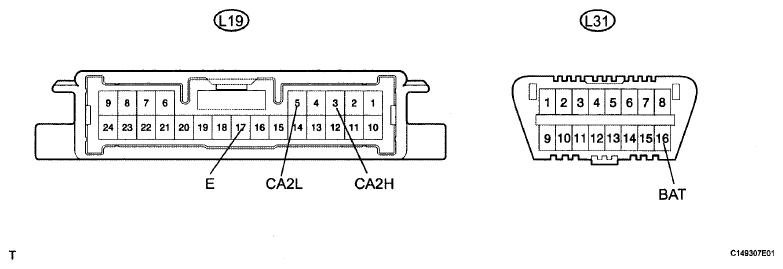

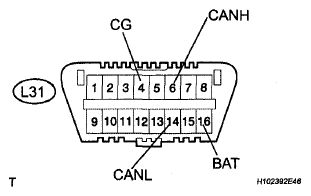

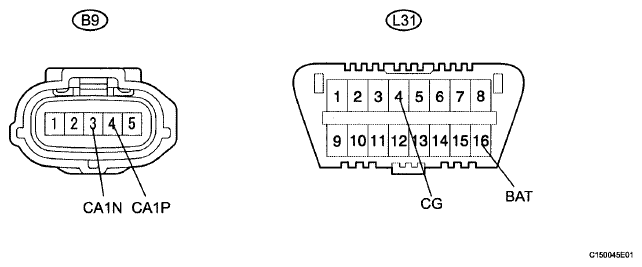

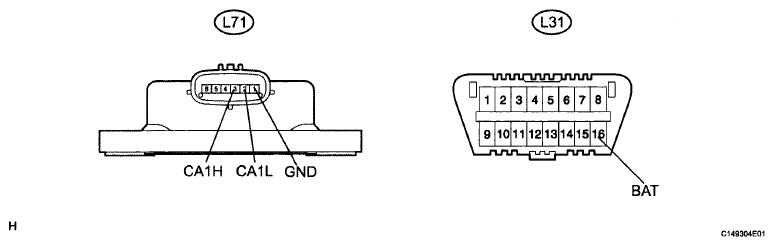

      Fig 16: Identifying L31 Connector Terminals
      G06198435Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L31-6 (CANH) - L31-14 (CANL) R - G Engine switch off 54 to 69 Ω
      L31-6 (CANH) - L31-4 (CG) R - W-B Engine switch off 200 Ω or higher
      L31-14 (CANL) - L31-4 (CG) G - W-B Engine switch off 200 Ω or higher
      L31-6 (CANH) - L31-16 (BAT) R - B Engine switch off 6 kΩ or higher
      L31-14 (CANL) - L31-16 (BAT) G - B Engine switch off 6 kΩ or higher
  5. CHECK SKID CONTROL ECU
    1. Disconnect the A19 and A21 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.

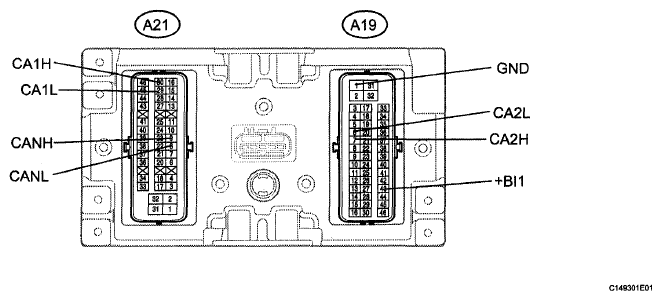

      Fig 17: Identifying A19 And A21 ECU Connectors Terminals
      G06198436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A21-9 (CANH) - A21-8 (CANL)*1 R - G Engine switch off 54 to 69 Ω
      A21-9 (CANH) - A19-1 (GND)*1 R - W-B Engine switch off 200 Ω or higher
      A21-8 (CANL) - A19-1 (GND)*1 G - W-B Engine switch off 200 Ω or higher
      A21-9 (CANH) - A19-43 (+BI1)*1 R - B Engine switch off 6 kΩ or higher
      A21-8 (CANL) - A19-43 (+BI1)*1 G - B Engine switch off 6 kΩ or higher
      A21-30 (CA1H) - A21-29 (CA1L)*2 B - W Engine switch off 54 to 69 Ω
      A21-30 (CA1H) - A19-1 (GND)*2 B - W-B Engine switch off 200 Ω or higher
      A21-29 (CA1L) - A19-1 (GND)*2 W - W-B Engine switch off 200 Ω or higher
      A21-30 (CA1H) - A19-43 (+BI1)*2 B - B Engine switch off 6 kΩ or higher
      A21-29 (CA1L) - A19-43 (+B11)*2 W - B Engine switch off 6 kΩ or higher
      A19-7 (CA2H) - A19-6 (CA2L)*3 B - W Engine switch off 54 to 69 Ω
      A19-7 (CA2H) - A19-1 (GND)*3 B - W-B Engine switch off 200 Ω or higher
      A19-6 (CA2L) - A19-1 (GND)*3 W - W-B Engine switch off 200 Ω or higher
      A19-7 (CA2H) - A19-43 (+BI1)*3 B - B Engine switch off 6 kΩ or higher
      A19-6 (CA2L) - A19-43 (+BI1)*3 W - B Engine switch off 6 kΩ or higher
      HINT:
      *1: for V bus
      *2: for Steering bus
      *3: for Braking and Driving bus
  6. CHECK AIR CONDITIONING AMPLIFIER

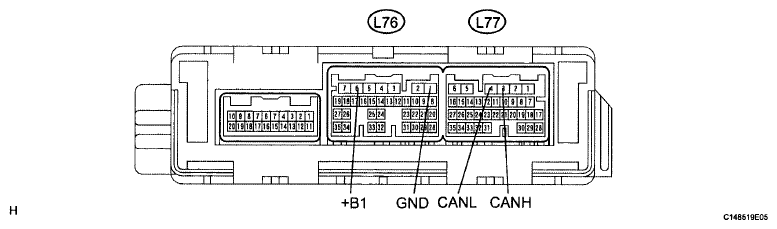

    Fig 18: Identifying L76 And L77 Amplifier Connectors Terminals
    G06198437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L76 and L77 amplifier connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L77-3 (CANH) - L77-4 (CANL) R - G Engine switch off 54 to 69 Ω
      L77-3 (CANH) - L76-1 (GND) R - W-B Engine switch off 200 Ω or higher
      L77-4 (CANL) - L76-1 (GND) G - W-B Engine switch off 200 Ω or higher
      L77-3 (CANH) - L76-6 (+B1) R - L Engine switch off 6 kΩ or higher
      L77-4 (CANL) - L76-6 (+B1) G - L Engine switch off 6 kΩ or higher
  7. CHECK ECM

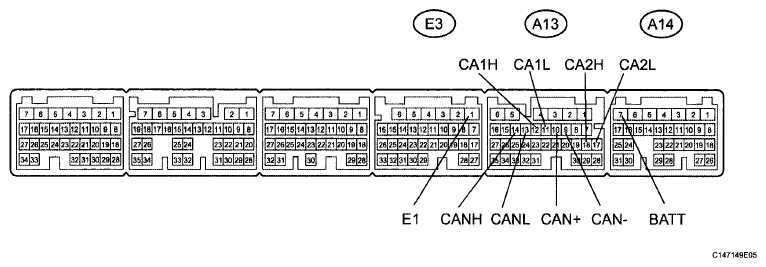

    Fig 19: Identifying A13, A14 And E3 ECM Connectors Terminals
    G06198438Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A13, A14 and E3 ECM connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A13-14 (CANH) - A13-13 (CANL)*1 R - G Engine switch off 108 to 132 Ω
      A13-14 (CANH) - E3-1 (E1)*1 R - W-B Engine switch off 200 Ω or higher
      A13-13 (CANL) - E3-1 (E1)*1 G - W-B Engine switch off 200 Ω or higher
      A13-14 (CANH) - A14-7 (BATT)*1 R - B Engine switch off 6 kΩ or higher
      A13-13 (CANL) - A14-7 (BATT)*1 G - B Engine switch off 6 kΩ or higher
      A13-12 (CA1H) - A13-11 (CA1L)*2 B - W Engine switch off 108 to 132 Ω
      A13-12 (CA1H) - E3-1 (E1)*2 B - W-B Engine switch off 200 Ω or higher
      A13-11 (CA1L) - E3-1 (E1)*2 W - W-B Engine switch off 200 Ω or higher
      A13-12 (CA1H) - A14-7 (BATT)*2 B - B Engine switch off 6 kΩ or higher
      A13-11 (CA1L) - A14-7 (BATT)*2 W - B Engine switch off 6 kΩ or higher
      A13-18 (CA2H) - A13-17 (CA2L)*3 B - W Engine switch off 54 to 69 Ω
      A13-18 (CA2H) - E3-1 (E1)*3 B - W-B Engine switch off 200 Ω or higher
      A13-17 (CA2L) - E3-1 (E1)*3 W - W-B Engine switch off 200 Ω or higher
      A13-18 (CA2H) - A14-7 (BATT)*3 B - B Engine switch off 6 kΩ or higher
      A13-17 (CA2L) - A14-7 (BATT)*3 W - B Engine switch off 6 kΩ or higher
      A13-10 (CAN+) - A13-9 (CAN-)*4 B - W Engine switch off 108 to 132 Ω
      A13-10 (CAN+) - E3-1 (E1)*4 B - W-B Engine switch off 200 Ω or higher
      A13-9 (CAN-) - E3-1 (E1)*4 W - W-B Engine switch off 200 Ω or higher
      A13-10 (CAN+) - A14-7 (BATT)*4 B - B Engine switch off 6 kΩ or higher
      A13-9 (CAN-) - A14-7 (BATT)*4 W - B Engine switch off 6 kΩ or higher
      HINT:
      *1: for V bus
      *2: for Steering bus
      *3: for Braking and Driving bus
      *4: for Powertrain bus
  8. CHECK MAIN BODY ECU

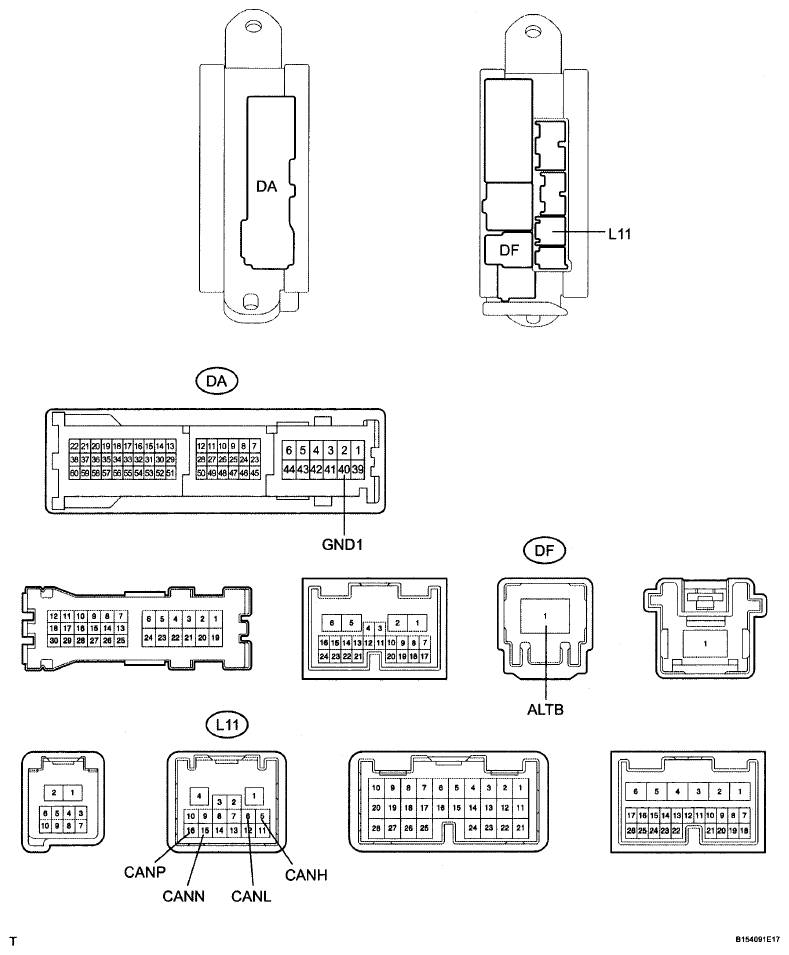

    Fig 20: Main Body ECU Connector Chart
    G06198439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L11 ECU connector.
    2. Disconnect the DA and DF ECU connectors.
    3. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L11-5 (CANH) - L11-6 (CANL)*1 R - G Engine switch off 54 to 69 Ω
      L11-5 (CANH) - DA-40 (GND1)*1 R - W-B Engine switch off 200 Ω or higher
      L11-6 (CANL) - DA-40 (GND1)*1 G - W-B Engine switch off 200 Ω or higher
      L11-5 (CANH) - DF-1 (ALTB)*1 R - B Engine switch off 6 kΩ or higher
      L11-6 (CANL) - DF-1 (ALTB)*1 G - B Engine switch off 6 kΩ or higher
      L11-16 (CANP) - L11-15 (CANN)*2 B - W Engine switch off 54 to 69 Ω
      L11-16 (CANP) - DA-40 (GND1)*2 B - W-B Engine switch off 200 Ω or higher
      L11-15 (CANN) - DA-40 (GND1)*2 W - W-B Engine switch off 200 Ω or higher
      L11-16 (CANP) - DF-1 (ALTB)*2 B - B Engine switch off 6 kΩ or higher
      L11-15 (CANN) - DF-1 (ALTB)*2 W - B Engine switch off 6 kΩ or higher
      HINT:
      *1: for V bus
      *2: for MS bus
  9. CHECK NO. 1 METER ECU

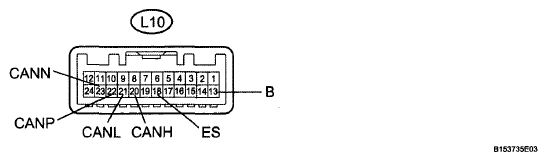

    Fig 21: Identifying L10 ECU Connector Terminals
    G06198440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L10 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L10-20 (CANH) - L10-21 (CANL)*1 R - G Engine switch off 54 to 69 Ω
      L10-20 (CANH) - L10-18 (ES)*1 R - BR Engine switch off 200 Ω or higher
      L10-21 (CANL) - L10-18 (ES)*1 G - BR Engine switch off 200 Ω or higher
      L10-20 (CANH) - L10-13 (B)*1 R - B Engine switch off 6 kΩ or higher
      L10-21 (CANL) - L10-13 (B)*1 G - B Engine switch off 6 kΩ or higher
      L10-22 (CANP) - L10-23 (CANN)*2 B - W Engine switch off 54 to 69 Ω
      L10-22 (CANP) - L10-18 (ES)*2 B - BR Engine switch off 200 Ω or higher
      L10-23 (CANN) - L10-18 (ES)*2 W - BR Engine switch off 200 Ω or higher
      L10-22 (CANP) - L10-13 (B)*2 B - B Engine switch off 6 kΩ or higher
      L10-23 (CANN) - L10-13 (B)*2 W - B Engine switch off 6 kΩ or higher
      HINT:
      *1: for V bus
      *2: for MS bus
  10. CHECK CENTER AIRBAG SENSOR
    Fig 22: Identifying L73 Sensor Connector Terminals
    G06198441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L73 sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L73-13 (CANH) - L73-22 (CANL) R - G Engine switch off 108 to 132 Ω
      L73-13 (CANH) - L73-25 (E1) R - W-B Engine switch off 200 Ω or higher
      L73-22 (CANL) - L73-25 (E1) G - W-B Engine switch off 200 Ω or higher
      L73-13 (CANH) - L31-16 (BAT) R - B Engine switch off 6 kΩ or higher
      L73-22 (CANL) - L31-16 (BAT) G - B Engine switch off 6 kΩ or higher
  11. CHECK ELECTRIC POWER CONTROL ECU

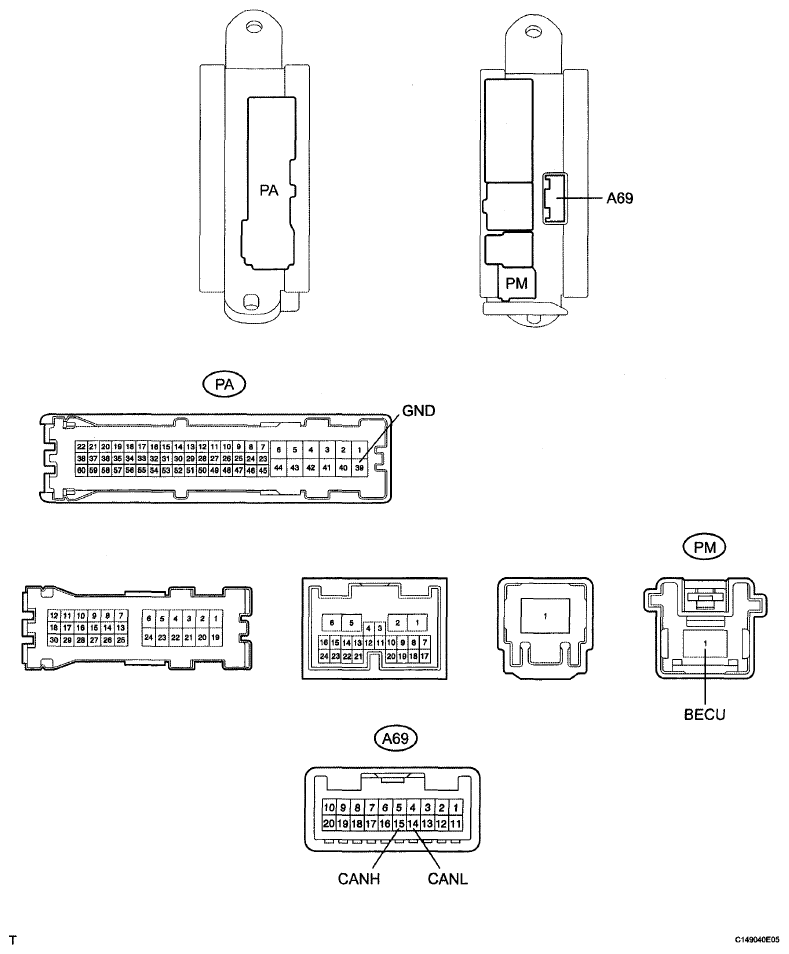

    Fig 23: Identifying Electric Power Control ECU Connectors Terminals
    G06198442Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A69 ECU connector.
    2. Disconnect the PA and PM ECU connectors.
    3. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A69-15 (CANH) - A69-14 (CANL) R-G Engine switch off 54 to 69 Ω
      A69-15 (CANH) - PA-39 (GND) R - W-B Engine switch off 200 Ω or higher
      A69-14 (CANL) - PA-39 (GND) G - W-B Engine switch off 200 Ω or higher
      A69-15 (CANH) - PM-1 (BECU) R-L Engine switch off 6 kΩ or higher
      A69-14 (CANL) - PM-1 (BECU) G-L Engine switch off 6 kΩ or higher
  12. CHECK AFS ECU
    Fig 24: Identifying A37 ECU Connector Terminal
    G06198443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A37 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A37-12 (CANH) - A37-13 (CANL) R - G Engine switch off 54 to 69 Ω
      A37-12 (CANH) - A37-22 (E1) R - W-B Engine switch off 200 Ω or higher
      A37-13 (CANL) - A37-22 (E1) G - W-B Engine switch off 200 Ω or higher
      A37-12 (CANH) - L31-16 (BAT) R - B Engine switch off 6 kΩ or higher
      A37-13 (CANL) - L31-16 (BAT) G - B Engine switch off 6 kΩ or higher
  13. CHECK DISPLAY AND NAVIGATION (MULTI-DISPLAY)

    HINT:

    For vehicles with multi-display only.

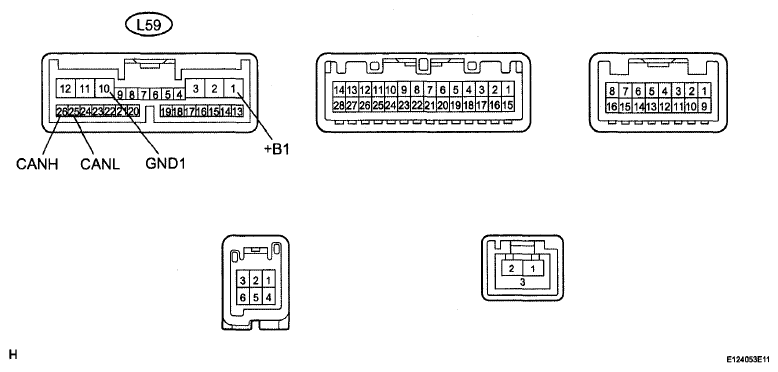

    Fig 25: Identifying L59 Display And Navigation Connector Terminals
    G06198444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L59 display and navigation (multi-display) connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L59-26 (CANH) - L59-25 (CANL) R - G Engine switch off 54 to 69 Ω
      L59-26 (CANH) - L59-10 (GND1) R - W-B Engine switch off 200 Ω or higher
      L59-25 (CANL) - L59-10 (GND1) G - W-B Engine switch off 200 Ω or higher
      L59-26 (CANH) - L59-1 (+B1) R - R Engine switch off 6 kΩ or higher
      L59-25 (CANL) - L59-1 (+B1) G - R Engine switch off 6 kΩ or higher
  14. CHECK INTEGRATION CONTROL AND PANEL ASSEMBLY

    HINT:

    For vehicles without multi-display only.

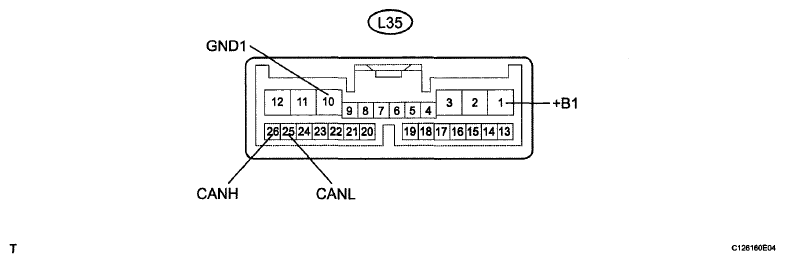

    Fig 26: Identifying L35 Panel Assembly Connector Terminal
    G06198445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L35 panel assembly connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L35-26 (CANH) - L35-25 (CANL) R - G Engine switch off 54 to 69 Ω
      L35-26 (CANH) - L35-10 (GND1) R - W-B Engine switch off 200 Ω or higher
      L35-25 (CANL) - L35-10 (GND1) G - W-B Engine switch off 200 Ω or higher
      L35-26 (CANH) - L35-1 (+B1) R - R Engine switch off 6 kΩ or higher
      L35-25 (CANL) - L35-1 (+B1) G - R Engine switch off 6 kΩ or higher
  15. CHECK STEERING ANGLE SENSOR

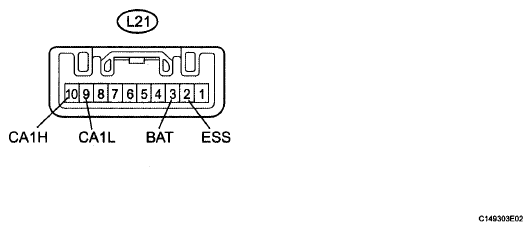

    Fig 27: Identifying L21 Sensor Connector Terminals
    G06198446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L21 sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L21-10 (CA1H) - L21-9 (CA1L) R - W Engine switch off 54 to 69 Ω
      L21-10 (CA1H) - L21-2 (ESS) R - W-B Engine switch off 200 Ω or higher
      L21-9 (CA1L) - L21-2 (ESS) W - W-B Engine switch off 200 Ω or higher
      L21-10 (CA1H) - L21-3 (BAT) R-R Engine switch off 6 kΩ or higher
      L21-9 (CA1L) - L21-3 (BAT) W - R Engine switch off 6 kΩ or higher
  16. CHECK YAW RATE SENSOR
    Fig 28: Identifying L71 Sensor Connector Terminals
    G06198447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L71 sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L71-3 (CA1H) - L71-2 (CA1L) B - W Engine switch off 54 to 69 Ω
      L71-3 (CA1H) - L71-1 (GND) B - W-B Engine switch off 200 Ω or higher
      L71-2 (CA1L) - L71-1 (GND) W - W-B Engine switch off 200 Ω or higher
      L71-3 (CA1H) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      L71-2 (CA1L) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  17. CHECK POWER STEERING ECU

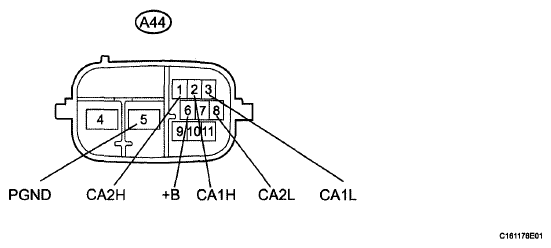

    Fig 29: Identifying A44 ECU Connector Terminal
    G06198448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A44 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A44-2 (CA1H) - A44-3 (CA1L)*1 B - W Engine switch off 108 to 132 Ω
      A44-2 (CA1H) - A44-5 (PGND)*1 B - W-B Engine switch off 200 Ω or higher
      A44-3 (CA1L) - A44-5 (PGND)*1 W - W-B Engine switch off 200 Ω or higher
      A44-2 (CA1H) - A44-6 (+B)*1 B - R Engine switch off 6 kΩ or higher
      A44-3 (CA1L) - A44-6 (+B)*1 W - R Engine switch off 6 kΩ or higher
      A44-1 (CA2H) - A44-8 (CA2L)*2 B - W Engine switch off 108 to 132 Ω
      A44-1 (CA2H) - A44-5 (PGND)*2 B - W-B Engine switch off 200 Ω or higher
      A44-8 (CA2L) - A44-5 (PGND)*2 W - W-B Engine switch off 200 Ω or higher
      A44-1 (CA2H) - A44-6 (+B)*2 B - R Engine switch off 6 kΩ or higher
      A44-8 (CA2L) - A44-6 (+B)*2 W - R Engine switch off 6 kΩ or higher
      HINT:
      *1: for Steering bus
      *2: for Braking and Driving bus
  18. CHECK STEERING CONTROL ECU

    HINT:

    For vehicles with variable gear ratio steering system only.

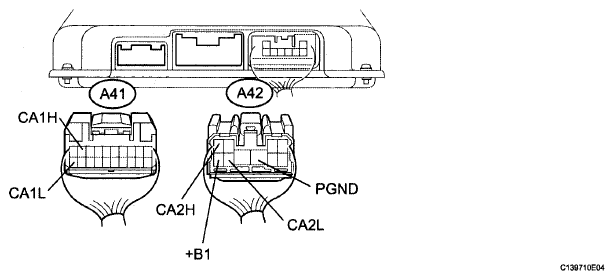

    Fig 30: Identifying A41 And A42 ECU Connectors Terminals
    G06198449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A41 and A42 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A41-9 (CA1H) - A41-20 (CA1L)*1 B - W Engine switch off 54 to 69 Ω
      A41-9 (CA1H) - A42-7 (PGND)*1 B - W-B Engine switch off 200 Ω or higher
      A41-20 (CA1L) - A42-7 (PGND)*1 W - W-B Engine switch off 200 Ω or higher
      A41-9 (CA1H) - A42-10 (+B1)*1 B - R Engine switch off 6 kΩ or higher
      A41-20 (CA1L) - A42-10 (+B1)*1 W - R Engine switch off 6 kΩ or higher
      A42-4 (CA2H) - A42-9 (CA2L)*2 B - W Engine switch off 54 to 69 Ω
      A42-4 (CA2H) - A42-7 (PGND)*2 B - W-B Engine switch off 200 Ω or higher
      A42-9 (CA2L) - A42-7 (PGND)*2 W - W-B Engine switch off 200 Ω or higher
      A42-4 (CA2H) - A42-10 (+B1)*2 B - R Engine switch off 6 kΩ or higher
      A42-9 (CA2L) - A42-10 (+B1)*2 W - R Engine switch off 6 kΩ or higher
      HINT:
      *1: for Steering bus
      *2: for Braking and Driving bus
  19. CHECK SUSPENSION CONTROL ECU

    HINT:

    For vehicles with air suspension system only.

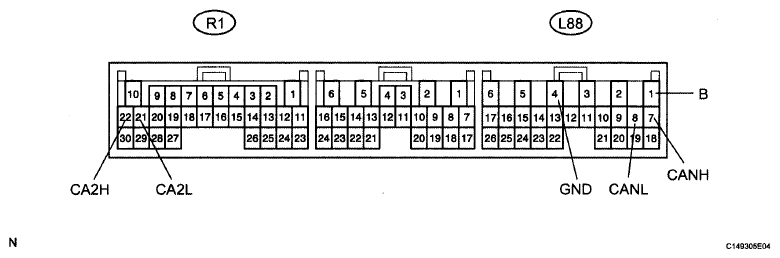

    Fig 31: Identifying R1 And L88 ECU Connector Terminals
    G06198450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L88 and R1 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L88-7 (CANH) - L88-8 (CANL)*1 B - W Engine switch off 54 to 69 Ω
      L88-7 (CANH) - L88-4 (GND)*1 B - W-B Engine switch off 200 Ω or higher
      L88-8 (CANL) - L88-4 (GND)*1 W - W-B Engine switch off 200 Ω or higher
      L88-7 (CANH) - L88-1 (B)*1 B - W Engine switch off 6 kΩ or higher
      L88-8 (CANL) - L88-1 (B)*1 W - W Engine switch off 6 kΩ or higher
      R1-22 (CA2H) - R1-21 (CA2L)*2 B - W Engine switch off 54 to 69 Ω
      R1-22 (CA2H) - L88-4 (GND)*2 B - W-B Engine switch off 200 Ω or higher
      R1-21 (CA2L) - L88-4 (GND)*2 W - W-B Engine switch off 200 Ω or higher
      R1-22 (CA2H) - L88-1 (B)*2 B - W Engine switch off 6 kΩ or higher
      R1-21 (CA2L) - L88-1 (B)*2 W - W Engine switch off 6 kΩ or higher
      HINT:
      *1: for Steering bus
      *2: for Braking and Driving bus
  20. CHECK SEAT BELT CONTROL ECU

    HINT:

    For vehicles with pre-collision system only.

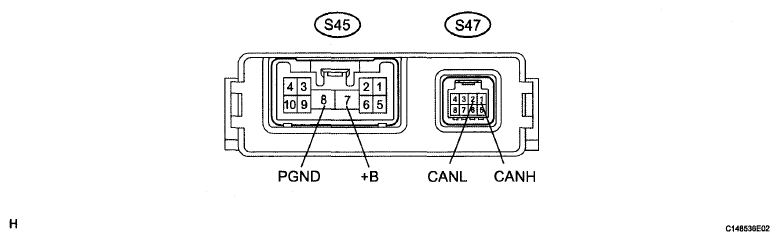

    Fig 32: Identifying S45 And S47 ECU Connector Terminals
    G06198451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S45 and S47 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S47-1 (CANH) - S47-2 (CANL) B - W Engine switch off 54 to 69 Ω
      S47-1 (CANH) - S45-8 (PGND) B - W-B Engine switch off 200 Ω or higher
      S47-2 (CANL) - S45-8 (PGND) W - W-B Engine switch off 200 Ω or higher
      S47-1 (CANH) - S45-7 (+B) B - B Engine switch off 6 kΩ or higher
      S47-2 (CANL) - S45-7 (+B) W - B Engine switch off 6 kΩ or higher
  21. CHECK DRIVING SUPPORT ECU

    HINT:

    For vehicles with dynamic radar cruise control system or pre-collision system only.

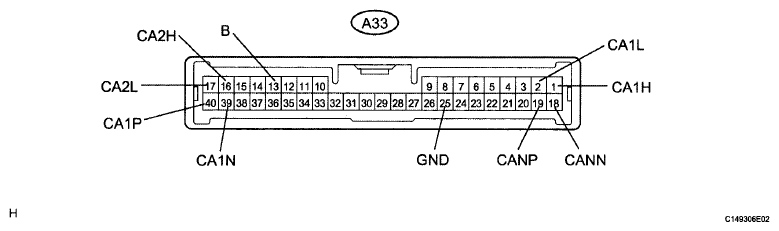

    Fig 33: Identifying A33 ECU Connector Terminals
    G06198452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A33 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A33-1 (CA1H) - A33-2 (CA1L)*1 B - W Engine switch off 54 to 69 Ω
      A33-1 (CA1H) - A33-25 (GND)*1 B - W-B Engine switch off 200 Ω or higher
      A33-2 (CA1L) - A33-25 (GND)*1 W - W-B Engine switch off 200 Ω or higher
      A33-1 (CA1H) - A33-13 (B)*1 B - Y Engine switch off 6 kΩ or higher
      A33-2 (CA1L) - A33-13 (B)*1 W - Y Engine switch off 6 kΩ or higher
      A33-16 (CA2H) - A33-17 (CA2L)*2 B - W Engine switch off 54 to 69 Ω
      A33-16 (CA2H) - A33-25 (GND)*2 B - W-B Engine switch off 200 Ω or higher
      A33-17 (CA2L) - A33-25 (GND)*2 W - W-B Engine switch off 200 Ω or higher
      A33-16 (CA2H) - A33-13 (B)*2 B - Y Engine switch off 6 kΩ or higher
      A33-17 (CA2L) - A33-13 (B)*2 W - Y Engine switch off 6 kΩ or higher
      A33-19 (CANP) - A33-18 (CANN)*3 B - W Engine switch off 54 to 69 Ω
      A33-19 (CANP) - A33-25 (GND)*3 B - W-B Engine switch off 200 Ω or higher
      A33-18 (CANN) - A33-25 (GND)*3 W - W-B Engine switch off 200 Ω or higher
      A33-19 (CANP) - A33-13 (B)*3 B - Y Engine switch off 6 kΩ or higher
      A33-18 (CANN) - A33-13 (B)*3 W - Y Engine switch off 6 kΩ or higher
      A33-40 (CA1P) - A33-39 (CA1N)*4 B - W Engine switch off 54 to 69 Ω
      A33-40 (CA1P) - A33-25 (GND)*4 B - W-B Engine switch off 200 Ω or higher
      A33-39 (CA1N) - A33-25 (GND)*4 W - W-B Engine switch off 200 Ω or higher
      A33-40 (CA1P) - A33-13 (B)*4 B - Y Engine switch off 6 kΩ or higher
      A33-39 (CA1N) - A33-13 (B)*4 W - Y Engine switch off 6 kΩ or higher
      HINT:
      *1: for Steering bus
      *2: for Braking and Driving bus
      *3: for MS bus
      *4: for Park Assist bus
  22. CHECK ELECTRIC PARKING BRAKE ECU

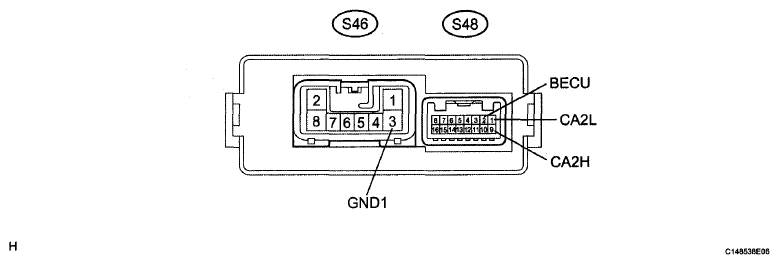

    Fig 34: Identifying S46 And S48 ECU Connector Terminal
    G06198453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S46 and S48 ECU connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S48-9 (CA2H) - S48-1 (CA2L) B - W Engine switch off 108 to 132 Ω
      S48-9 (CA2H) - S46-3 (GND1) B - W-B Engine switch off 200 Ω or higher
      S48-1 (CA2L) - S46-3 (GND1) W - W-B Engine switch off 200 Ω or higher
      S48-9 (CA2H) - S48-2 (BECU) B-BE Engine switch off 6 kΩ or higher
      S48-1 (CA2L) - S48-2 (BECU) W-BE Engine switch off 6 kΩ or higher
  23. CHECK PARKING ASSIST ECU

    HINT:

    For vehicles with advanced parking guidance system and intuitive parking assist system only.

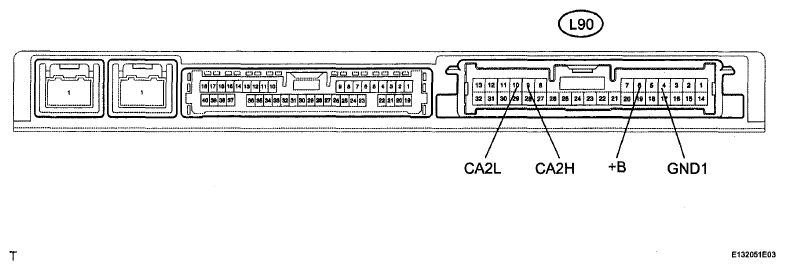

    Fig 35: Identifying L90 ECU Connector Terminals
    G06198454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L90 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L90-9 (CA2H) - L90-10 (CA2L) B - W Engine switch off 54 to 69 Ω
      L90-9 (CA2H) - L90-4 (GND1) B - W-B Engine switch off 200 Ω or higher
      L90-10 (CA2L) - L90-4 (GND1) W - W-B Engine switch off 200 Ω or higher
      L90-9 (CA2H) - L90-6 (+B) B - R Engine switch off 6 kΩ or higher
      L90-10 (CA2L) - L90-6 (+B) W - R Engine switch off 6 kΩ or higher
  24. CHECK CLEARANCE WARNING ECU

    HINT:

    For vehicles with intuitive parking assist system only.

    Fig 36: Identifying L19 ECU Connector Terminals
    G06198455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L19 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L19-3 (CA2H) - L19-5 (CA2L) B - W Engine switch off 54 to 69 Ω
      L19-3 (CA2H) - L19-17 (E) B - W-B Engine switch off 200 Ω or higher
      L19-5 (CA2L) - L19-17 (E) W - W-B Engine switch off 200 Ω or higher
      L19-3 (CA2H) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      L19-5 (CA2L) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  25. CHECK FRONT CONTROLLER

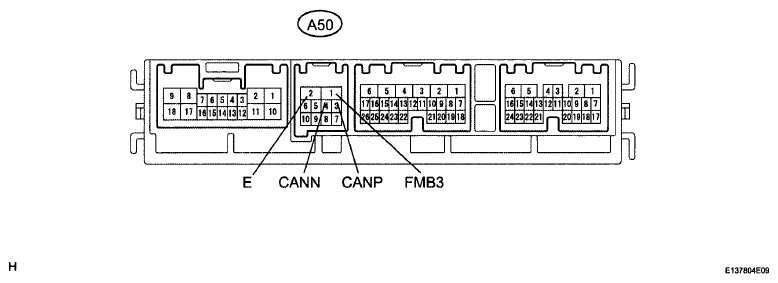

    Fig 37: Identifying A50 Front Controller Connector Terminals
    G06198456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A50 controller connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A50-3 (CANP) - A50-4 (CANN) B - W Engine switch off 108 to 132 Ω
      A50-3 (CANP) - A50-2 (E) B - W-B Engine switch off 200 Ω or higher
      A50-4 (CANN) - A50-2 (E) W - W-B Engine switch off 200 Ω or higher
      A50-3 (CANP) - A50-1 (FMB3) B-LG Engine switch off 6 kΩ or higher
      A50-4 (CANN) - A50-1 (FMB3) W-LG Engine switch off 6 kΩ or higher
  26. CHECK OUTER MIRROR SWITCH

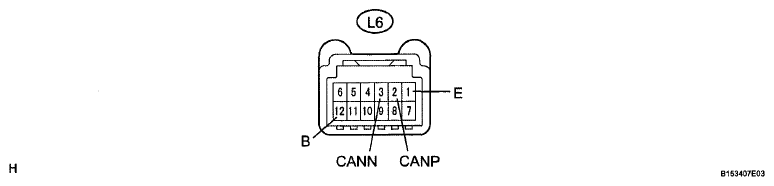

    Fig 38: Identifying L6 Switch Connector Terminals
    G06198457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L6 switch connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L6-2 (CANP) - L6-3 (CANN) B - W Engine switch off 54 to 69 Ω
      L6-2 (CANP) - L6-1 (E) B - W-B Engine switch off 200 Ω or higher
      L6-3 (CANN) - L6-1 (E) W - W-B Engine switch off 200 Ω or higher
      L6-2 (CANP) - L6-12 (B) B - B Engine switch off 6 kΩ or higher
      L6-3 (CANN) - L6-12 (B) W - B Engine switch off 6 kΩ or higher
  27. CHECK STEERING PAD ECU (STEERING PAD SWITCH)

    HINT:

    As there is a spiral cable between the steering pad ECU and the vehicle harness connector, a direct inspection of the steering pad ECU side of the vehicle harness connector cannot be performed.

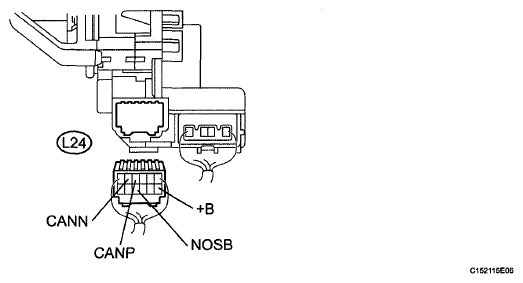

    Fig 39: Identifying L24 Cable Connector Terminal
    G06198458Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L24 cable connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L24-9 (CANP) - L24-8 (CANN) R - W Engine switch off 54 to 69 Ω
      L24-9 (CANP) - L24-3 (NOSB) R - W-B Engine switch off 200 Ω or higher
      L24-8 (CANN) - L24-3 (NOSB) W - W-B Engine switch off 200 Ω or higher
      L24-9 (CANP) - L24-6 (+B) R - B Engine switch off 6 kΩ or higher
      L24-8 (CANN) - L24-6 (+B) W - B Engine switch off 6 kΩ or higher
  28. CHECK MULTIPLEX TILT AND TELESCOPIC ECU

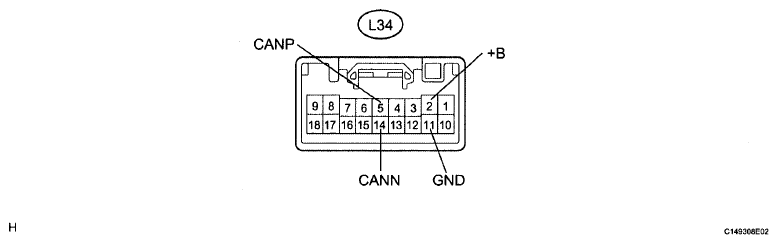

    Fig 40: Identifying L34 ECU Connector Terminals
    G06198459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L34 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L34-5 (CANP) - L34-14 (CANN) B - W Engine switch off 54 to 69 Ω
      L34-5 (CANP) - L34-11 (GND) B - W-B Engine switch off 200 Ω or higher
      L34-14 (CANN) - L34-11 (GND) W - W-B Engine switch off 200 Ω or higher
      L34-5 (CANP) - L34-2 (+B) B - B Engine switch off 6 kΩ or higher
      L34-14 (CANN) - L34-2 (+B) W - B Engine switch off 6 kΩ or higher
  29. CHECK CERTIFICATION ECU

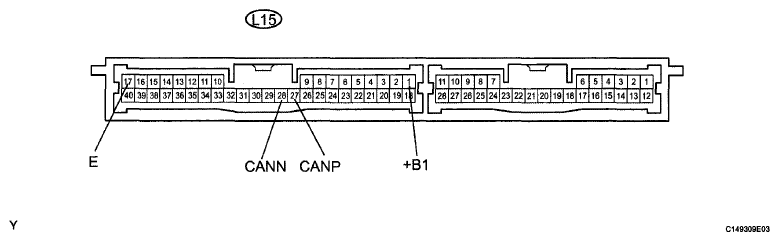

    Fig 41: Identifying L15 ECU Connector Terminals
    G06198460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L15 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L15-27 (CANP) - L15-28 (CANN) B - W Engine switch off 54 to 69 Ω
      L15-27 (CANP) - L15-17 (E) B - W-B Engine switch off 200 Ω or higher
      L15-28 (CANN) - L15-17 (E) W - W-B Engine switch off 200 Ω or higher
      L15-27 (CANP) - L15-1 (+B1) B - L Engine switch off 6 kΩ or higher
      L15-28 (CANN) - L15-1 (+B1) W - L Engine switch off 6 kΩ or higher
  30. CHECK FRONT MULTIPLEX NETWORK DOOR ECU LH

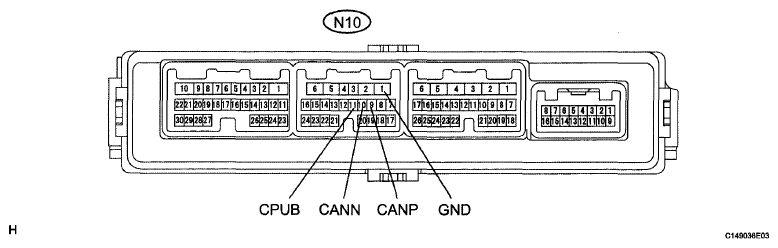

    Fig 42: Identifying N10 ECU Connector Terminals
    G06198461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the N10 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      N10-9 (CANP) - N10-10 (CANN) R - W Engine switch off 54 to 69 Ω
      N10-9 (CANP) - N10-1 (GND) R - W-B Engine switch off 200 Ω or higher
      N10-10 (CANN) - N10-1 (GND) W - W-B Engine switch off 200 Ω or higher
      N10-9 (CANP) - N10-11 (CPUB) R - B Engine switch off 6 kΩ or higher
      N10-10 (CANN) - N10-11 (CPUB) W - B Engine switch off 6 kΩ or higher
  31. CHECK FRONT MULTIPLEX NETWORK DOOR ECU RH

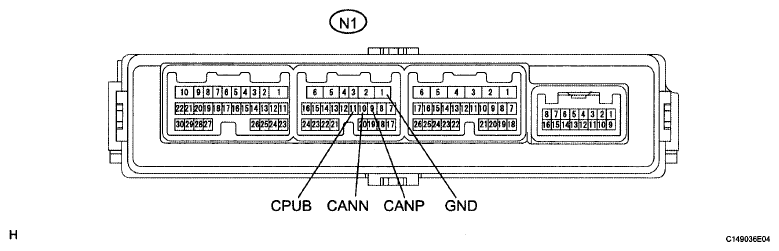

    Fig 43: Identifying N1 ECU Connector Terminals
    G06198462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the N1 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      N1-9 (CANP) - N1-10 (CANN) R - W Engine switch off 54 to 69 Ω
      N1-9 (CANP) - N1-1 (GND) R - W-B Engine switch off 200 Ω or higher
      N1-10 (CANN) - N1-1 (GND) W - W-B Engine switch off 200 Ω or higher
      N1-9 (CANP) - N1-11 (CPUB) R - R Engine switch off 6 kΩ or higher
      N1-10 (CANN) - N1-11 (CPUB) W - R Engine switch off 6 kΩ or higher
  32. CHECK REAR MULTIPLEX NETWORK DOOR ECU LH

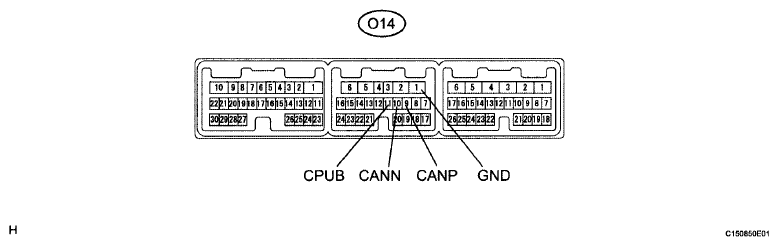

    Fig 44: Identifying O14 ECU Connector Terminals
    G06198463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the O14 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      O14-9 (CANP) - O14-10 (CANN) R - W Engine switch off 54 to 69 Ω
      O14-9 (CANP) - O14-1 (GND) R - W-B Engine switch off 200 Ω or higher
      O14-10 (CANN) - O14-1 (GND) W - W-B Engine switch off 200 Ω or higher
      O14-9 (CANP) - O14-11 (CPUB) R - R Engine switch off 6 kΩ or higher
      O14-10 (CANN) - O14-11 (CPUB) W - R Engine switch off 6 kΩ or higher
  33. CHECK REAR MULTIPLEX NETWORK DOOR ECU RH

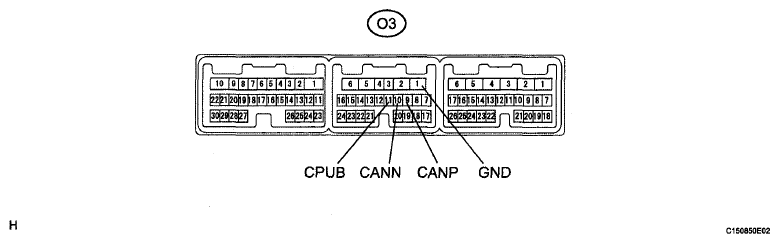

    Fig 45: Identifying O3 ECU Connector Terminals
    G06198464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the O3 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      O3-9 (CANP) - O3-10 (CANN) R - W Engine switch off 54 to 69 Ω
      O3-9 (CANP) - O3-1 (GND) R - W-B Engine switch off 200 Ω or higher
      O3-10 (CANN) - O3-1 (GND) W - W-B Engine switch off 200 Ω or higher
      O3-9 (CANP) - O3-11 (CPUB) R - R Engine switch off 6 kΩ or higher
      O3-10 (CANN) - O3-11 (CPUB) W - R Engine switch off 6 kΩ or higher
  34. CHECK FRONT POWER SEAT ECU AND SWITCH LH

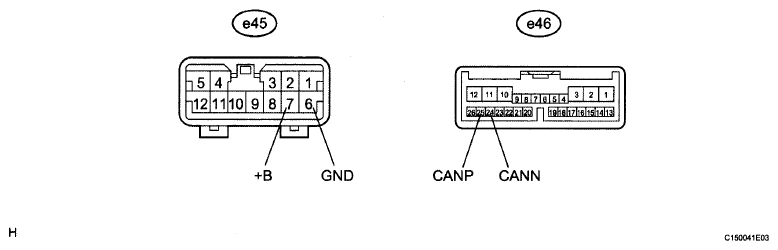

    Fig 46: Lost Communication With Steering Pad ECU - Wiring Diagram
    G06198465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the e45 and e46 switch connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      e46-25 (CANP) - e46-24 (CANN) R - W Engine switch off 54 to 69 Ω
      e46-25 (CANP) - e45-6 (GND) R - W-B Engine switch off 200 Ω or higher
      e46-24 (CANN) - e45-6 (GND) W - W-B Engine switch off 200 Ω or higher
      e46-25 (CANP) - e45-7 (+B) R - B-R Engine switch off 6 kΩ or higher
      e46-24 (CANN) - e45-7 (+B) W - B-R Engine switch off 6 kΩ or higher
  35. CHECK FRONT POWER SEAT ECU AND SWITCH RH

    HINT:

    For vehicles with rear power seat control system only.

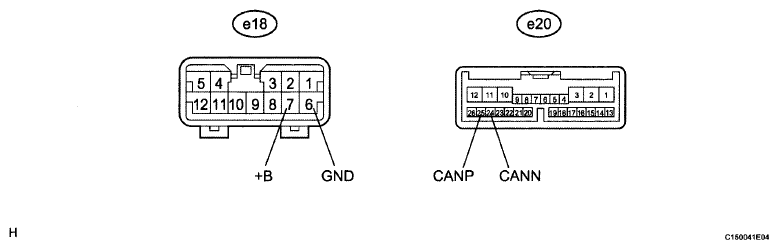

    Fig 47: Identifying E18 And E20 Switch Connectors Terminals
    G06198466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the e18 and e20 switch connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      e20-25 (CANP) - e20-24 (CANN) R - W Engine switch off 54 to 69 Ω
      e20-25 (CANP) - e18-6 (GND) R - W-B Engine switch off 200 Ω or higher
      e20-24 (CANN) - e18-6 (GND) W - W-B Engine switch off 200 Ω or higher
      e20-25 (CANP) - e18-7 (+B) R - B Engine switch off 6 kΩ or higher
      e20-24 (CANN) - e18-7 (+B) W - B Engine switch off 6 kΩ or higher
  36. CHECK REAR POWER SEAT MODULE SWITCH

    HINT:

    For vehicles with rear power seat control system or seat heater system and rear power seat control system (w/Ottoman).

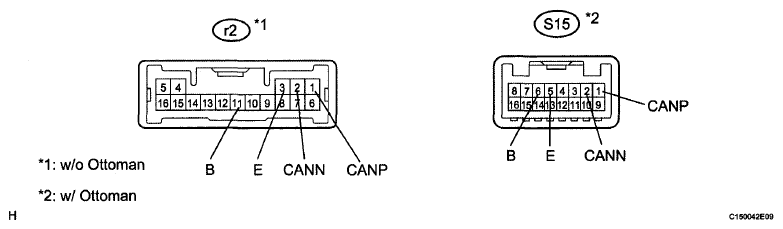

    Fig 48: Identifying R2*1 And S15*2 Switch Connectors Terminals
    G06198467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the r2*1 and S15*2 switch connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      r2-1 (CANP) - r2-2 (CANN)*1 B - W Engine switch off 54 to 69 Ω
      r2-1 (CANP) - r2-3 (E)*1 B - W-B Engine switch off 200 Ω or higher
      r2-2 (CANN) - r2-3 (E)*1 W - W-B Engine switch off 200 Ω or higher
      r2-1 (CANP) - r2-11 (B)*1 B - R Engine switch off 6 kΩ or higher
      r2-2 (CANN) - r2-11 (B)*1 W - R Engine switch off 6 kΩ or higher
      S15-1 (CANP) - S15-2 (CANN)*2 B - W Engine switch off 54 to 69 Ω
      S15-1 (CANP) - S15-5 (E)*2 B - W-B Engine switch off 200 Ω or higher
      S15-2 (CANN) - S15-5 (E)*2 W - W-B Engine switch off 200 Ω or higher
      S15-1 (CANP) - S15-6 (B)*2 B - R Engine switch off 6 kΩ or higher
      S15-2 (CANN) -S15-6 (B)*2 W - R Engine switch off 6 kΩ or higher
      HINT:
      • *1: w/o Ottoman
      • *2: w/ Ottoman
  37. CHECK COMBINATION SWITCH

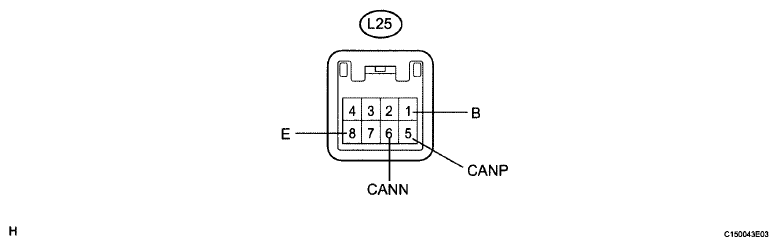

    Fig 49: Identifying L25 Switch Connector Terminals
    G06198468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L25 switch connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L25-5 (CANP) - L25-6 (CANN) R - W Engine switch off 54 to 69 Ω
      L25-5 (CANP) - L25-8 (E) R - W-B Engine switch off 200 Ω or higher
      L25-6 (CANN) - L25-8 (E) W - W-B Engine switch off 200 Ω or higher
      L25-5 (CANP) - L25-1 (B) R-B Engine switch off 6 kΩ or higher
      L25-6 (CANN) - L25-1 (B) W - B Engine switch off 6 kΩ or higher
  38. CHECK POWER TRUNK LID CONTROL ECU

    HINT:

    For vehicles with power trunk lid system only.

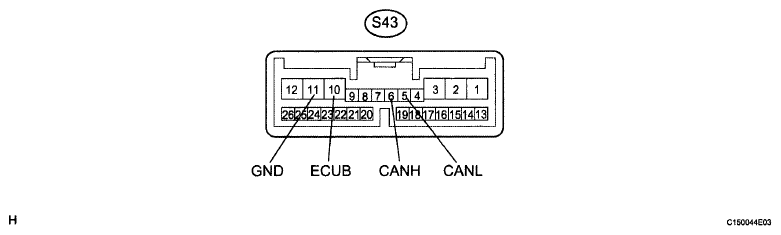

    Fig 50: Identifying S43 ECU Connector Terminals
    G06198469Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S43 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S43-6 (CANH) - S43-5 (CANL) B - W Engine switch off 54 to 69 Ω
      S43-6 (CANH) - S43-11 (GND) B - W-B Engine switch off 200 Ω or higher
      S43-5 (CANL) - S43-11 (GND) W - W-B Engine switch off 200 Ω or higher
      S43-6 (CANH) - S43-10 (ECUB) B - B Engine switch off 6 kΩ or higher
      S43-5 (CANL) - S43-10 (ECUB) W - B Engine switch off 6 kΩ or higher
  39. CHECK REAR JUNCTION BLOCK ECU (LUGGAGE ROOM JUNCTION BLOCK)

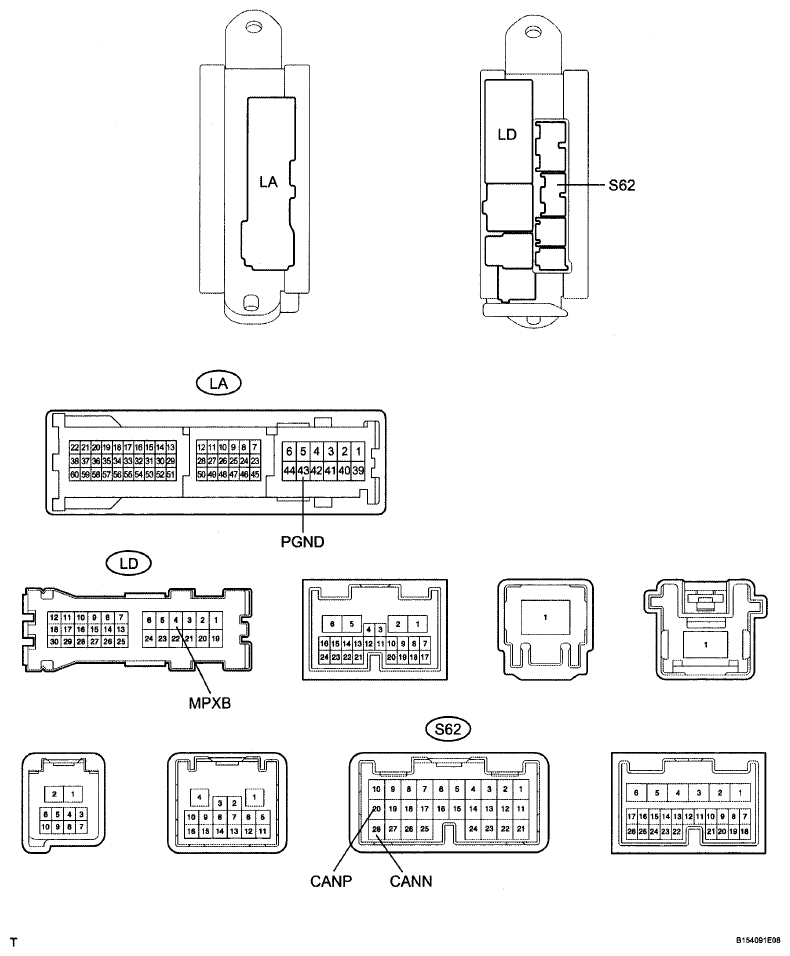

    Fig 51: Identifying Rear Junction Block ECU Connector Terminals (Luggage Room Junction Block)
    G06198470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the S62 ECU connector.
    2. Disconnect the LA and LD junction block connectors.
    3. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      S62-20 (CANP) - S62-28 (CANN) B - W Engine switch off 108 to 132 Ω
      S62-20 (CANP) - LA-43 (PGND) B - W-B Engine switch off 200 Ω or higher
      S62-28 (CANN) - LA-43 (PGND) W - W-B Engine switch off 200 Ω or higher
      S62-20 (CANP) - LD-4 (MPXB) B - R Engine switch off 6 kΩ or higher
      S62-28 (CANN) - LD-4 (MPXB) W - R Engine switch off 6 kΩ or higher
  40. CHECK TIRE PRESSURE WARNING ECU

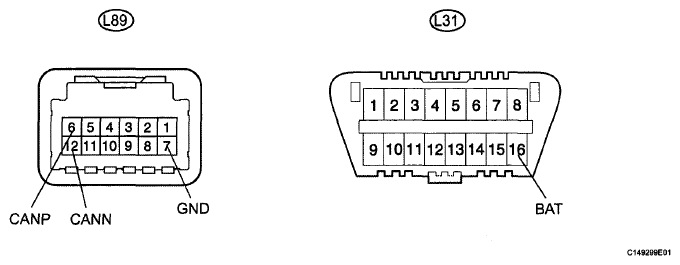

    Fig 52: Identifying L89 Connector Terminals
    G06198471Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L89 connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L89-6 (CANP) - L89-12 (CANN) B - W Engine switch off 54 to 69 Ω
      L89-6 (CANP) - L89-7 (GND) B - B Engine switch off 200 Ω or higher
      L89-12 (CANN) - L89-7 (GND) W - B Engine switch off 200 Ω or higher
      L89-6 (CANP) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      L89-12 (CANN) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  41. CHECK FRONT MILLIMETER WAVE RADAR SENSOR

    HINT:

    For vehicles with dynamic radar cruise control system or pre-collision system only.

    Fig 53: Identifying B9 Sensor Connector Terminals
    G06198472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the B9 sensor connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      B9-4 (CA1P) - B9-3 (CA1N) B - W Engine switch off 108 to 132 Ω
      B9-4 (CA1P) - L31-4 (CG) B - W-B Engine switch off 200 Ω or higher
      B9-3 (CA1N) - L31-4 (CG) W - W-B Engine switch off 200 Ω or higher
      B9-4 (CA1P) - L31-16 (BAT) B - B Engine switch off 6 kΩ or higher
      B9-3 (CA1N) - L31-16 (BAT) W - B Engine switch off 6 kΩ or higher
  42. CHECK BUS BUFFER ECU

    HINT:

    For vehicles with LEXUS link system only.

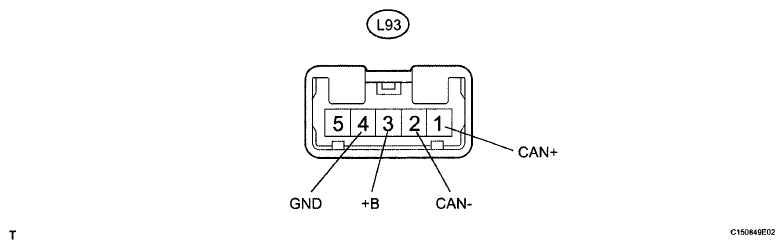

    Fig 54: Identifying L93 ECU Connector Terminals
    G06198473Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the L93 ECU connector.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      L93-1 (CAN+) - L93-2 (CAN-) B - W Engine switch off 54 to 69 Ω
      L93-1 (CAN+) - L93-4 (GND) B - W-B Engine switch off 200 Ω or higher
      L93-2 (CAN-) - L93-4 (GND) W - W-B Engine switch off 200 Ω or higher
      L93-1 (CAN+) - L93-3 (+B) B - R Engine switch off 6 kΩ or higher
      L93-2 (CAN-) - L93-3 (+B) W - R Engine switch off 6 kΩ or higher
  43. CHECK TCM

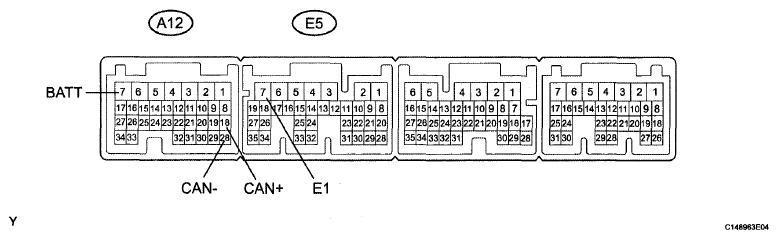

    Fig 55: Identifying A12 And E5 TCM Connectors Terminals
    G06198474Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the A12 and E5 TCM connectors.
    2. Measure the resistance according to the value(s) in the table below.
      SPECIFIED CONDITION CHART

      Terminal No. (Symbols) Wiring Color Switch Condition Specified Condition
      A12-18 (CAN+) - A12-28 (CAN-) B - W Engine switch off 108 to 132 Ω
      A12-18 (CAN+) - E5-7 (E1) B - BR Engine switch off 200 Ω or higher
      A12-28 (CAN-) - E5-7 (E1) W - BR Engine switch off 200 Ω or higher
      A12-18 (CAN+) - A12-7 (BATT) B - LG Engine switch off 6 kΩ or higher
      A12-28 (CAN-) - A12-7 (BATT) W - LG Engine switch off 6 kΩ or higher
scientia non olet · About LEMON Manuals
