ECM Communication Stop Mode: Wiring Diagram

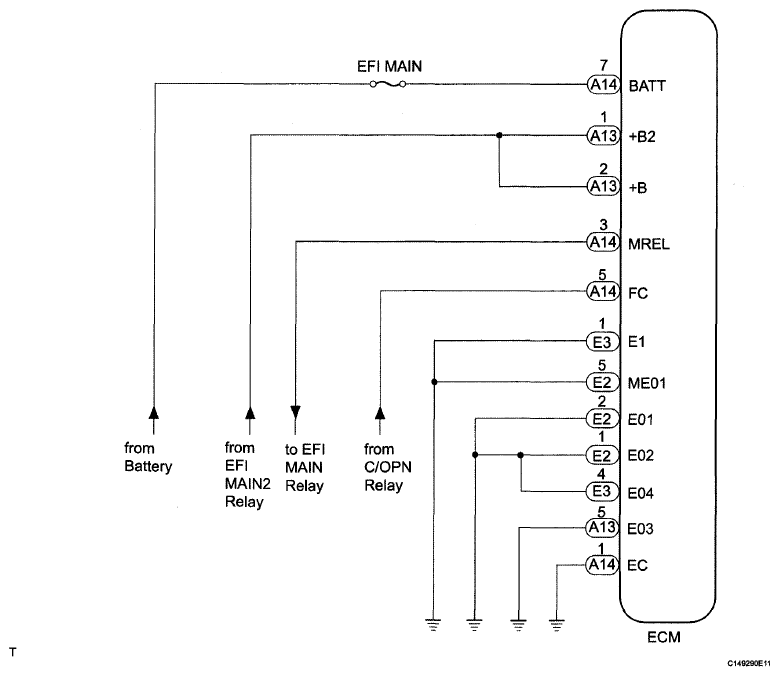

Fig 1: ECM Communication Stop Mode - Wiring Diagram

G06198710

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
