FRONT AXLE HUB (for AWD): Components

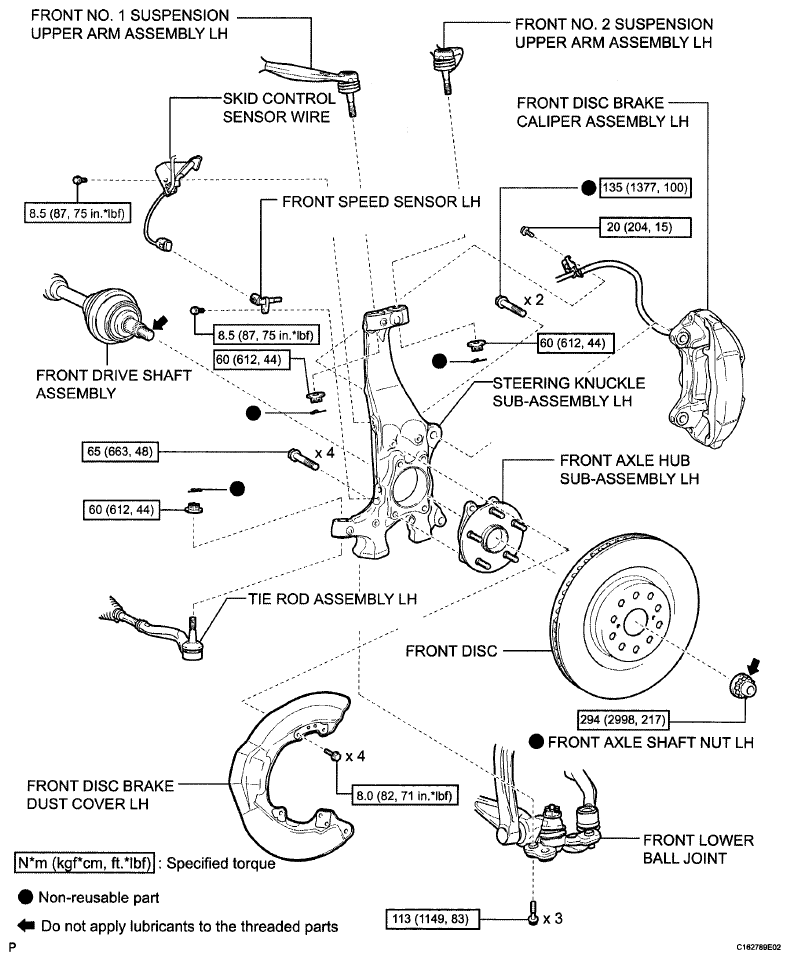

Fig 1: Front Axle Hub (AWD) With Torque Specification

G06193219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
