FUEL INJECTOR (for Port Injection): Components

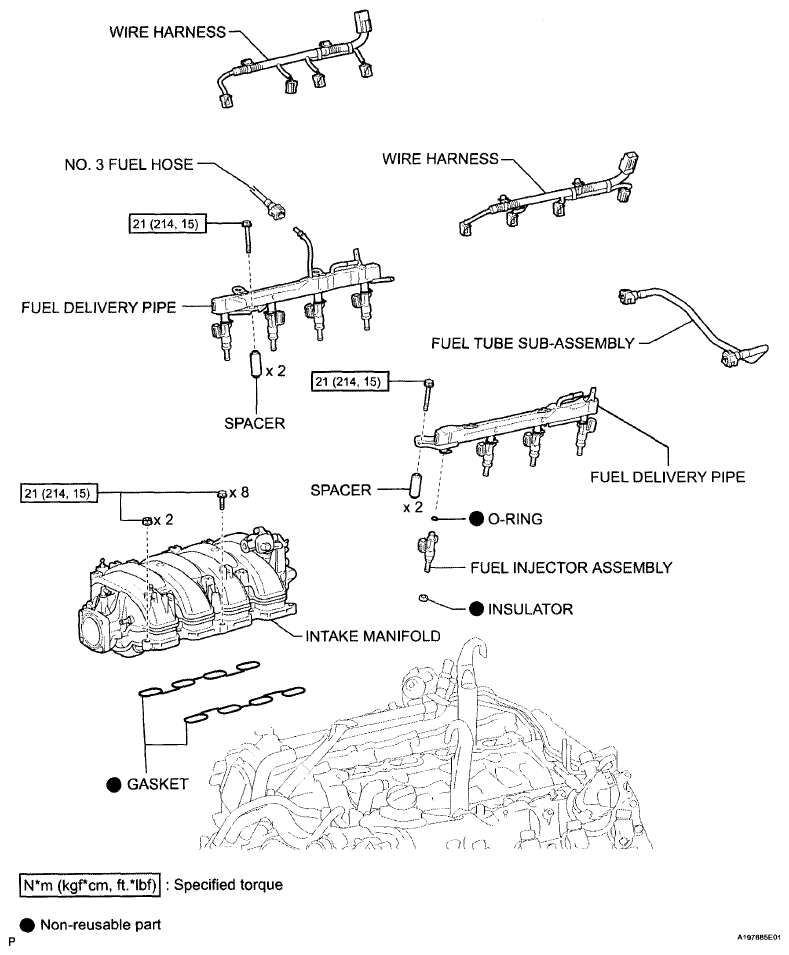

Fig 1: Fuel Injector Replacement Components - Port Injection With Torque Specifications

G06186563

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
