DTC B2284 Brake Signal Malfunction: Wiring Diagram

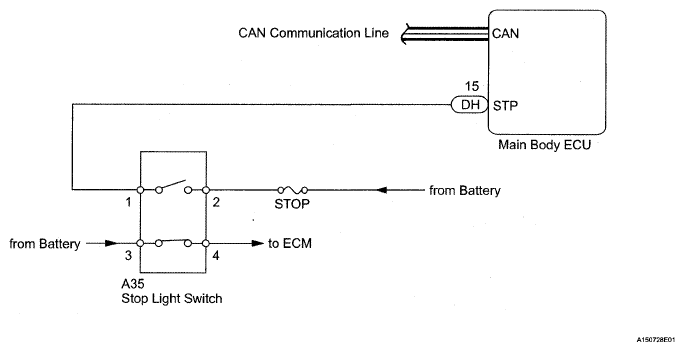

Fig 1: Stop Light Switch And Main Body ECU - Wiring Diagram

G04943851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
