Home >> Lexus >> 2009 >> LS 460 RWD >> Repair and Diagnosis >> Accessories & Equipment >> Entertainment Systems >> Cellular Communication >> LEXUS Link System >> System Diagram

System Diagram

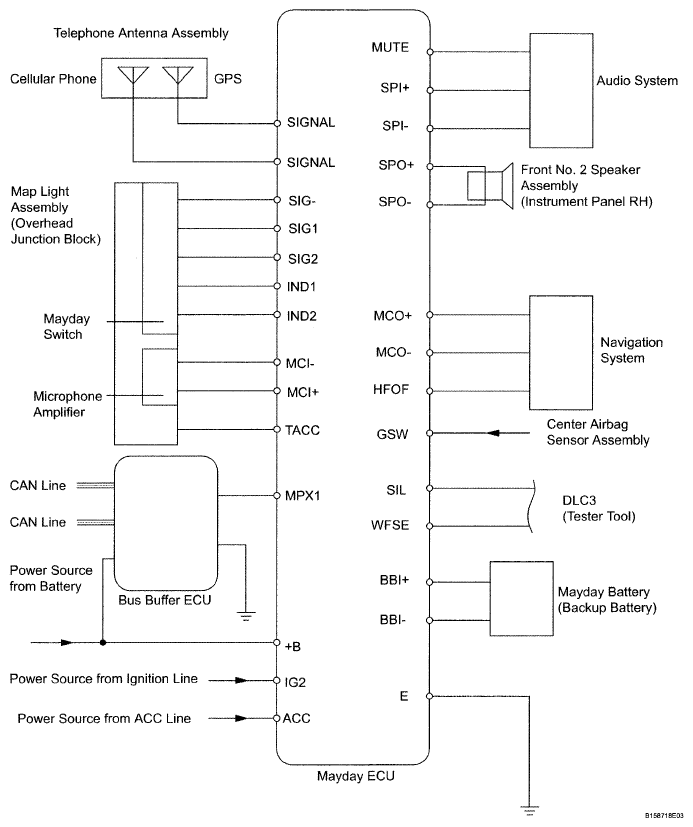

Fig 1: Lexus Link System - System Diagram

G04945788

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
