Rear Upper Arm: Components

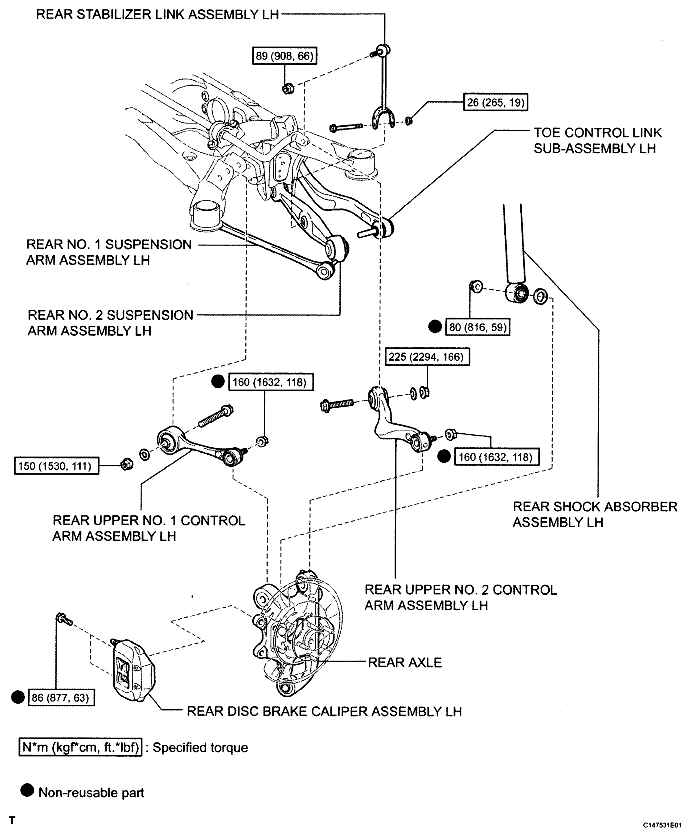

Fig 1: Rear Upper Arm Replacement Components With Torque Specifications

G04949488

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
