Parts Location: Illustration

WARNING: This page is about a different car, the 2010 Lexus GS 450h. However, it is still accessible from the selected car via links, so may be relevant.

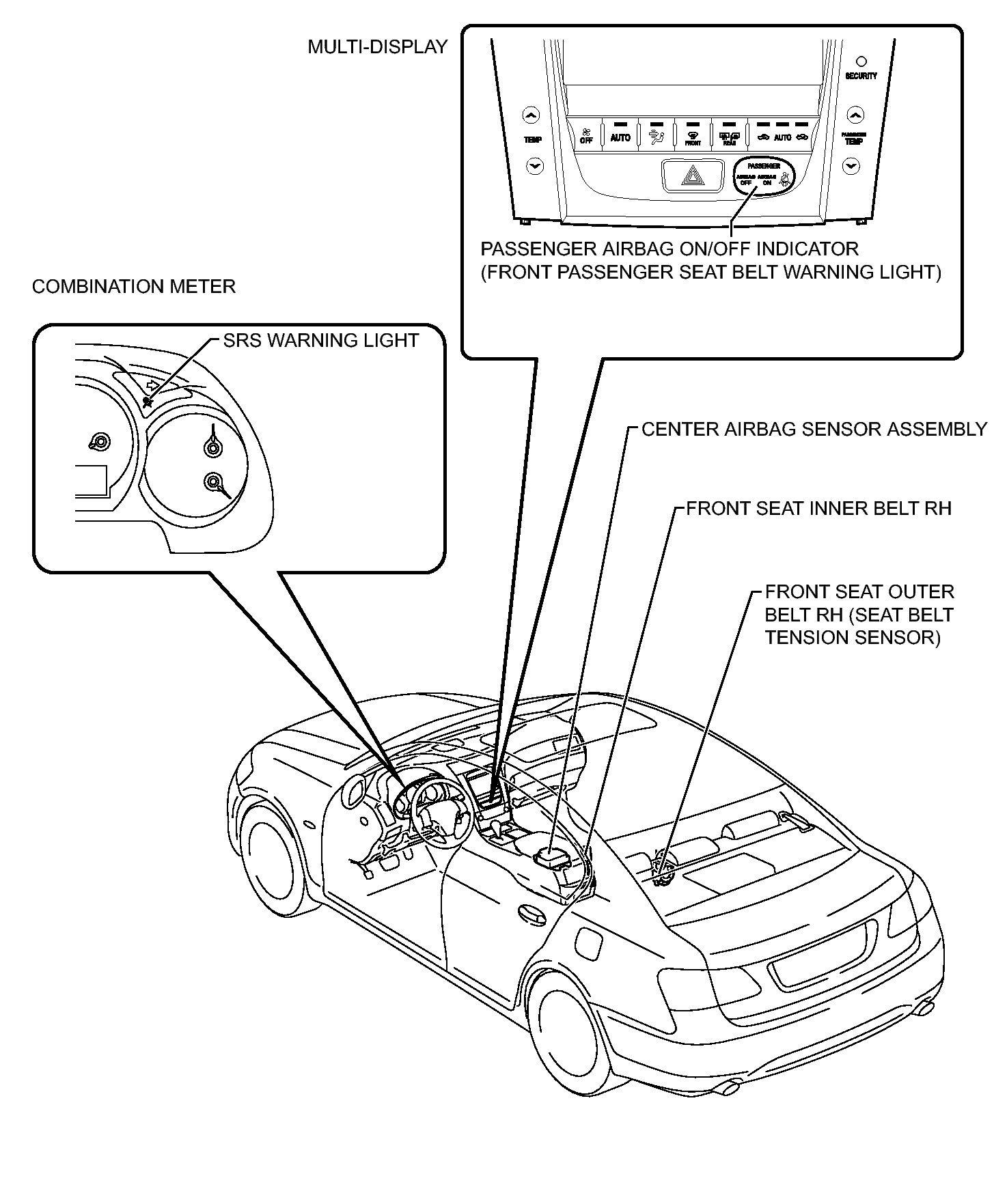

Fig 1: Identifying Occupant Classification System Components (1 Of 2)
GTY266544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

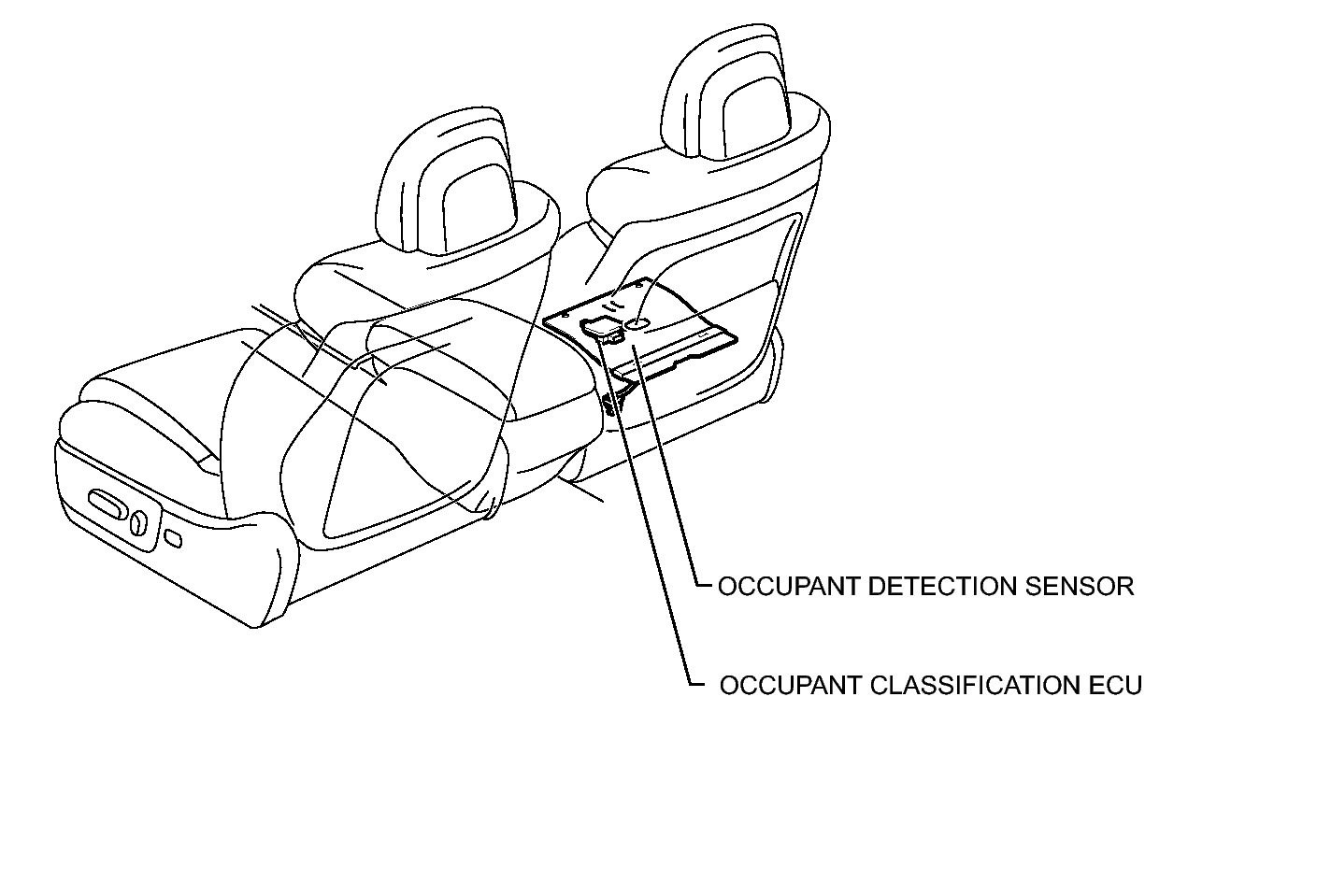

Fig 1: Identifying Occupant Classification System Components (2 Of 2)
GTY107398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
