EXHAUST MANIFOLD (for AWD): Components

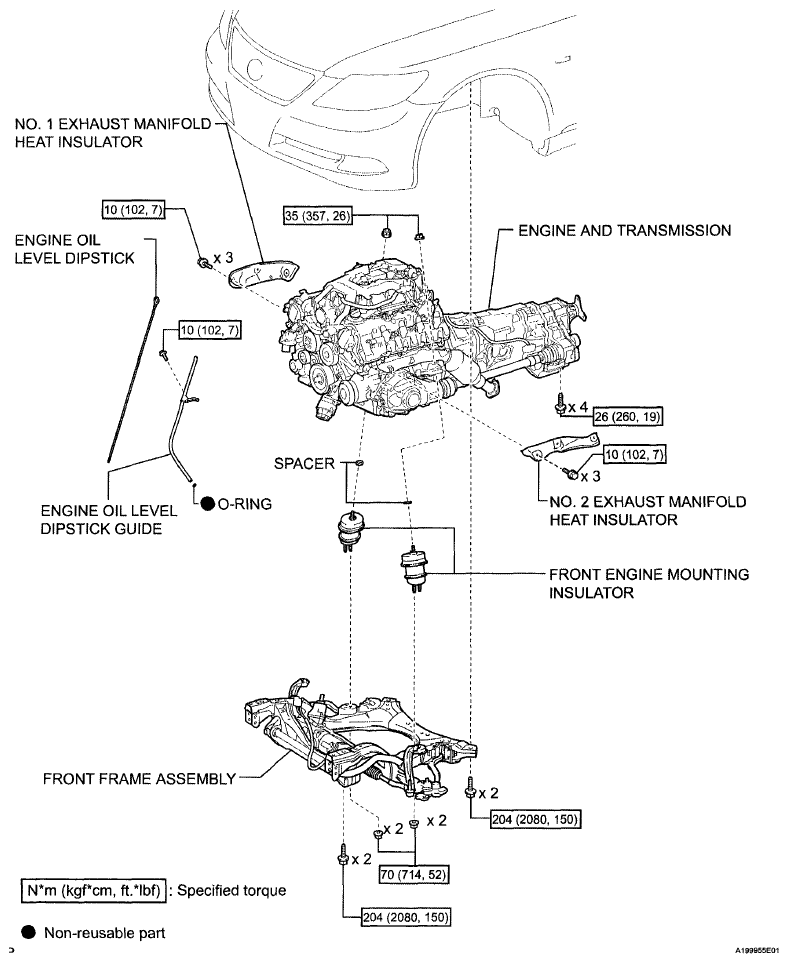

Fig 1: Exhaust Manifold Replacement Components With Torque Specifications - AWD (1 Of 2)
G06196282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

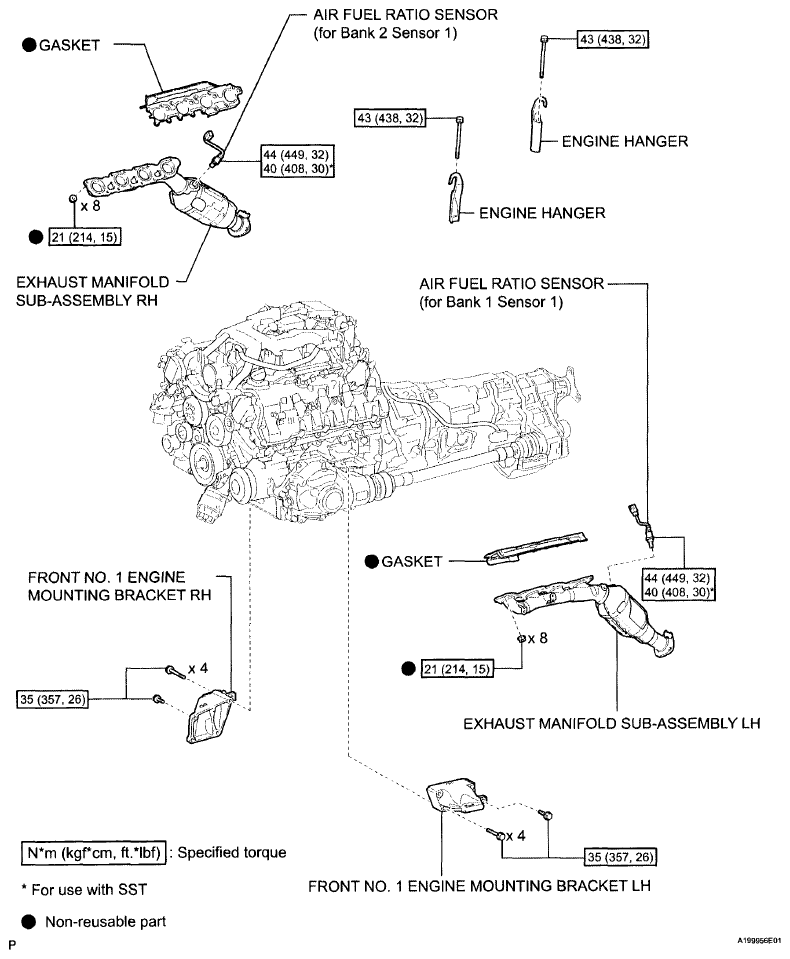

Fig 2: Exhaust Manifold Replacement Components With Torque Specifications - AWD (2 Of 2)
G06196283Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
