Purge Valve: Components

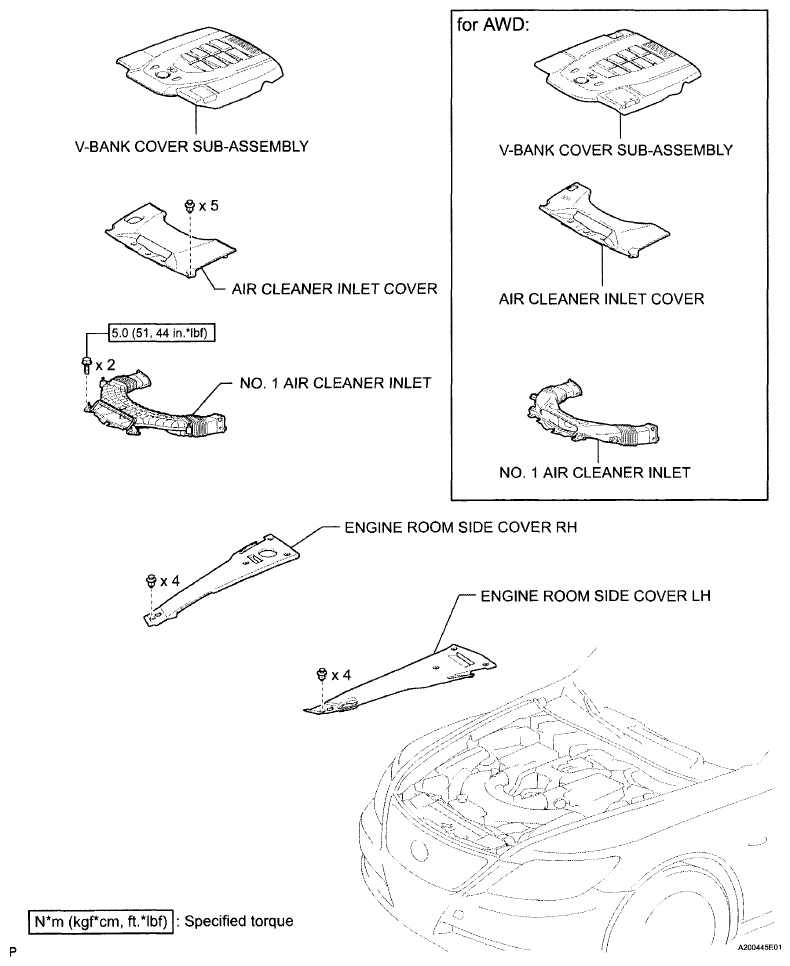

Fig 1: Air Cleaner And Engine Room Side Cover Replacement Components With Torque Specifications
G06196206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

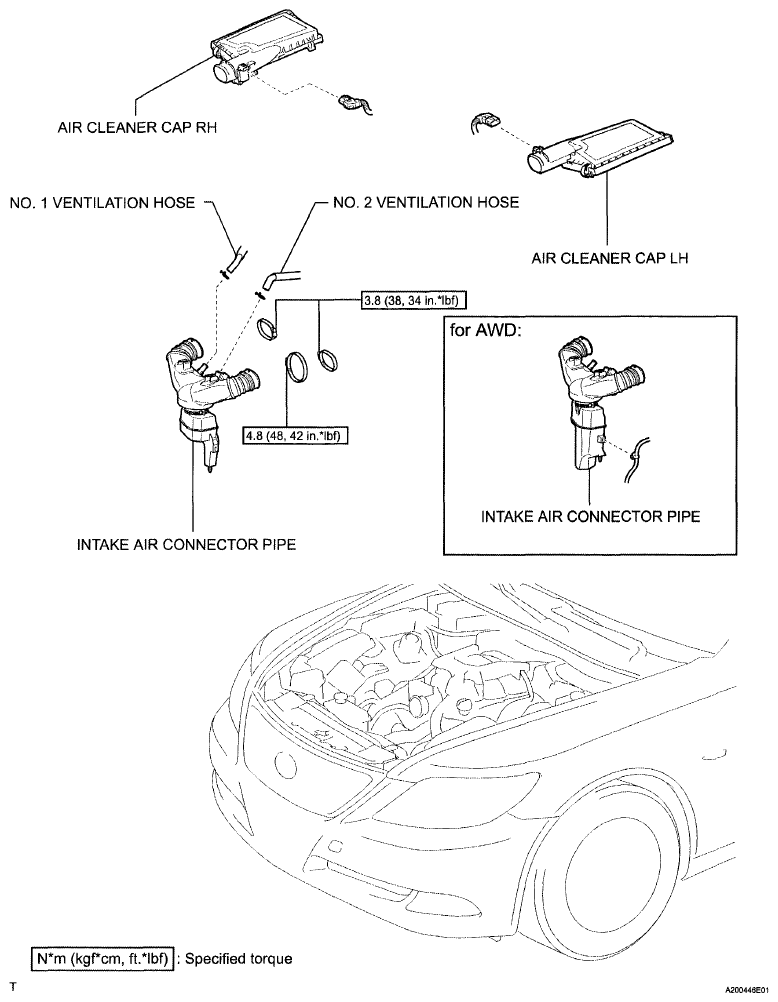

Fig 2: Air Cleaner, Intake Air Connector Pipe And Ventilation Hose With Torque Specifications
G06196207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

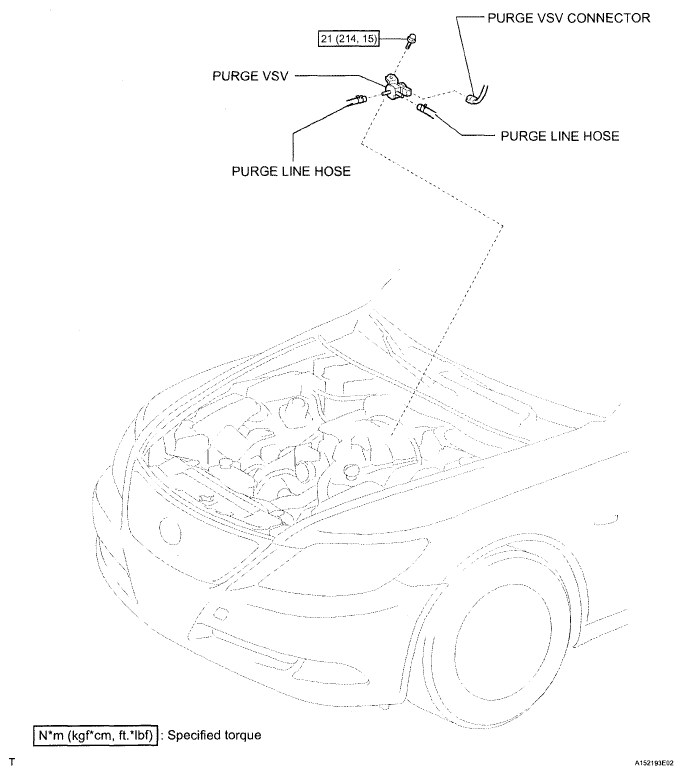

Fig 3: Purge Valve Replacement Components With Torque Specifications
G05850848Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
