Parts Location

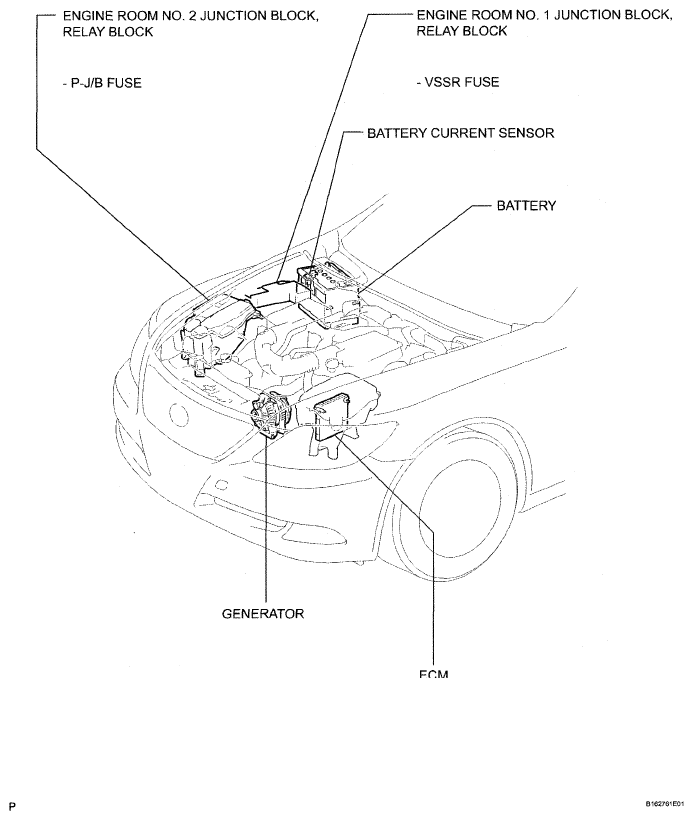

Fig 1: Identifying Electric Power Control System Parts Location (1 Of 2)
G04945716Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

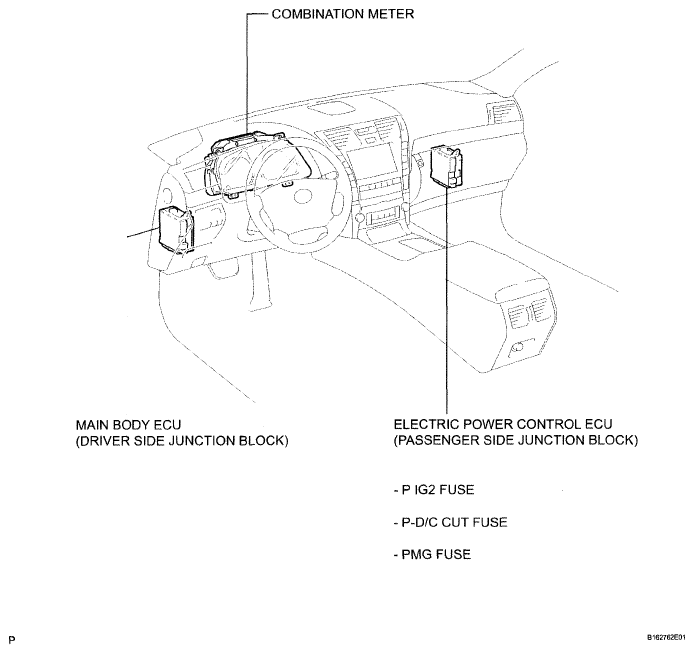

Fig 2: Identifying Electric Power Control System Parts Location (2 Of 2)
G04945717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
