DTC B22A1 Battery Current Sensor: Wiring Diagram

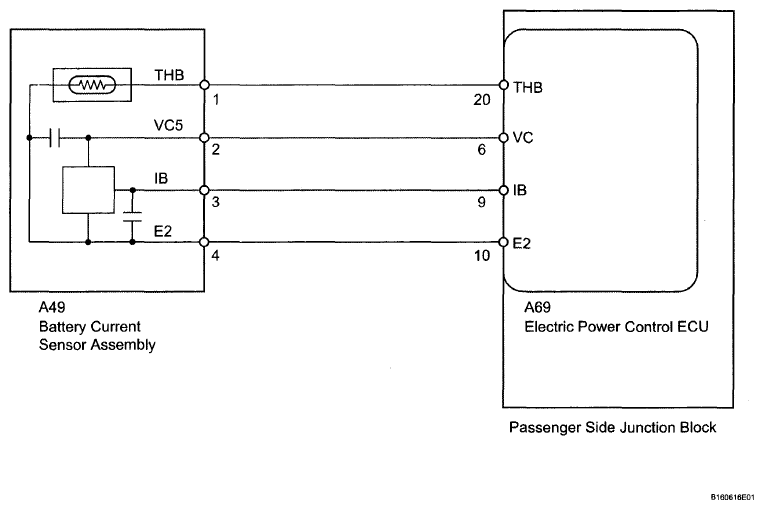

Fig 1: Battery Current Sensor - Wiring Diagram

G06190772

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
