Inspection Procedure

  1. CHECK PASSENGER SIDE JUNCTION BLOCK (IG INPUT VOLTAGE)
    1. Disconnect the PK junction block connector.
    2. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      STANDARD VOLTAGE REFERENCE CHART

      Tester Connection Switch Condition Specified Condition
      PK-1 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      Fig 1: Identifying PK Junction Block Connector Terminals
      G04945721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG:  Go to step  3

      OK: Go to next step

  2. INSPECT FUSE (P IG2)
    1. Remove the P IG2 fuse from the passenger side junction block.
    2. Measure the resistance of the fuse.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      P IG2 fuse Always Below 1 Ω

      NG: REPLACE FUSE

      OK: REPLACE PASSENGER SIDE JUNCTION BLOCK (ELECTRIC POWER CONTROL ECU)

  3. CHECK HARNESS AND CONNECTOR (PASSENGER SIDE J/B - ENGINE ROOM NO. 2 J/B)
    1. Disconnect the PK and 2C junction block connectors.
    2. Measure the resistance according to the value (s) in the table below.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      PK-1 (IG) - 2C-30 Always Below 1 Ω
      PK-1 (IG) or 2C-30 - Body ground Always 10 kΩ or higher

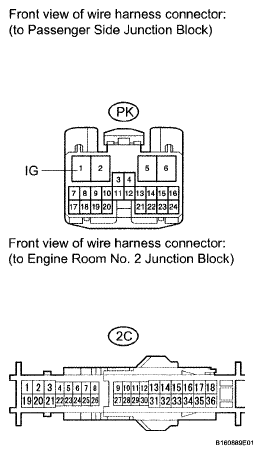

      Fig 2: Identifying PK And 2C Junction Block Connectors Terminals
      G04945722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  4. CHECK HARNESS AND CONNECTOR (ENGINE ROOM NO. 2 JUNCTION BLOCK BATTERY)
    1. Disconnect the 2E junction block connector.
    2. Measure the voltage according to the value (s) in the table below.

      Standard voltage

      STANDARD VOLTAGE REFERENCE CHART

      Tester Connection Condition Specified Condition
      2E-1 - Body ground Always 11 to 14 V
      Fig 3: Identifying 2E Junction Block Connector Terminals
      G04945723Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

      OK: Go to next step

  5. INSPECT FUSE (P-J/B)
    1. Remove the P-J/B fuse from the engine room No. 2 junction block.
    2. Measure the resistance of the fuse.

      Standard resistance

      STANDARD RESISTANCE REFERENCE CHART

      Tester Connection Condition Specified Condition
      P-J/B fuse Always Below 1 Ω

      NG: REPLACE FUSE

      OK: Go to next step

  6. CHECK FOR DTC (B2273)
    1. Check for DTC B2273 (see DTC CHECK/CLEAR ).

      OK:

      DTC B2273 is not output.

      NG: GO TO SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Starting)  (See DIAGNOSTIC TROUBLE CODE CHART )

      OK: REPLACE ENGINE ROOM NO. 2 JUNCTION BLOCK
