Rear Side Switch Module LIN Communication Malfunction: Wiring Diagram

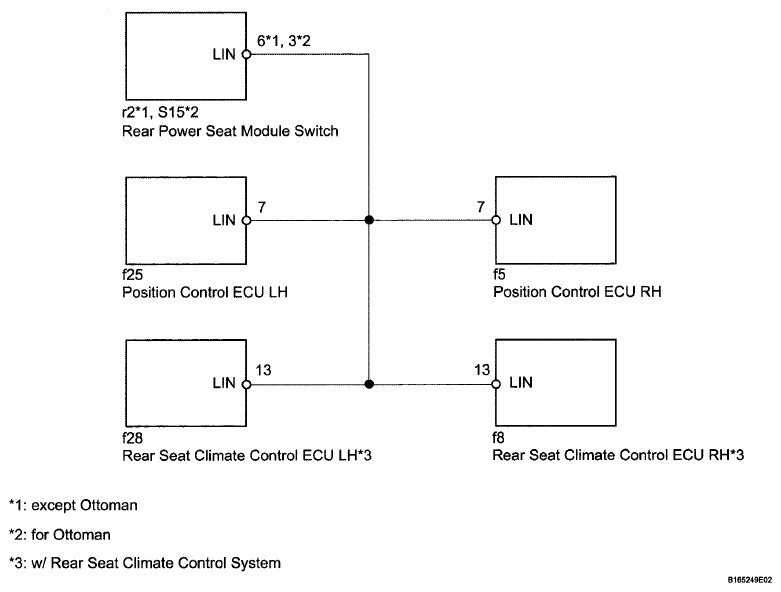

Fig 1: Rear Seat Climate Control ECU - Wiring Diagram

G06198399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
