Shift Lever: Components: Illustration

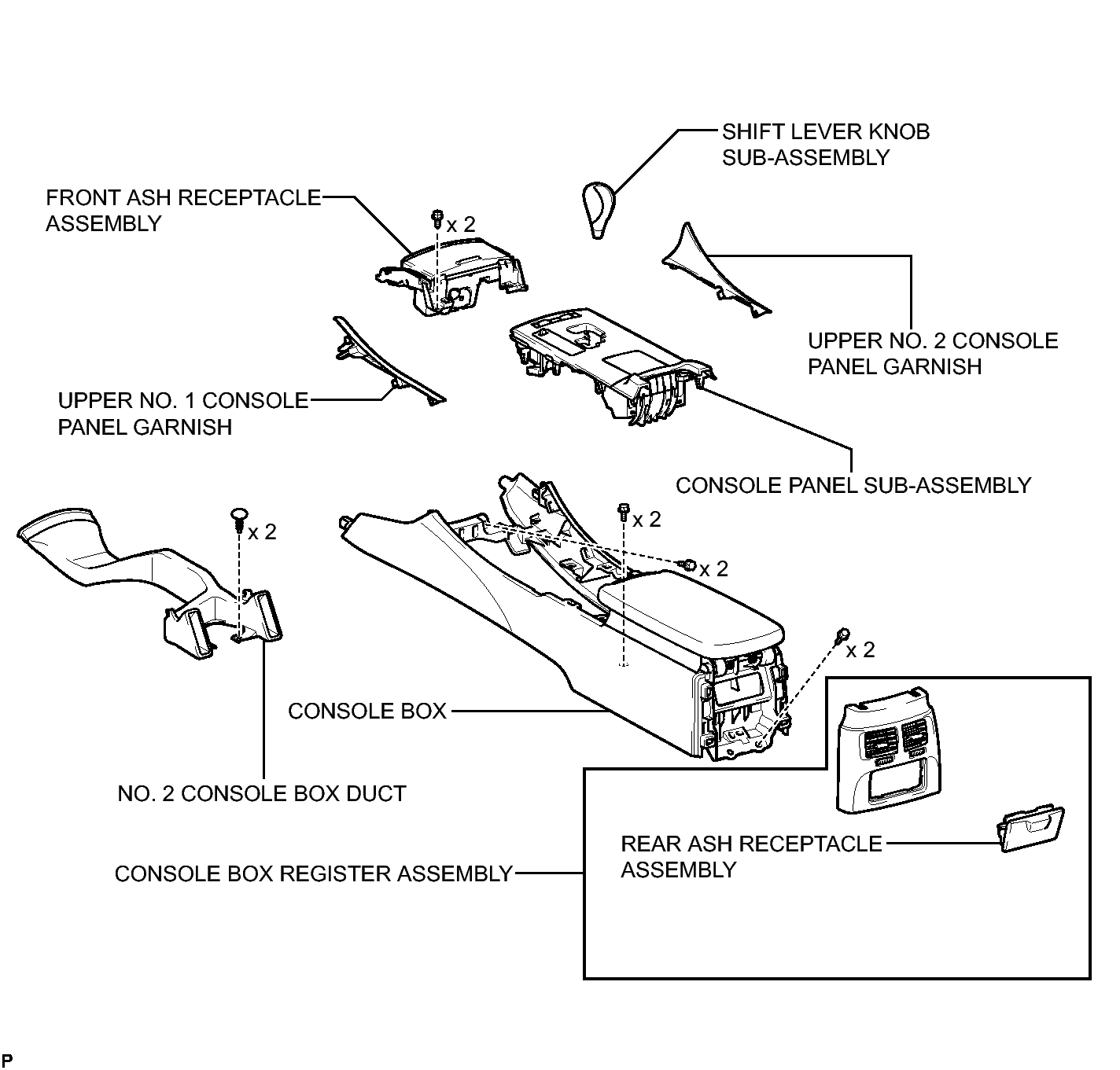

Fig 1: Identifying Shift Lever Replacement Components (1 Of 4)
GTY137721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Shift Lever Replacement Components (2 Of 4)
GTY149092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

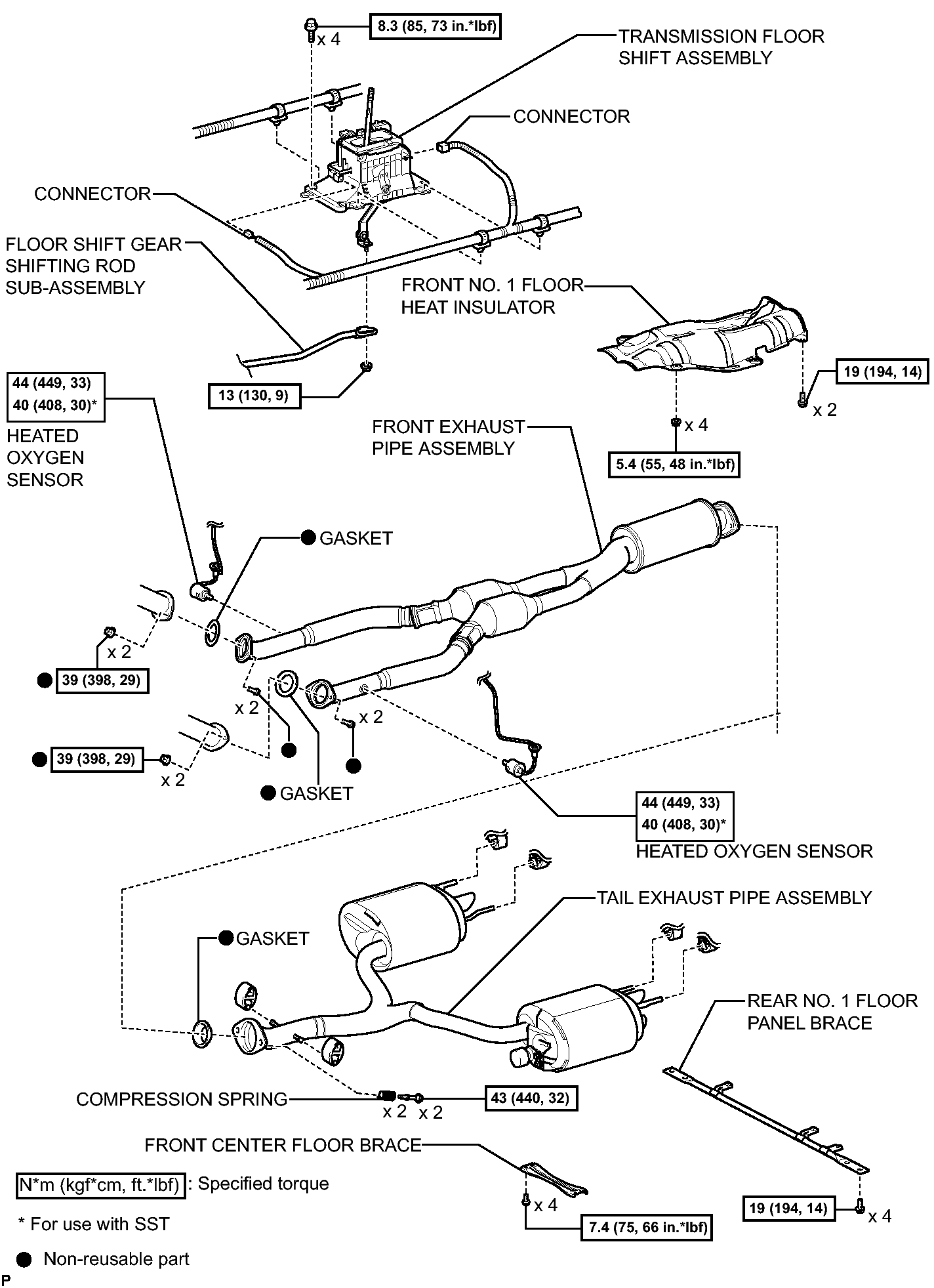

Fig 1: Identifying Shift Lever Replacement Components with Torque Specifications (3 Of 4)
GTY108958Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Shift Lever Replacement Components (4 Of 4)
GTY149088Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
