DTC B2788: IG2 Signal Malfunction: Wiring Diagram

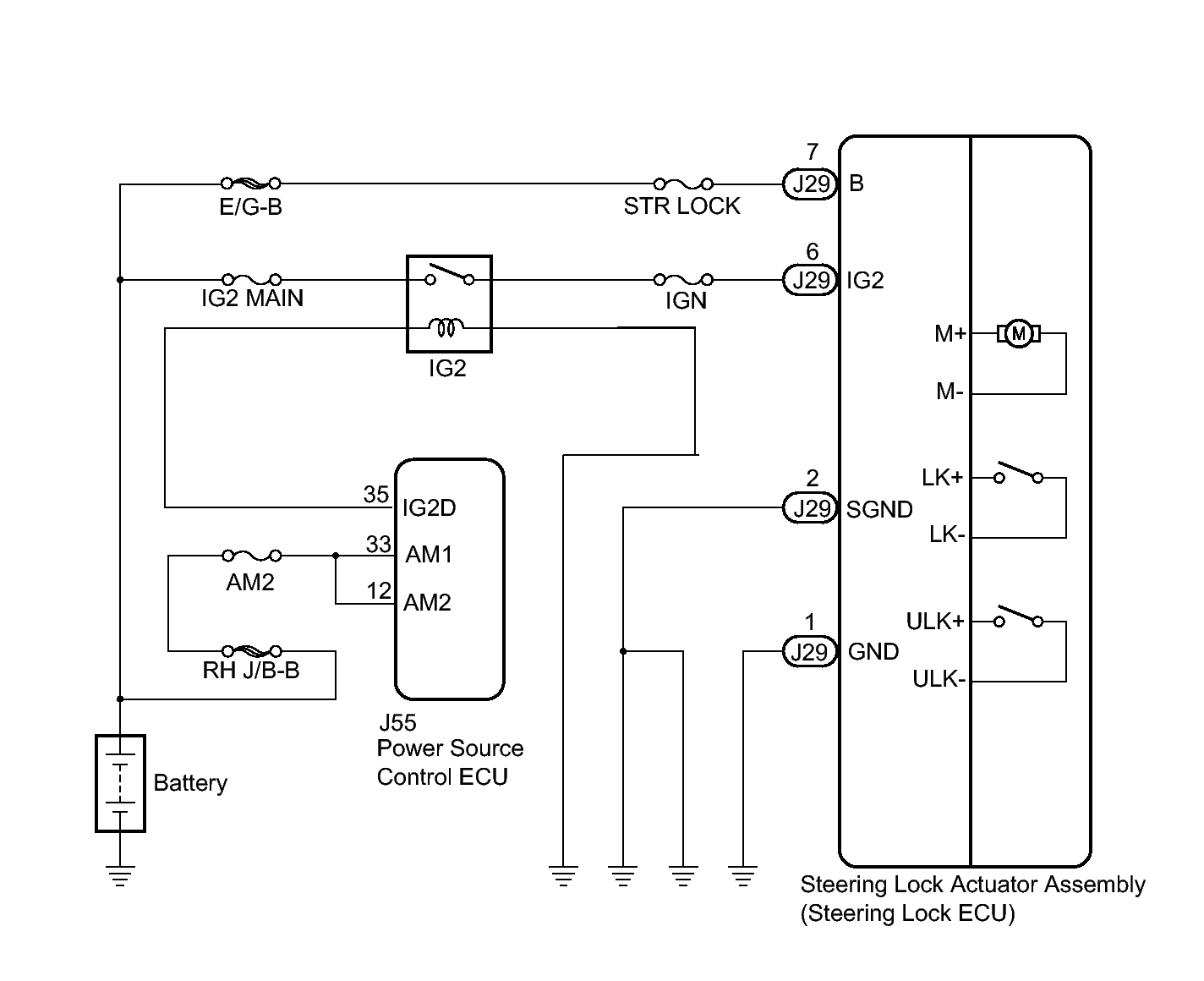

Fig 1: Steering Lock Actuator - Wiring Diagram

GTY135911

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
