Tilt And Telescopic Manual Switch: Installation: Installation

INSTALL TILT AND TELESCOPIC SWITCH
1. Engage the claw to install the tilt and telescopic switch.

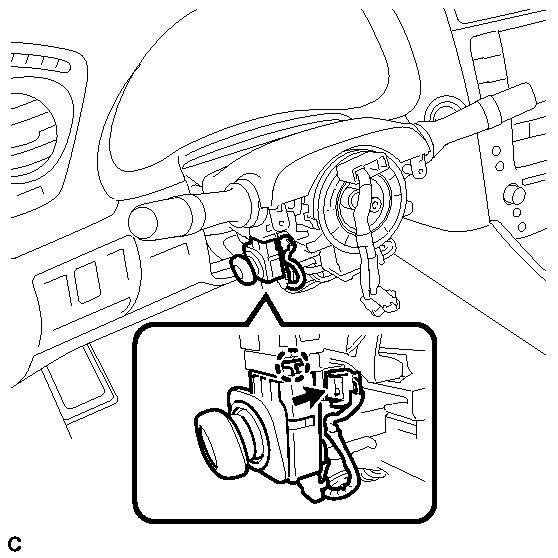

  Fig 1: Locating Tilt And Telescopic Switch Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the connector.
INSTALL LOWER STEERING COLUMN COVER
1. Engage the 2 claws to install the lower steering column cover.

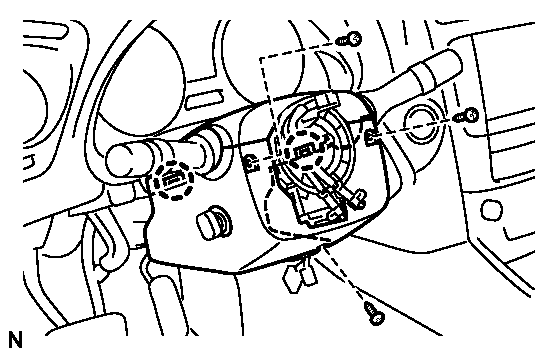

  Fig 2: Identifying Lower Steering Column Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Do not damage the tilt and telescopic switch.
2. Install the 3 screws.
  Torque: 2.0 N*m ( 20 kgf*cm, 18 in.*lbf)
ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 4
INSTALL STEERING WHEEL ASSEMBLY See step 10
INSPECT STEERING WHEEL CENTER POINT
INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
INSTALL LOWER NO. 3 STEERING WHEEL COVER . Refer to INSTALLATION - Step 2
INSTALL LOWER NO. 2 STEERING WHEEL COVER . Refer to INSTALLATION - Step 3
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL See step 18
INSPECT STEERING PAD . Refer to INSTALLATION - Step 5
INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM .
