Fuel Lid Opener: Notes

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

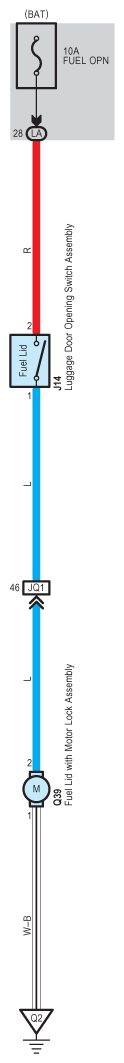

Fig 1: Fuel Lid Opener - Circuit Diagram
G07592401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
