Parts Location: Illustration

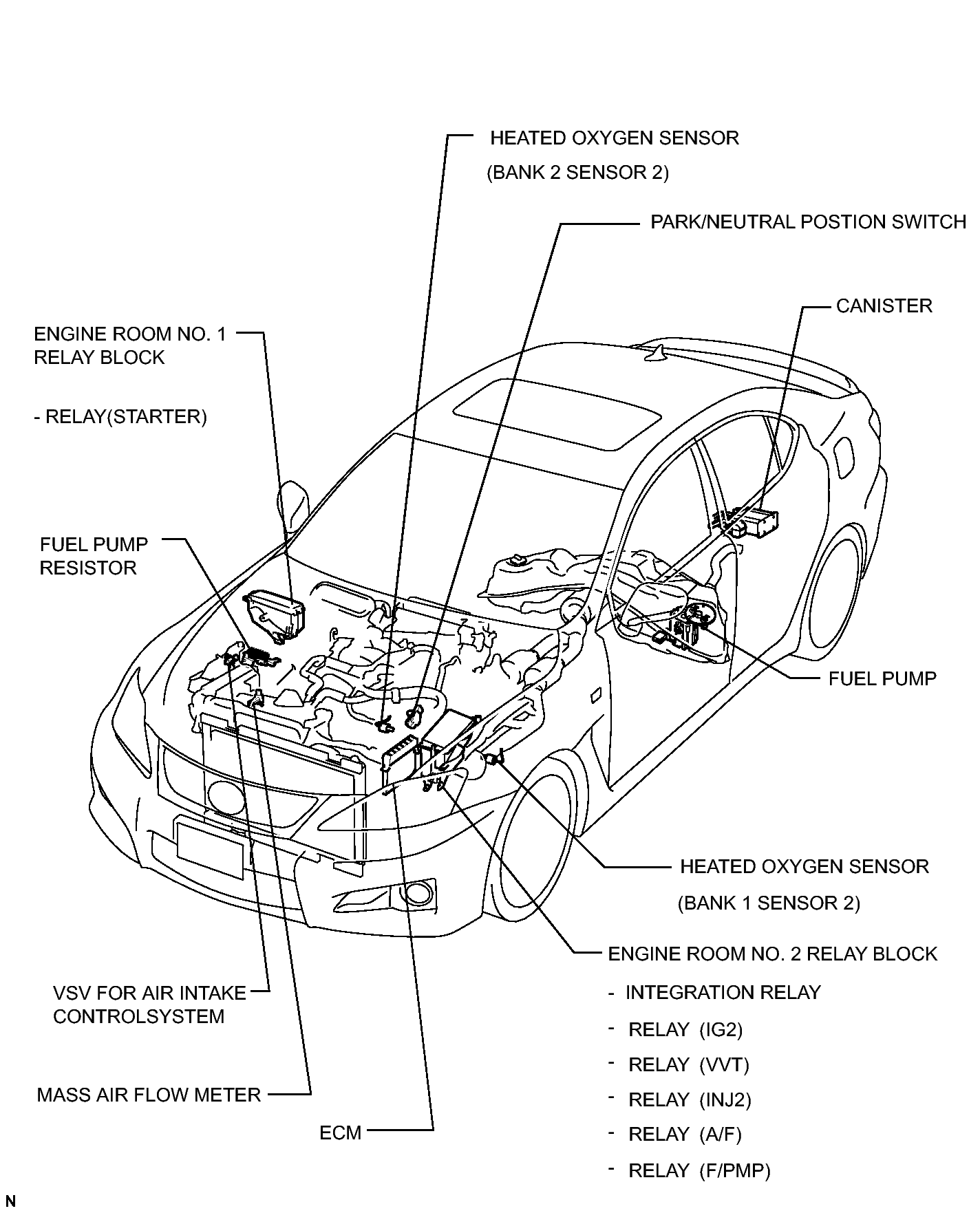

Fig 1: Locating SFI System Parts (1 Of 6)
GTY130118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating SFI System Parts (2 Of 6)
GTY148717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating SFI System Parts (3 Of 6)
GTY122066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Locating SFI System Parts (4 Of 6)
GTY126428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

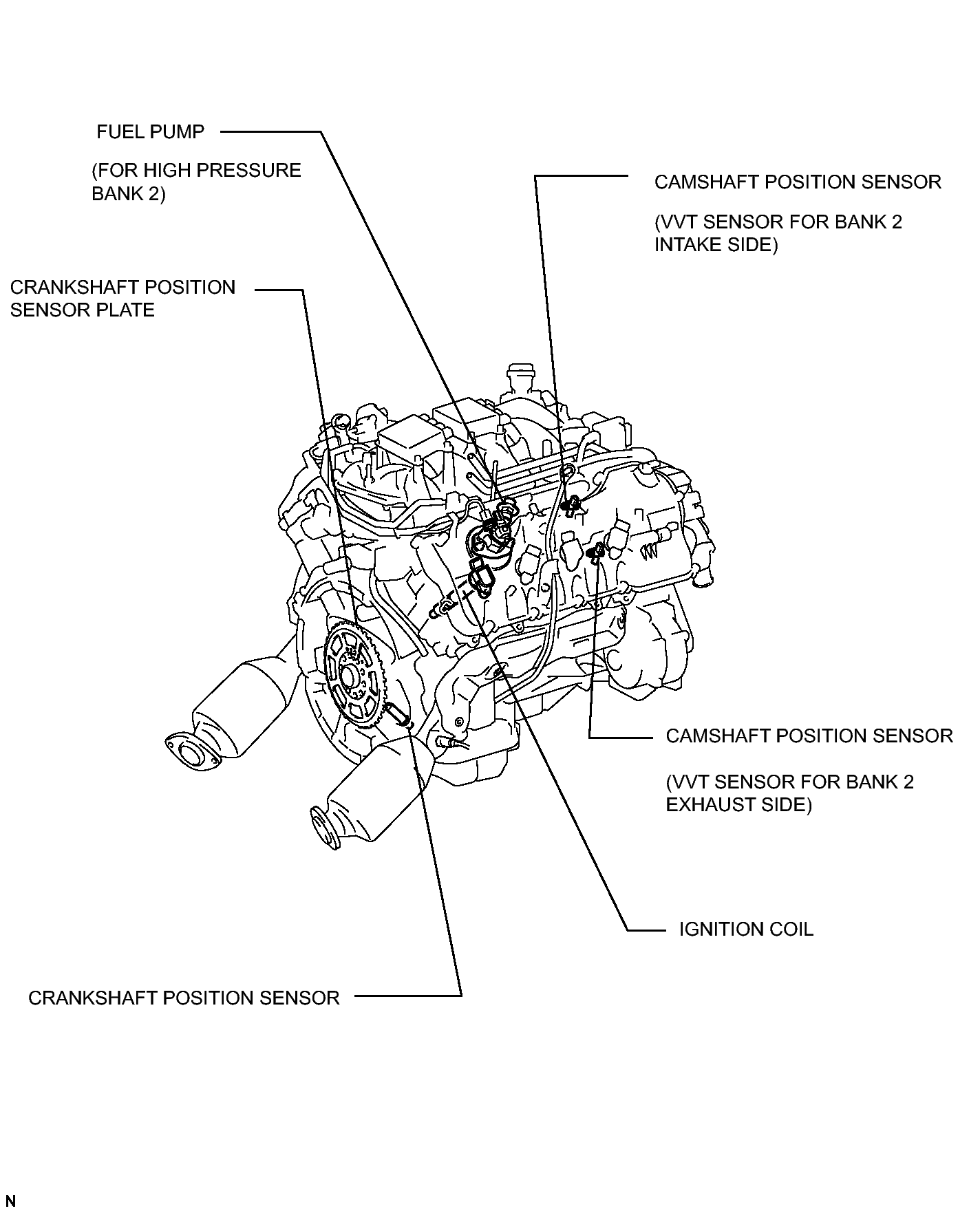

Fig 1: Locating SFI System Parts (5 Of 6)
GTY148718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

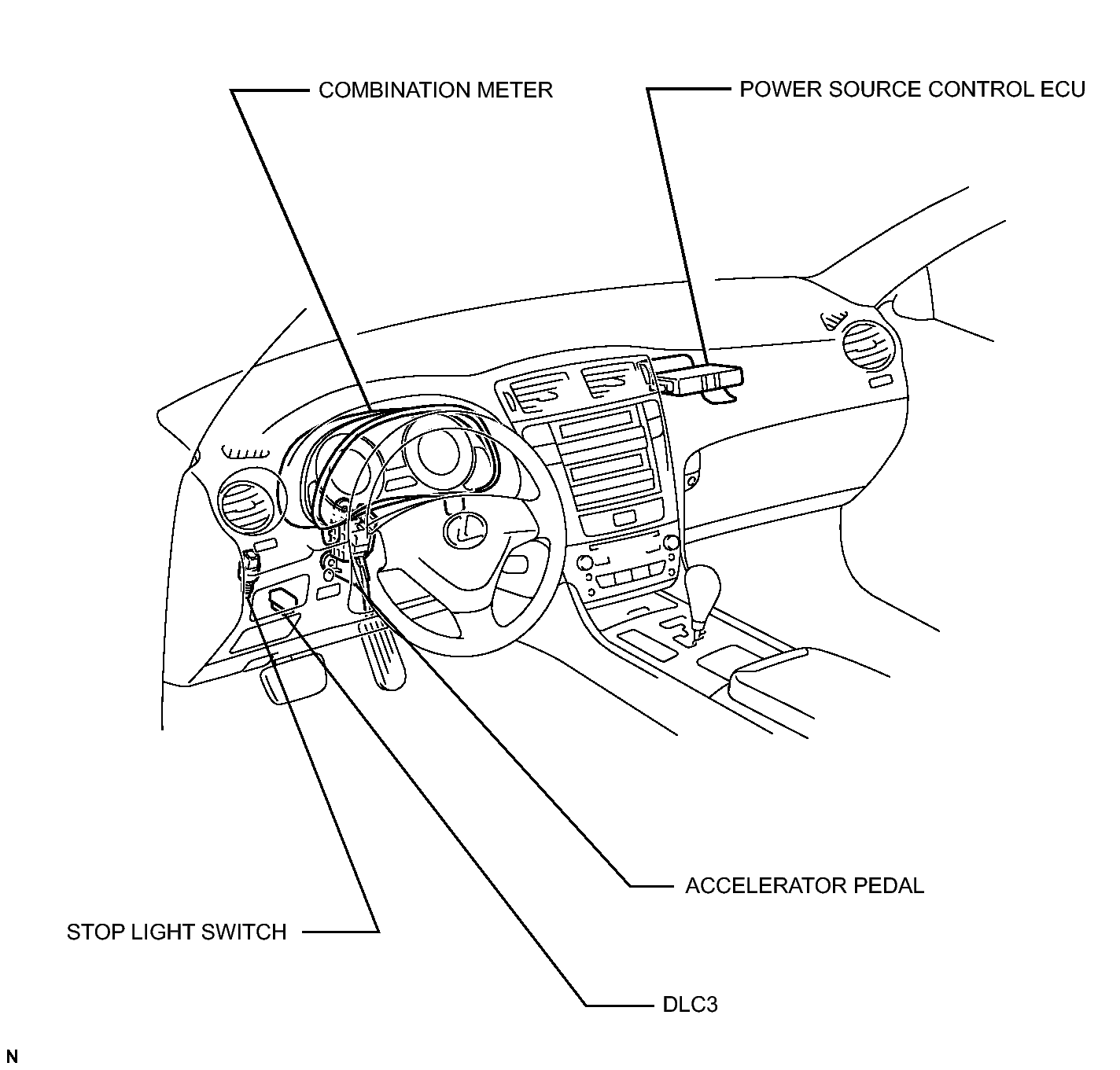

Fig 1: Locating SFI System Parts (6 Of 6)
GTY120892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
