Center Power Outlet Socket: Components: Illustration

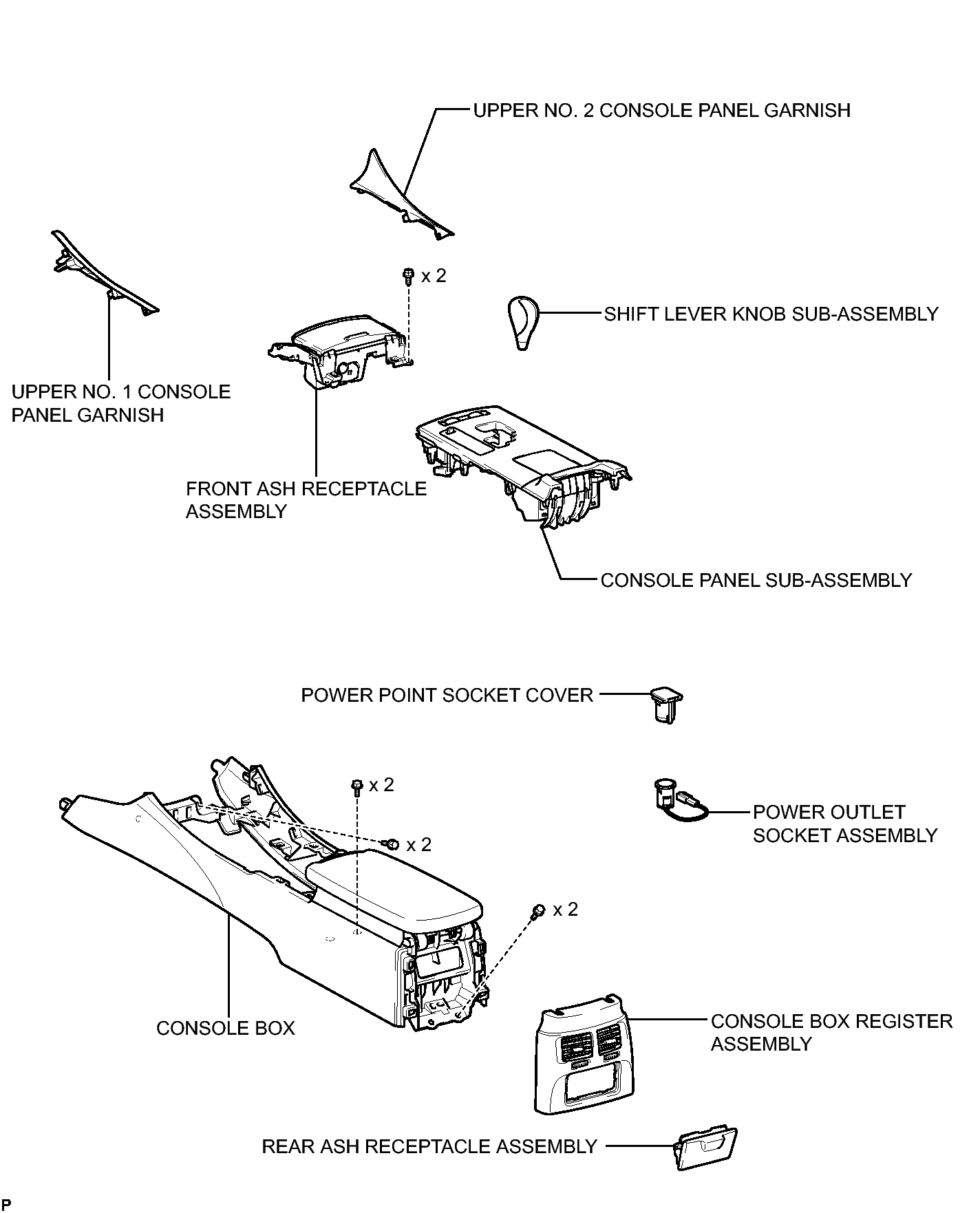

Fig 1: Identifying Center Power Outlet Socket Replacement Components

GTY154312

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
