Pattern Select Switch Circuit: Procedure

1. Disconnect the connector of pattern select switch. Refer to REMOVAL .
2. Measure the resistance according to the value(s) in the table below.

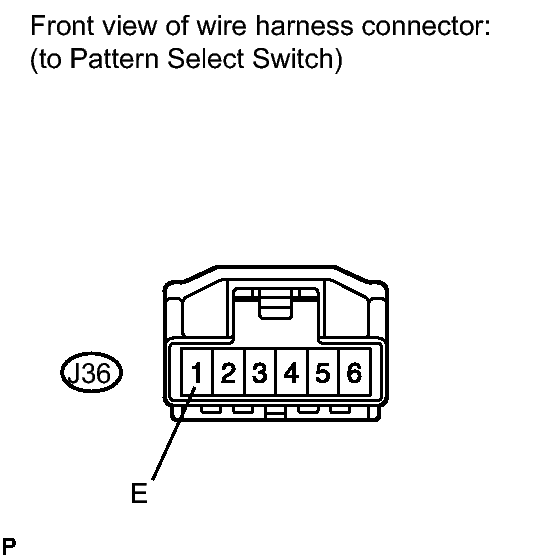

   Fig 1: Identifying J36 Pattern Select Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J36-1 (E) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the resistance according to the value(s) in the table below.

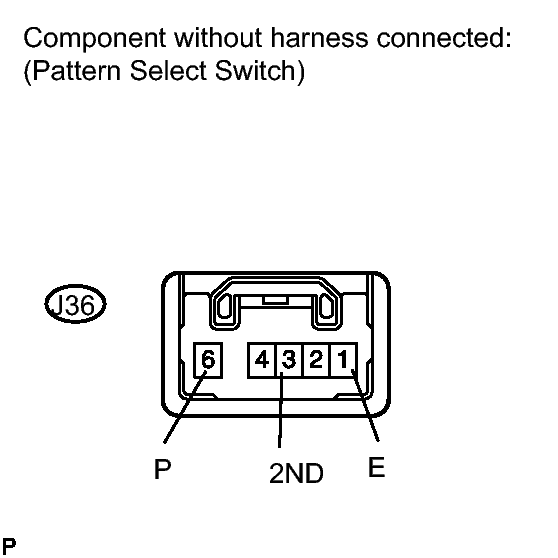

   Fig 2: Identifying J36 Pattern Select Switch Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   1 (E) - 6 (P)	Press continuously pattern select switch (SPORT)	Below 1 Ω
   	Release pattern select switch (SPORT)	10 kΩ or higher
   1 (E) - 3 (2ND)	Press continuously pattern select switch (SNOW)	Below 1 Ω
   	Release pattern select switch (SNOW)	10 kΩ or higher

NG → See step   5

OK: Go to next step

1. Connect the connector of pattern select switch.

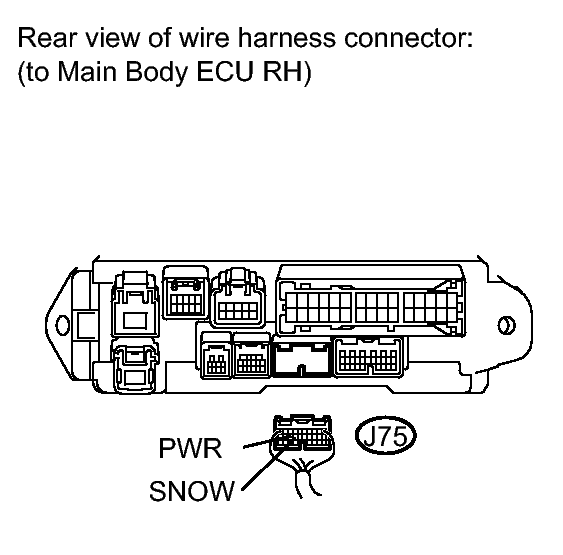

   Fig 3: Identifying J75 Main Body ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the cowl side junction block (main body ECU RH) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J75-18 (PWR) - Body ground	Press continuously pattern select switch (SPORT)	Below 1 Ω
   	Release pattern select switch (SPORT)	10 kΩ or higher
   J75-17 (SNOW) - Body ground	Press continuously pattern select switch (SNOW)	Below 1 Ω
   	Release pattern select switch (SNOW)	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   4
