IG Power Source Circuit: Procedure

1. Remove the ECU-IG RH fuse from the main body ECU RH (cowl side junction block RH).
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   ECU-IG RH fuse	Always	Below 1 Ω

NG → REPLACE FUSE

OK: Go to next step

1. Disconnect the J28 connector from the multiplex tilt and telescopic ECU.

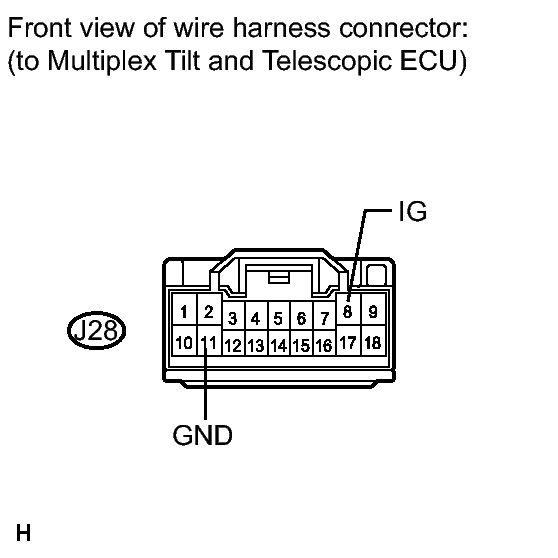

   Fig 1: Identifying Multiplex Tilt And Telescopic ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Switch Condition	Specified Condition
   J28-8 (IG) - J28-11 (GND)	Engine switch on (IG)	11 to 14 V

NG → See step   3

OK → See step   5

1. Measure the resistance according to the value(s) in the table below.

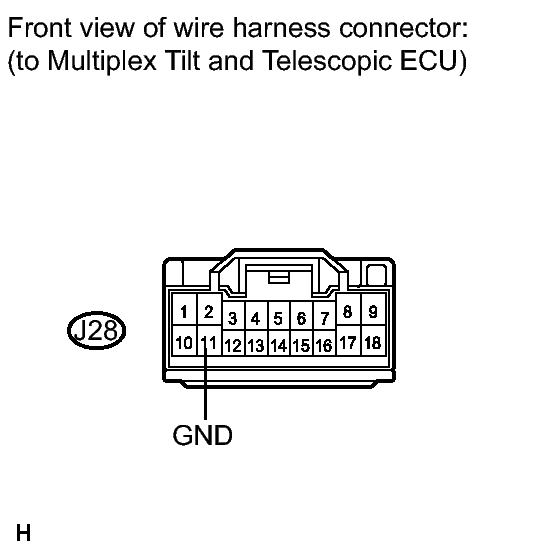

   Fig 2: Identifying Multiplex Tilt And Telescopic ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J28-11 (GND) - Body ground	Always	Below 1 Ω

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Measure the voltage according to the value(s) in the table below.

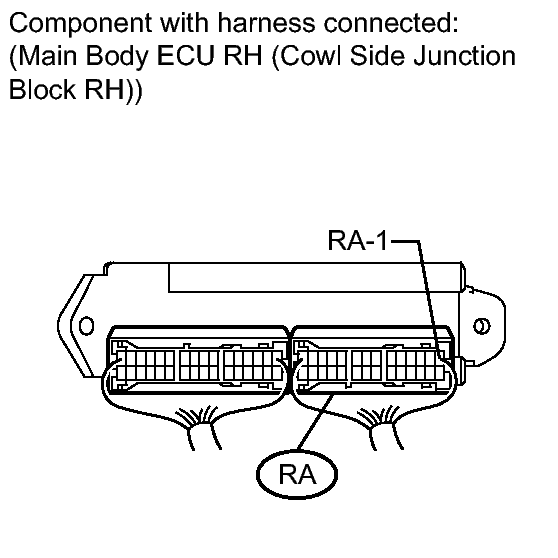

   Fig 3: Identifying Multiplex Tilt And Telescopic ECU Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Voltage

   Tester Condition	Switch Condition	Specified Condition
   RA-1 - Body ground	Engine switch on (IG)	11 to 14 V

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR (MAIN BODY ECU RH (COWL SIDE JUNCTION BLOCK RH) - BATTERY)

OK → REPAIR OR REPLACE HARNESS OR CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - MAIN BODY ECU RH)
