ECM Power Source Circuit: Wiring Diagram

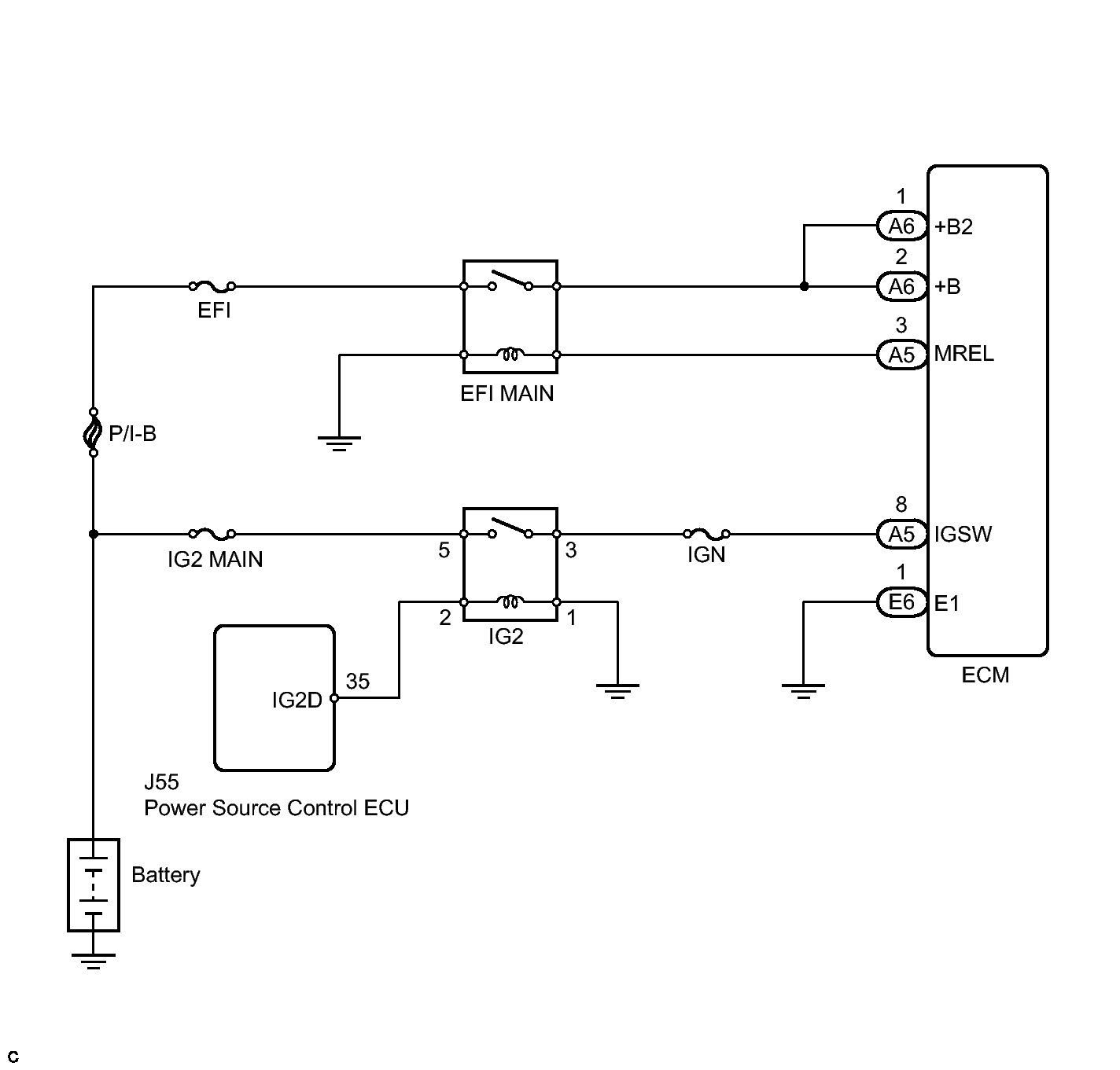

Fig 1: ECM Power Source Circuit - Wiring Diagram

GTY121864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
