Engine Room Relay Block No. 2 Assembly And Engine Room Junction Block No. 2 Assembly Inner Circuit

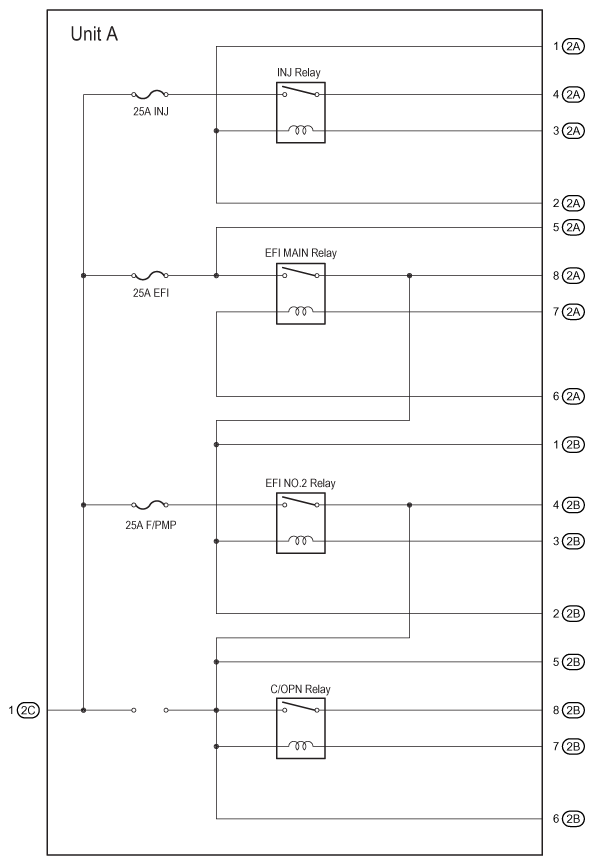

Fig 1: Engine Room R/B No. 2 Assembly And J/B No. 2 Assembly Inner Circuit Diagram (1 Of 3) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 AND J/B NO. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
INJ Relay
EFI Main Relay
EFI No.2 Relay
C/OPN Relay

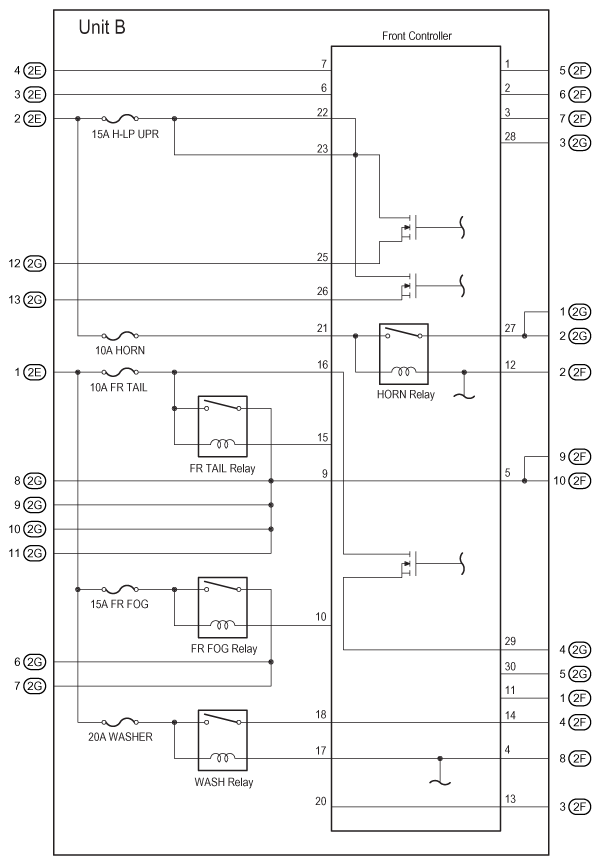

Fig 2: Engine Room R/B No. 2 Assembly And J/B No. 2 Assembly Inner Circuit Diagram (2 Of 3) With Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

ENGINE ROOM R/B NO. 2 AND J/B NO. 2 INNER CIRCUIT RELAY IDENTIFICATION

RELAY DESCRIPTION
Horn Relay
FR Tail Relay
FR Fog Relay
Wash Relay

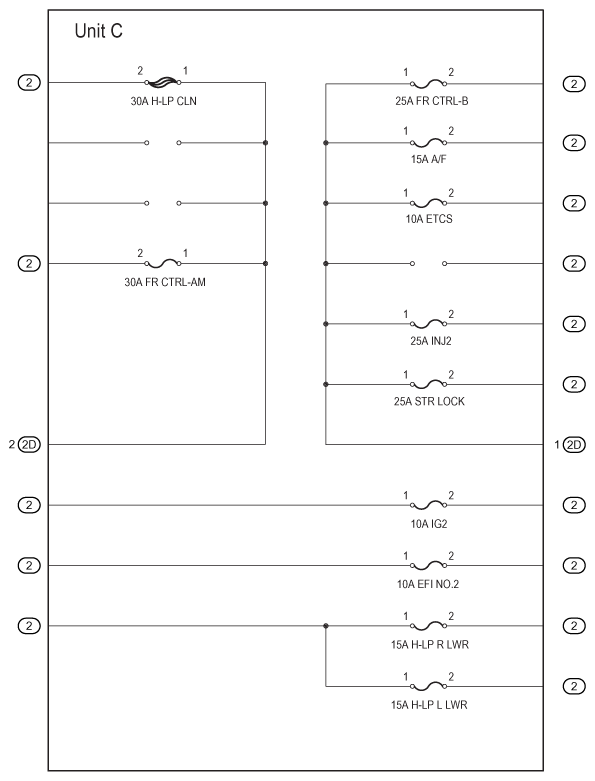

Fig 3: Engine Room R/B No. 2 Assembly And J/B No. 2 Assembly Inner Circuit Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
