DTC C0210/33: Rear Speed Sensor RH Circuit; DTC C0215/34: Rear Speed Sensor LH Circuit; DTC C1273/73: Low Output Signal of Rear Speed Sensor RH (Test Mode DTC); DTC C1274/74: Low Output Signal of Rear Speed Sensor LH (Test Mode DTC): Procedure

1. Using the Techstream, check for any momentary interruptions in the wire harness and connector corresponding to a DTC. Refer to CHECK FOR INTERMITTENT PROBLEMS .
   MOMENTARY INTERRUPTION CHECK



   Tester Display	Measurement Item / Range	Normal Condition	Diagnostic Note
   RR Speed Open	Rear speed sensor RH open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-
   RL Speed Open	Rear speed sensor LH open detection / ERROR or NORMAL	ERROR: Momentary interruption NORMAL: Normal	-

   Result

   Result	Proceed to
   There are momentary interruptions	A
   There are no momentary interruptions	B
   There is a constant open circuit	C

   HINT:

   Perform the above inspection before removing the sensor and connector.

C → See step   7

B → See step   4

A: Go to next step

1. Turn the engine switch off.
2. Repair or replace the harness or connector.
3. Check for any momentary interruption between the skid control ECU and the rear speed sensor. Refer to CHECK FOR INTERMITTENT PROBLEMS .
4. Check that there is no momentary interruption.

NEXT: Go to next step

1. Turn the engine switch off.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR .
3. Start the engine.
4. Drive the vehicle at a speed of 30 km/h (18 mph) or more for at least 60 seconds.
5. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTCs (C0210/33 and/or C0215/34) are output	A
   DTCs (C0210/33 and C0215/34) are not output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → END

A: Go to next step

1. Turn the engine switch off.
2. Connect the Techstream to the DLC3.
3. Start the engine.
4. Select the Data List mode on the Techstream. Refer to DATA LIST / ACTIVE TEST .
   DATA LIST



   Tester Display	Measurement Item / Range	Normal Condition	Diagnostic Note
   RR Wheel Speed	Rear wheel speed sensor RH reading / min.: 0 km/h (0 mph), max.: 326.4 km/h (202 mph)	Actual wheel speed	Similar speed as indicated on speedometer
   RL Wheel Speed	Rear wheel speed sensor LH reading / min.: 0 km/h (0 mph), max.: 326.4 km/h (202 mph)	Actual wheel speed	Similar speed as indicated on speedometer

5. Check that there is almost no difference between the speed value output from the speed sensor displayed on the Techstream and the speed value displayed on the speedometer when driving the vehicle.

   HINT:

   Factors that affect the indicated vehicle speed include tire size, tire inflation, and tire wear. The speed indicated on the speedometer has an allowable margin of error. This can be tested using a speedometer tester (calibrated chassis dynamometer). For details about testing and the margin of error, see the reference chart. Refer to ON-VEHICLE INSPECTION .

   OK

   The speed value output from the speed sensor displayed on the Techstream is almost the same as the actual vehicle speed.

   TESTER DISPLAY



   Tester Display	Measurement Item / Range	Normal Condition	Diagnostic Note
   RR Wheel Direction	Rear wheel RH direction / FORWARD or BACK	FORWARD: Forward BACK: Backward	-
   RL Wheel Direction	Rear wheel LH direction / FORWARD or BACK	FORWARD: Forward BACK: Backward	-

6. Check that the sensor signal conforms to the wheel rotation direction.

   OK

   The correct wheel rotation direction is displayed.

NG → See step   7

OK: Go to next step

1. Turn the engine switch off.
2. Perform sensor check in Test Mode Procedure. Refer to TEST MODE PROCEDURE .

   OK

   All Test Mode DTCs are cleared.

NG → See step   7

OK: Go to next step

1. Turn the engine switch off.
2. Clear the DTCs. Refer to DTC CHECK / CLEAR .
3. Start the engine.
4. Drive the vehicle at a speed of 30 km/h (18 mph) or more for at least 60 seconds.
5. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTCs (C0210/33 and C0215/34) are not output	A
   DTCs (C0210/33 and/or C0215/34) are output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → See step   13

A → See step   17

1. Turn the engine switch off.

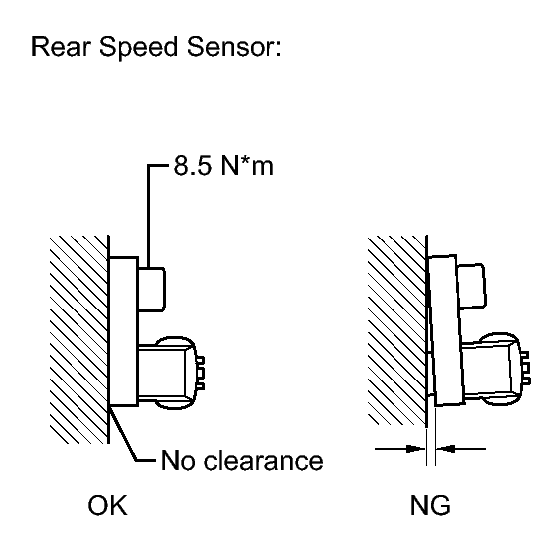

   Fig 1: Checking Rear Speed Sensor Installation

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the speed sensor installation.

   OK

   There is no clearance between the sensor and rear axle carrier.

   The installation bolt is tightened properly.

   Torque

   8.5 N*m (87 kgf*cm, 75 in.*lbf)

   NOTE:

   Check the speed sensor signal after installation. Refer to TEST MODE PROCEDURE .

NG → See step   19

OK: Go to next step

1. Remove the rear speed sensor. Refer to REMOVAL .
2. Check the speed sensor tip.

   OK

   No scratches or foreign matter on the sensor tip.

   NOTE:

   Check the speed sensor signal after cleaning or replacement. Refer to TEST MODE PROCEDURE .

NG → CLEAN OR REPLACE REAR SPEED SENSOR

OK: Go to next step

1. Install the rear speed sensor.

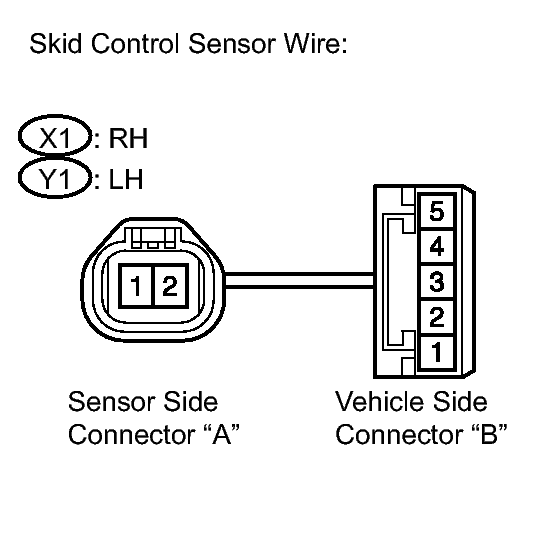

   Fig 2: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
3. Disconnect the skid control sensor wire.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   for RH

   for LH

   Tester Connection	Condition	Specified Condition
   X1 ("A"-2) - X1 ("B"-4)	Always	Below 1 Ω
   X1 ("A"-2) - X1 ("B"-5)	Always	10 kΩ or higher
   X1 ("A"-2) - Body ground	Always	10 kΩ or higher
   X1 ("A"-1) - X1 ("B"-5)	Always	Below 1 Ω
   X1 ("A"-1) - X1 ("B"-4)	Always	10 kΩ or higher
   X1 ("A"-1) - Body ground	Always	10 kΩ or higher

   Tester Connection	Condition	Specified Condition
   Y1 ("A"-2) - Y1 ("B"-4)	Always	Below 1 Ω
   Y1 ("A"-2) - Y1 ("B"-5)	Always	10 kΩ or higher
   Y1 ("A"-2) - Body ground	Always	10 kΩ or higher
   Y1 ("A"-1) - Y1 ("B"-5)	Always	Below 1 Ω
   Y1 ("A"-1) - Y1 ("B"-4)	Always	10 kΩ or higher
   Y1 ("A"-1) - Body ground	Always	10 kΩ or higher

   NOTE:

   Check the speed sensor signal after replacement. Refer to TEST MODE PROCEDURE .

NG → REPLACE SKID CONTROL SENSOR WIRE

OK: Go to next step

1. Reconnect the skid control sensor wire.

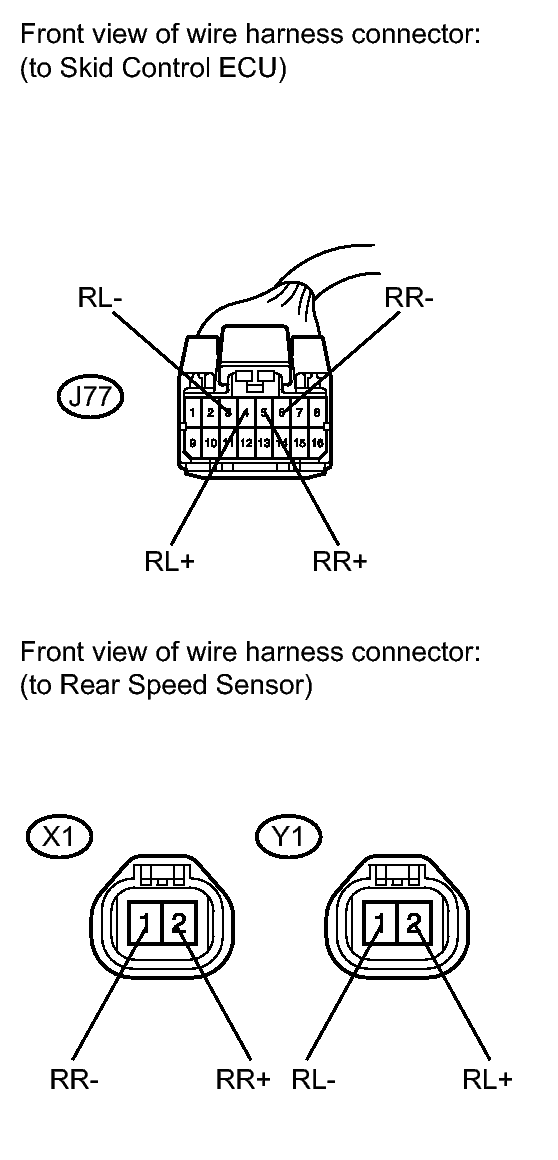

   Fig 3: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Make sure that there is no looseness at the locking part and the connecting part of the connectors.
3. Disconnect the skid control ECU connector and the rear speed sensor connector.
4. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   for RH

   for LH

   Tester Connection	Condition	Specified Condition
   J77-5 (RR+) - X1-2 (RR+)	Always	Below 1 Ω
   J77-5 (RR+) - Body ground	Always	10 kΩ or higher
   J77-6 (RR-) - X1-1 (RR-)	Always	Below 1 Ω
   J77-6 (RR-) - Body ground	Always	10 kΩ or higher

   Tester Connection	Condition	Specified Condition
   J77-4 (RL+) - Y1-2 (RL+)	Always	Below 1 Ω
   J77-4 (RL+) - Body ground	Always	10 kΩ or higher
   J77-3 (RL-) - Y1-1 (RL-)	Always	Below 1 Ω
   J77-3 (RL-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the skid control ECU connector.

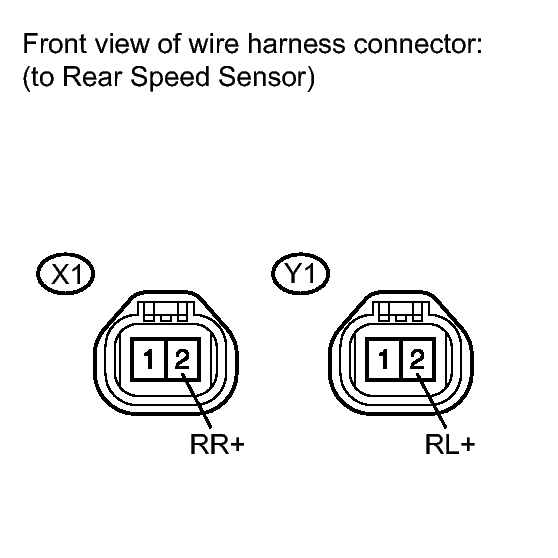

   Fig 4: Identifying Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the engine switch on (IG).
3. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   for RH

   for LH

   Tester Connection	Switch Condition	Specified Condition
   X1-2 (RR+) - Body ground	Engine switch on (IG)	7.5 to 14 V

   Tester Connection	Switch Condition	Specified Condition
   Y1-2 (RL+) - Body ground	Engine switch on (IG)	7.5 to 14 V

NG → See step   18

OK: Go to next step

1. Turn the engine switch off.
2. Reconnect the rear speed sensor connector.
3. Clear the DTCs. Refer to DTC CHECK / CLEAR .
4. Start the engine.
5. Drive the vehicle at a speed of 30 km/h (18 mph) or more for at least 60 seconds.
6. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTCs (C0210/33 and/or C0215/34) are output	A
   DTCs (C0210/33 and C0215/34) are not output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → See step   17

A: Go to next step

1. Turn the engine switch off.
2. Replace the rear speed sensor. Refer to REMOVAL .
   NOTE:

   Check the speed sensor signal after replacement. Refer to TEST MODE PROCEDURE .

NEXT: Go to next step

1. Clear the DTCs. Refer to DTC CHECK / CLEAR .
2. Start the engine.
3. Drive the vehicle at a speed of 30 km/h (18 mph) or more for at least 60 seconds.
4. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTCs (C0210/33 and/or C0215/34) are output	A
   DTCs (C0210/33 and C0215/34) are not output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → END

A: Go to next step

1. Turn the engine switch off.
2. Replace the rear axle hub and bearing assembly (rear speed sensor rotor). Refer to REMOVAL .

   HINT:

   The rear speed sensor rotor is incorporated into the rear axle hub and bearing assembly.

   If the rear speed sensor rotor needs to be replaced, replace it together with the rear axle hub and bearing assembly.

   NOTE:

   Check the speed sensor signal after replacement. Refer to TEST MODE PROCEDURE .

NEXT: Go to next step

1. Clear the DTCs. Refer to DTC CHECK / CLEAR .
2. Start the engine.
3. Drive the vehicle at a speed of 30 km/h (18 mph) or more for at least 60 seconds.
4. Check if the same DTC is recorded. Refer to DTC CHECK / CLEAR .

   Result

   Result	Proceed to
   DTCs (C0210/33 and/or C0215/34) are output	A
   DTCs (C0210/33 and C0215/34) are not output	B

   HINT:

   If troubleshooting has been carried out according to Problem Symptoms Table, refer back to the table and proceed to the next step. Refer to PROBLEM SYMPTOMS TABLE .

B → END

A → See step   18
