System Diagram

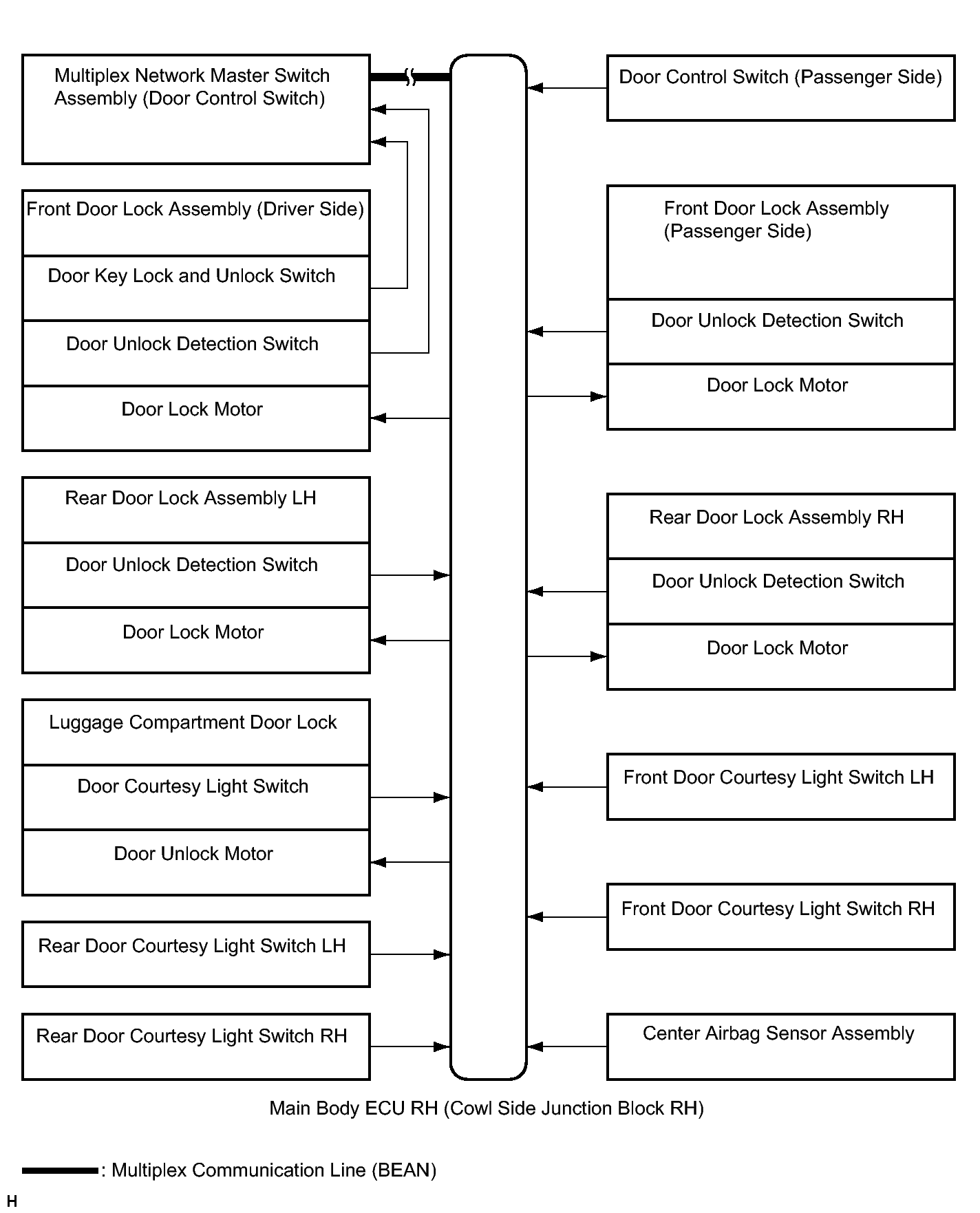

Fig 1: Power Door Lock Control System Diagram

Transmitting ECU (Transmitter)	Receiving ECU (Receiver)	Signal	Communication Method
Multiplex Network Master Switch Assembly	Main Body ECU RH (Cowl Side Junction Block RH)	Driver side door manual lock switch signal Door lock/unlock condition signal (Driver Side) Driver side door key-linked switch signal	BEAN (DOOR BUS)
Main Body ECU RH (Cowl Side Junction Block RH)	Multiplex Network Master Switch Assembly	Door lock/unlock condition signal (Except Driver Side) Courtesy switch signal	BEAN (DOOR BUS)
