Display Signal Circuit between Navigation ECU and Multi-display: Procedure

1. Disconnect the navigation ECU connector and multi-display connector.

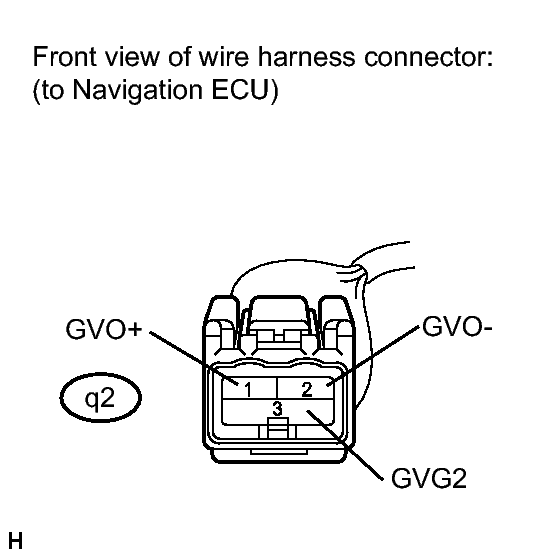

   Fig 1: Identifying Terminals Of Navigation ECU Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

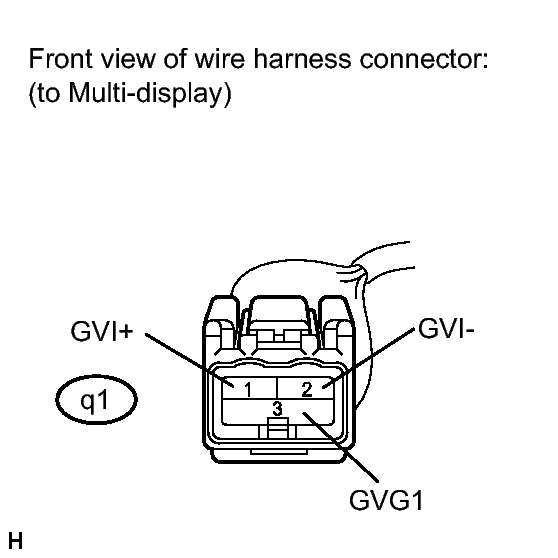

   Fig 2: Identifying Terminals Of Multi-Display Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   q2-1 (GVO+) - q1-1 (GVI+)	Always	Below 1 Ω
   q2-2 (GVO-) - q1-2 (GVI-)	Always	Below 1 Ω
   q2-3 (GVG2) - q1-3 (GVG1)	Always	Below 1 Ω
   q2-1 (GVO+) - Body ground	Always	10 kΩ or higher
   q2-2 (GVO-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK → See step   2
