Display Signal Circuit between Multi-display and Radio Receiver: Procedure

1. Disconnect the multi-display connector and radio receiver connector.

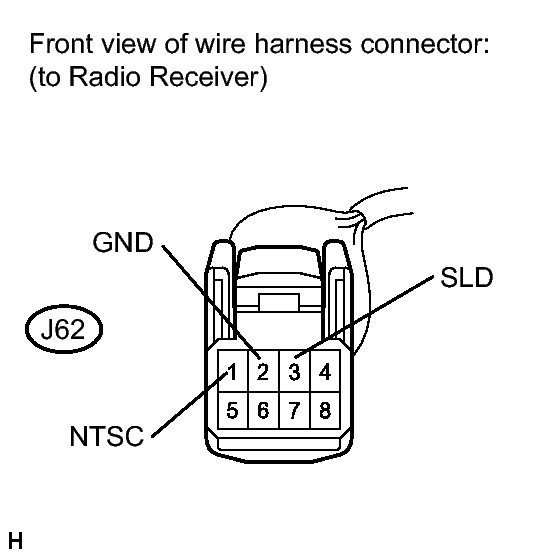

   Fig 1: Identifying Terminals Of Multi-Display Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the resistance according to the value(s) in the table below.

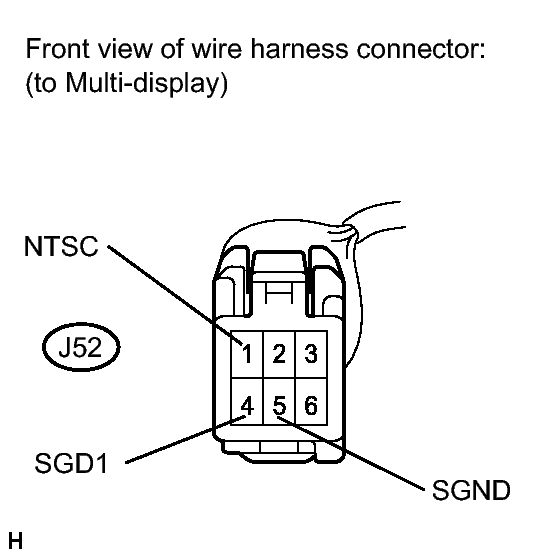

   Fig 2: Identifying Terminals Of Radio Receiver Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J62-2 (GND) - J52-4 (SGD1)	Always	Below 1 Ω
   J62-1 (NTSC) - J52-1 (NTSC)	Always	Below 1 Ω
   J62-3 (SLD) - J52-5 (SGND)	Always	Below 1 Ω
   J62-1 (NTSC) - Body ground	Always	10 kΩ or higher
   J62-2 (GND) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the radio receiver connector.

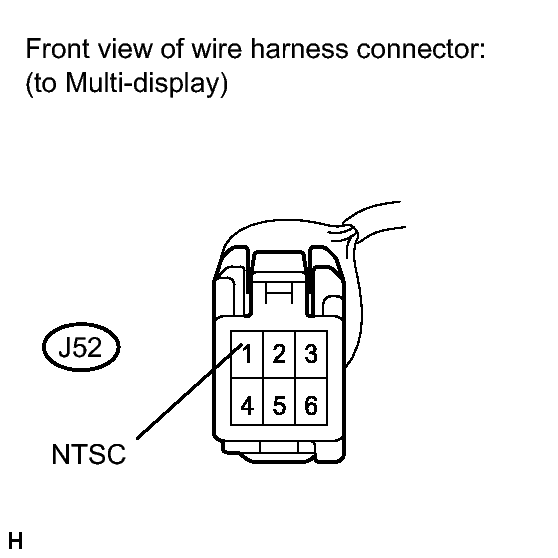

   Fig 3: Identifying Terminals Of Radio Receiver Connector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the waveform according to the table below.
   Fig 4: Identifying Signal Waveform

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   Tester Connection	Condition	Specified Condition
   J52-1 (NTSC) - Body ground	DVD display is ON	A waveform synchronized with display signals is output

   HINT:

   The waveform pattern may differ from that shown in the illustration due to differences in oscilloscope settings. A normal radio receiver operating condition can be determined if any waveform is output.

   Oscilloscope wave

   Terminal: J52-1 (NTSC) - Body ground

   Setting: 200 mV/DIV. 10 μs/DIV.

   Condition: DVD display is on.

NG → See step   4

OK → See step   3
