DTC 01-DD: Master Reset; DTC 01-E1: Voice Processing Device ON Error: Procedure

  1. CHECK MULTI-DISPLAY POWER SOURCE CIRCUIT

    Refer to Multi-display Power Source Circuit. Refer to Multi-display Power Source Circuit .

    If the power source circuit is operating normally, proceed to the next step.

    NEXT: Go to next step

  2. INSPECT RADIO RECEIVER
    1. Disconnect the radio receiver connectors.
      Fig 1: Identifying Connector Terminals Of Radio Receiver
      GTY153742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      J66-5 (ATX+) -
      J66-15 (ATX-)
      Always 60 to 80 Ω
      J63-9 (TX+) -
      J63-10 (TX-)
      Always 60 to 80 Ω

    NG → See step   6

    OK: Go to next step

  3. IDENTIFY THE COMPONENT WHICH HAS STORED THIS CODE
    1. Enter the diagnostic mode.

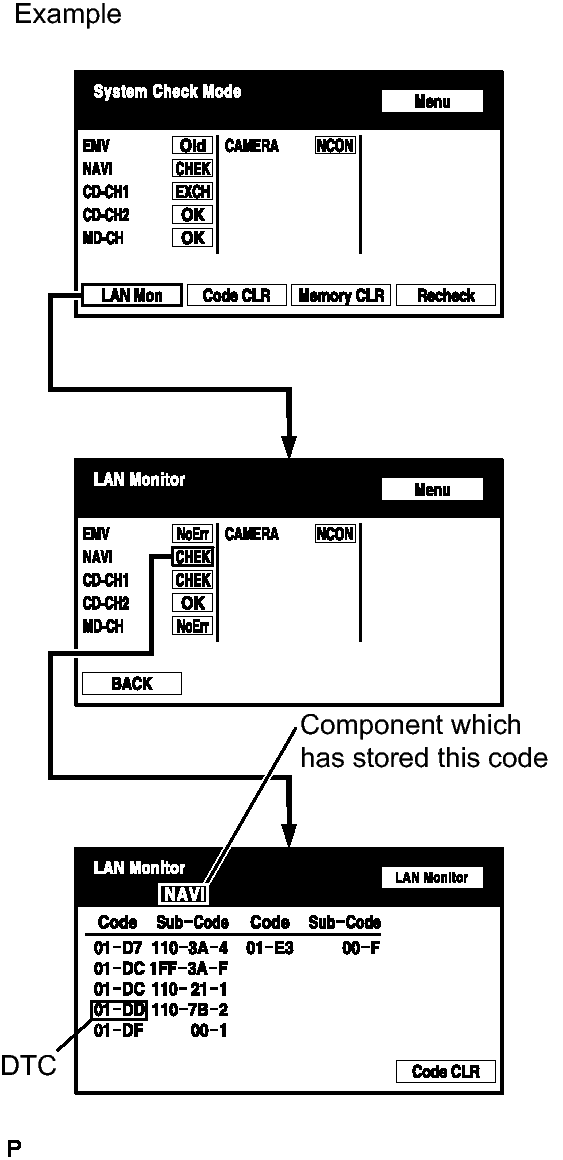

      Fig 2: Diagnosis Display - Lan Monitor Screen
      GTY151626Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
    3. Identify the component which has stored this code.
      COMPONENT TABLE

      Display Component
      AUDIO H/U Radio receiver
      DSP-AMP Stereo component amplifier
      G/W Gateway ECU
      NAVI Navigation ECU

      HINT:

      "NAVI" is the component which has stored this code in the example shown in the illustration.

    NEXT: Go to next step

  4. CHECK HARNESS AND CONNECTOR (MULTI-DISPLAY - COMPONENT WHICH HAS STORED THIS CODE)

    HINT:

    For details of the connectors, refer to Terminals of ECU. Refer to TERMINALS OF ECU .

    1. Referring to AVC-LAN Wiring Diagram below, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
      1. Disconnect all connectors between the multi-display and the component which has stored this code.
      2. Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.

        OK

        There is no open or short circuit.

        Fig 3: AVC-LAN -- Wiring Diagram
        GTY153743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. REPLACE MULTI-DISPLAY
    1. Replace the multi-display with a known good one and check if the same problem occurs again.

      OK

      Same problem does not occur.

    NG → REPLACE COMPONENT WHICH HAS STORED THIS CODE

    OK → END

  6. REPLACE RADIO RECEIVER. Refer to  REMOVAL
