Display Signal Circuit between Multi-display and Television Camera Assembly: Procedure

1. Disconnect the J51 connector from the multi-display.
   Fig 1: Identifying J51 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disconnect the Q43 connector from the television camera assembly.
   Fig 2: Identifying Q43 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   Q43-4 (CB+) - J51-13 (CA+)	Always	Below 1 Ω
   Q43-3 (CGND) - J51-14 (CGND)	Always	Below 1 Ω
   Q43-2 (CV+) - J51-27 (V+)	Always	Below 1 Ω
   Q43-1 (CV-) - J51-28 (V-)	Always	Below 1 Ω
   Q43-4 (CB+) - Body ground	Always	10 kΩ or higher
   Q43-3 (CGND) - Body ground	Always	10 kΩ or higher
   Q43-2 (CV+) - Body ground	Always	10 kΩ or higher
   Q43-1 (CV-) - Body ground	Always	10 kΩ or higher

NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to next step

1. Reconnect the J51 connector to the multi-display.
   Fig 3: Identifying Q43 Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   Q43-4 (CB+) - Q43-3 (CGND)	Engine switch on (IG). Shift lever is in R.	5.5 to 6.5 V

NG → See step   5

OK: Go to next step

1. Reconnect the J51 connector to the multi-display and the Q43 connector to the television camera assembly.
   Fig 4: Connecting J51 Connector To Multi-Display And Q43 Connector To Television Camera Assembly

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Check the waveform of the television camera assembly using an oscilloscope.

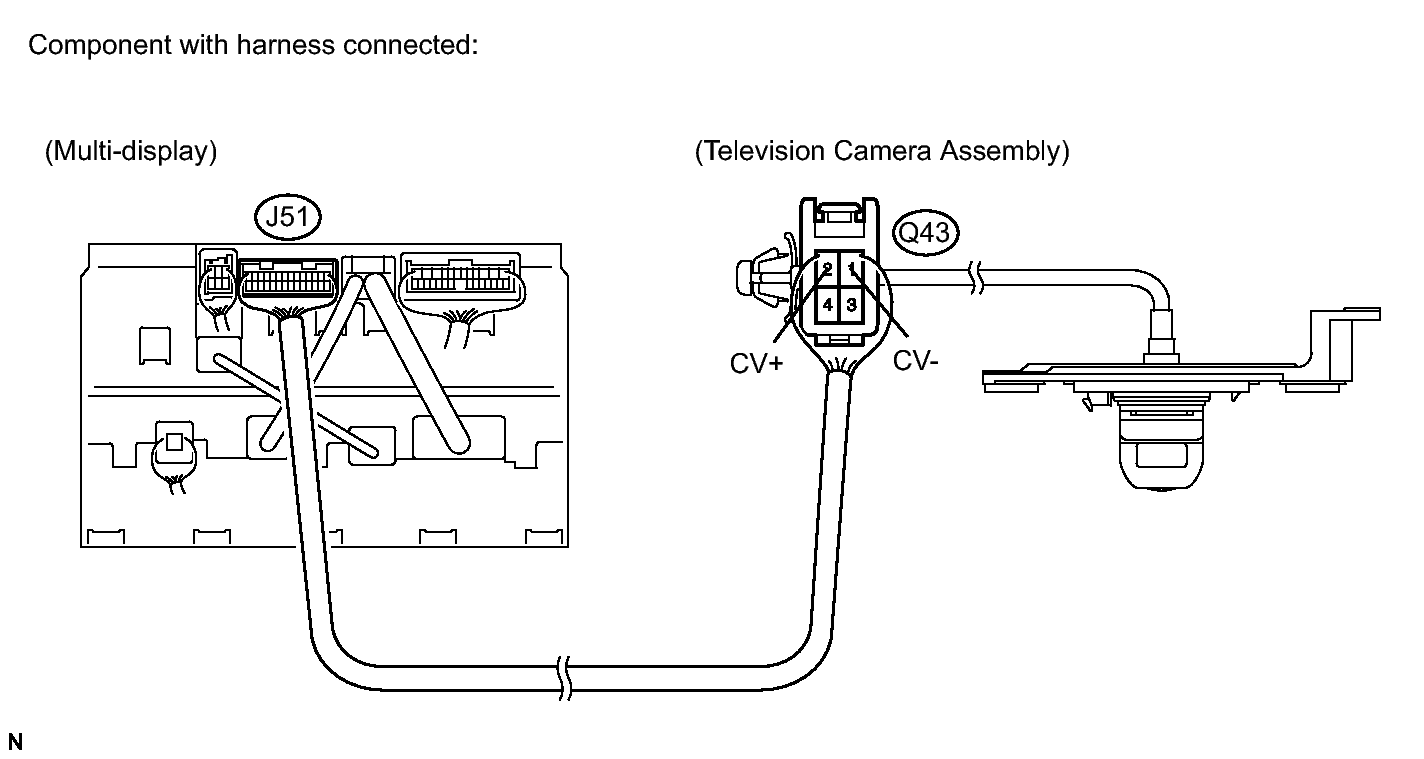

   Fig 5: Identifying Waveform 1

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Measurement terminal: Q43-2 (CV+) - Q43-1 (CV-)

      Measurement setting: 0.2 V/DIV, 50 μs/DIV

      Condition: Engine switch on (IG), Shift lever in R

      OK

      Pulses as shown in the illustration.

NG → See step   6

OK → See step   4
