Integration Control and Panel Assembly Power Source Circuit: Wiring Diagram

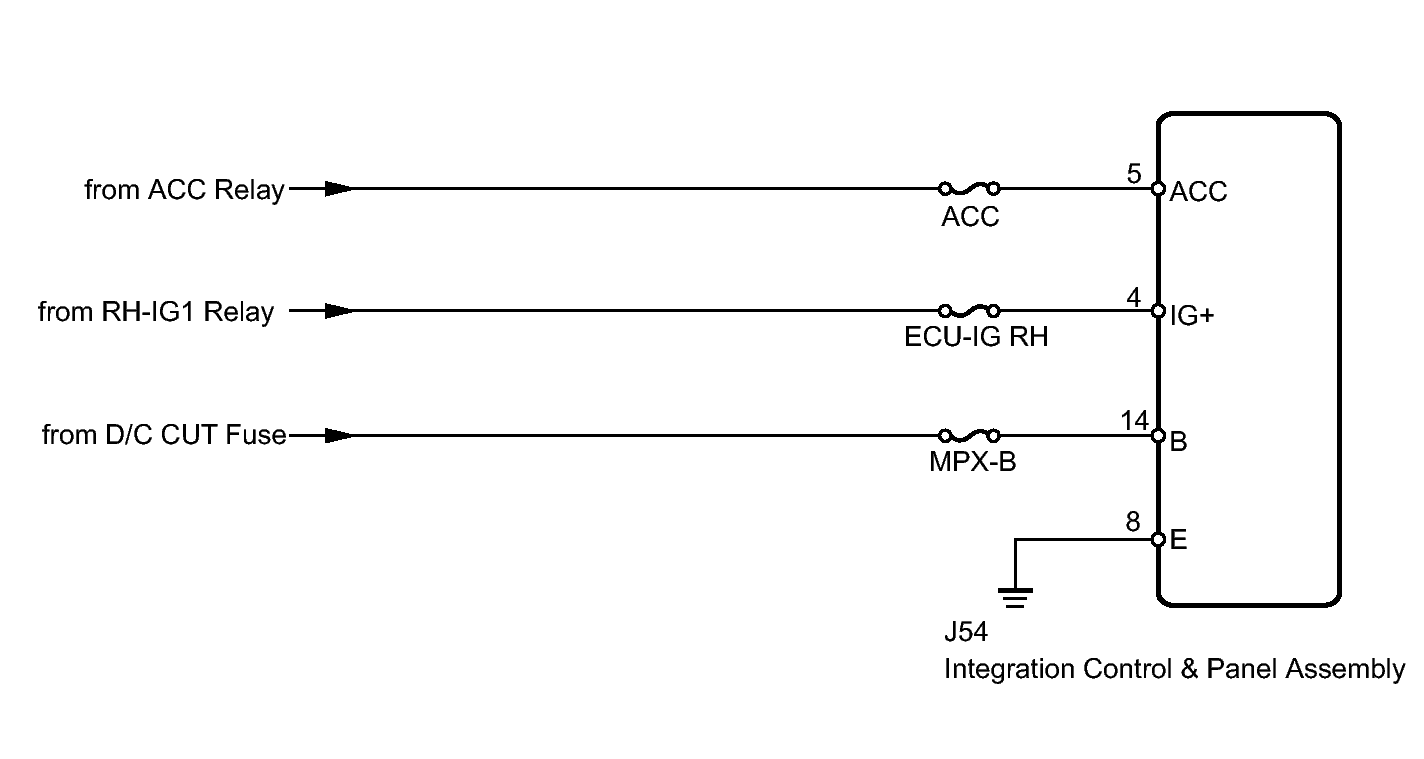

Fig 1: Integration Control & Panel Assembly Power Source Circuit - Wiring Diagram
GTY151617Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
