Gateway ECU Communication Stop Mode: Procedure
- CHECK WIRE HARNESS (BATT, ACC, IG, GND)
- Turn the engine switch off.

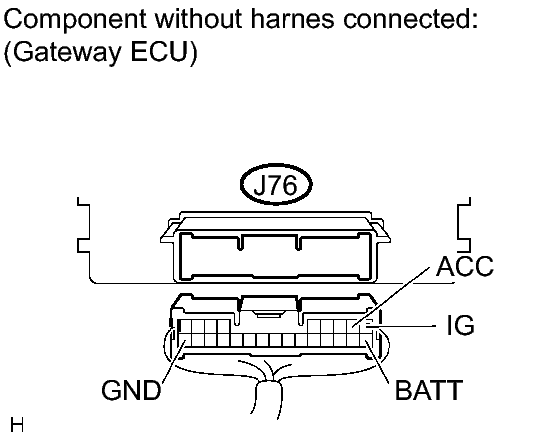

- Disconnect the gateway ECU connector (J76).
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection Condition Specified Value J76-24 (GND) - Body ground Always Below 1 Ω - Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection Condition Specified Value J76-10 (BATT) - Body ground Always 10 to 14 V J76-2 (ACC) - Body ground Engine switch on (IG) 10 to 14 V J76-1 (IG) - Body ground Engine switch on (IG) 10 to 14 V
NG → REPAIR OR REPLACE HARNESS OR CONNECTOR
OK → See step 2
- REPLACE GATEWAY ECU. Refer to REMOVAL
