Key Luggage Compartment Lock-in Prevention Function does not Operate: Procedure

  1. CHECK SMART ACCESS SYSTEM WITH PUSH-BUTTON START (ENTRY LUGGAGE COMPARTMENT OPEN FUNCTION)
    1. Check that the entry luggage compartment open function operates.

      Result

      Result Proceed to
      Entry luggage compartment door open function does not operate A
      Entry luggage compartment door open function operates B

    A → See step   11

    B: Go to next step

  2. CHECK WAVE ENVIRONMENT
    1. Bring the electrical key transmitter near the indoor electrical key oscillator (luggage compartment), and check that the entry luggage compartment lock-in prevention function operates.
      NOTE:

      If the key is brought within 0.2 m (0.656 ft.) of the indoor electrical key oscillator (luggage compartment), communication is not possible.

      HINT:

      • When the electrical key transmitter is brought near the indoor electrical key oscillator (luggage compartment), the possibility of wave interference decreases, and it can be determined if wave interference is causing the problem symptom.
      • If the operation check is normal, the possibility of wave interference is high. Also, added vehicle components may cause wave interference. If installed, remove them and perform the operation check.

      OK

      Entry functions operate normally.

    NG → See step   3

    OK → AFFECTED BY WAVE INTERFERENCE

  3. PERFORM KEY DIAGNOSTIC MODE INSPECTION
    1. Diagnostic mode inspection (indoor electrical key oscillator (luggage compartment))
      Fig 1: Inspecting Key Lock-In Prevention's Detection
      GTY138991Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Connect the Techstream to the DLC3.
      2. Turn the engine switch on (IG).
      3. Turn the Techstream on.
      4. Enter the following menus: Body Electrical / Utility / Smart Access / Communication Check (Key Diag mode) / Overhead + Luggage (inside).
      5. When the electrical key transmitter is held at the same height as the rear bumper upper surface and aligned with the center of the rear of the vehicle, check that the wireless door lock buzzer sounds.

        HINT:

        If the buzzer sounds, it can be determined that the luggage compartment interior transmitter is operating normally.

        OK

        Wireless door lock buzzer sounds.

    NG → See step   4

    OK → See step   12

  4. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - INDOOR ELECTRICAL KEY OSCILLATOR)
    1. Disconnect the certification ECU (smart key ECU assembly) connector.
    2. Disconnect the indoor electrical key oscillator (luggage compartment) connector.
      Fig 2: P33 & Q56 Connector Terminals
      GTY135928Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P33-16 (CG7B) - Q56-3 (CLGB) Always Below 1 Ω
      P33-15 (CLG7) - Q56-1 (CLG6) Always Below 1 Ω
      P33-16 (CG7B) - Body ground Always 10 kΩ or higher
      P33-15 (CLG7) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  5. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - DOOR CONTROL RECEIVER)
    1. Disconnect the door control receiver connector.
      Fig 3: Identifying P33 And P31 Connector Terminal
      GTY132224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P33-37 (ASEL) - P31-4 (ASEL) Always Below 1 Ω
      P33-37 (ASEL) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  6. CHECK HARNESS AND CONNECTOR (DOOR CONTROL RECEIVER - ELECTRICAL KEY ANTENNA)
    1. Disconnect the electrical key antenna connector.

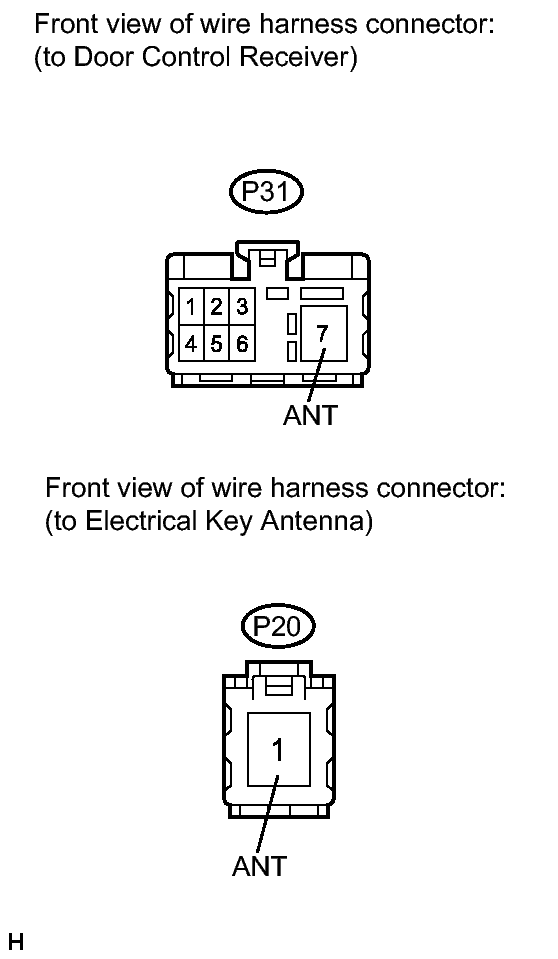

      Fig 4: Identifying P31 And P20 Connector Terminal
      GTY116691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      P31-7 (ANT) - P20-1 (ANT) Always Below 1 Ω
      P31-7 (ANT) - Body ground Always 10 kΩ or higher

    NG → REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to next step

  7. REPLACE INDOOR ELECTRICAL KEY OSCILLATOR (LUGGAGE COMPARTMENT)
    1. Replace the indoor electrical key oscillator (luggage compartment). Refer to REMOVAL .

    NEXT: Go to next step

  8. CHECK INDOOR ELECTRICAL KEY OSCILLATOR (OPERATION)
    1. Check that the entry function operates normally. Refer to OPERATION CHECK .

      OK

      Entry function operates normally.

    NG → See step   9

    OK → END (INDOOR ELECTRICAL KEY OSCILLATOR IS DEFECTIVE)

  9. REPLACE ELECTRICAL KEY ANTENNA
    1. Replace the electrical key antenna. Refer to REMOVAL .

    NEXT: Go to next step

  10. CHECK ELECTRICAL KEY ANTENNA (OPERATION)
    1. Check that the entry function operates normally. Refer to OPERATION CHECK .

      OK

      Entry function operates normally.

    NG → See step   12

    OK → END (ELECTRICAL KEY ANTENNA IS DEFECTIVE)

  11. GO TO OTHER PROBLEM. Refer to  Luggage Compartment Door Entry Unlock Function does not Operate when Key is Outside Luggage Compartment
  12. REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY). Refer to  REMOVAL
