Home >> Lexus >> 2009 >> IS 350 >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Power Door Lock Control System (Service Information) >> Entry Lock And Unlock Switch >> Components >> Illustration

Entry Lock And Unlock Switch: Components: Illustration

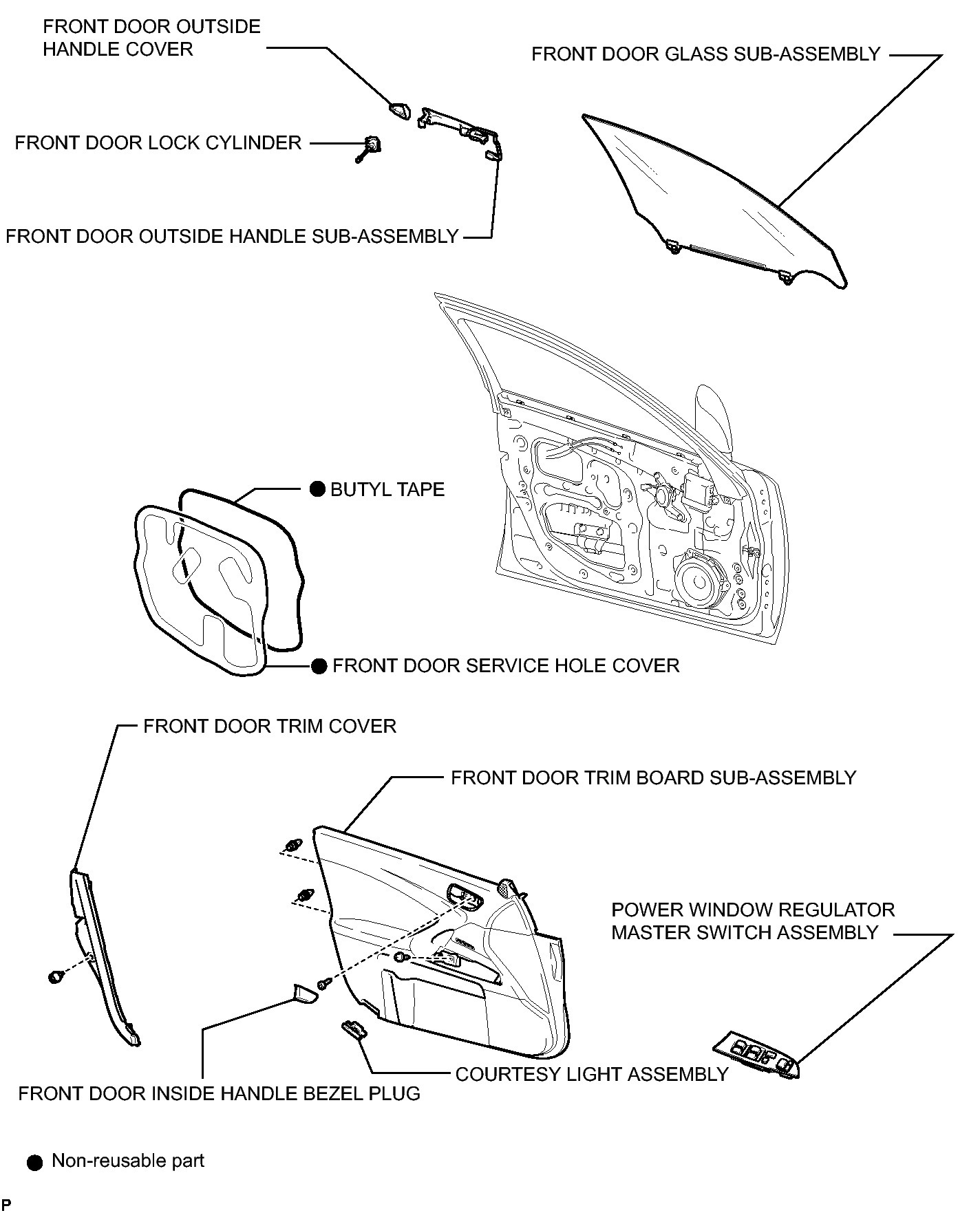

Fig 1: Identifying Entry Lock And Unlock Switch Replacement Components
GTY118699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
