System Diagram

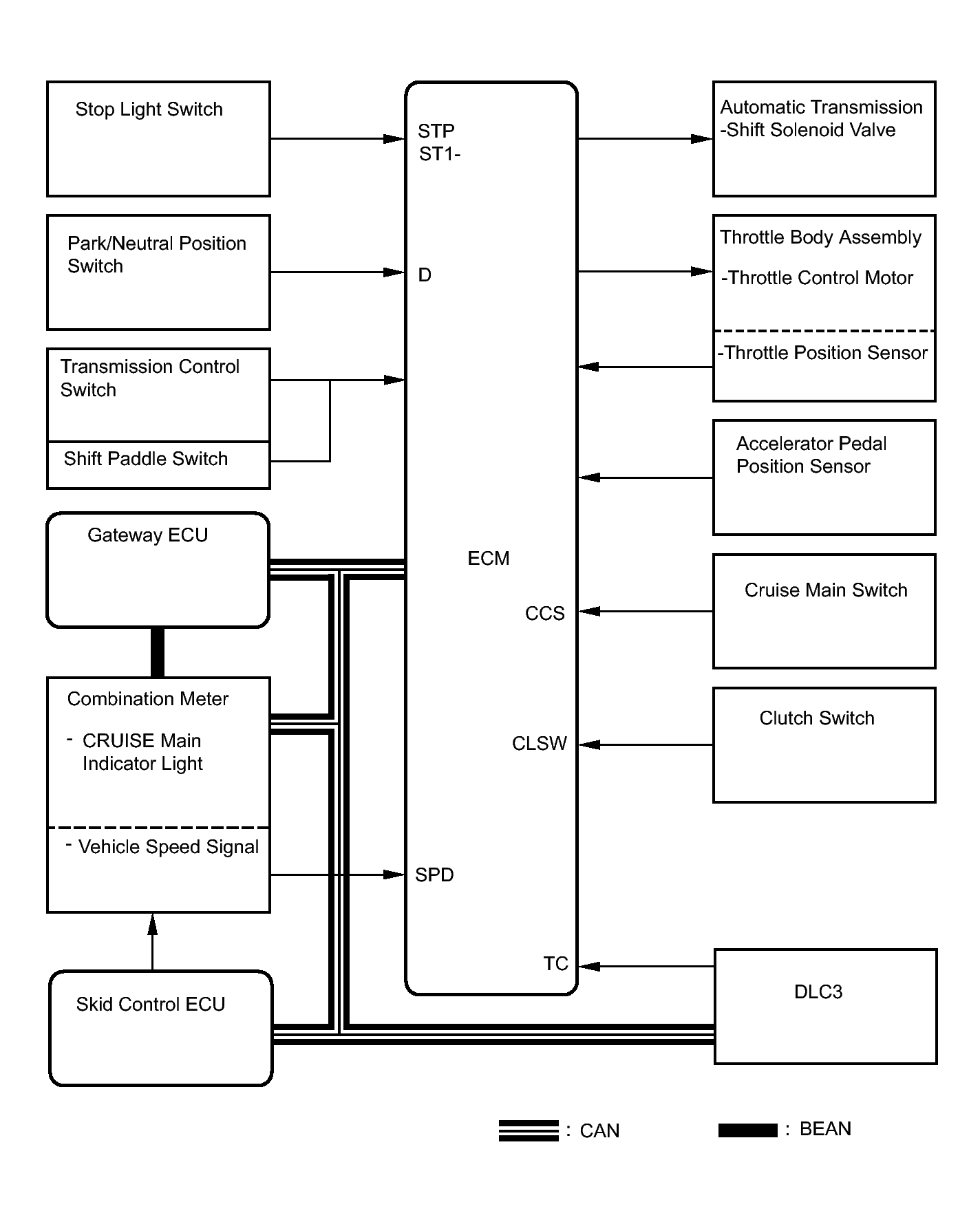

Fig 1: Cruise Control System Wiring Diagram
GTY126214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE:

Sender Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal BEAN
(Instrument Panel Bus)
