Display Signal Circuit between Multi-display and Television Camera Assembly: Wiring Diagram

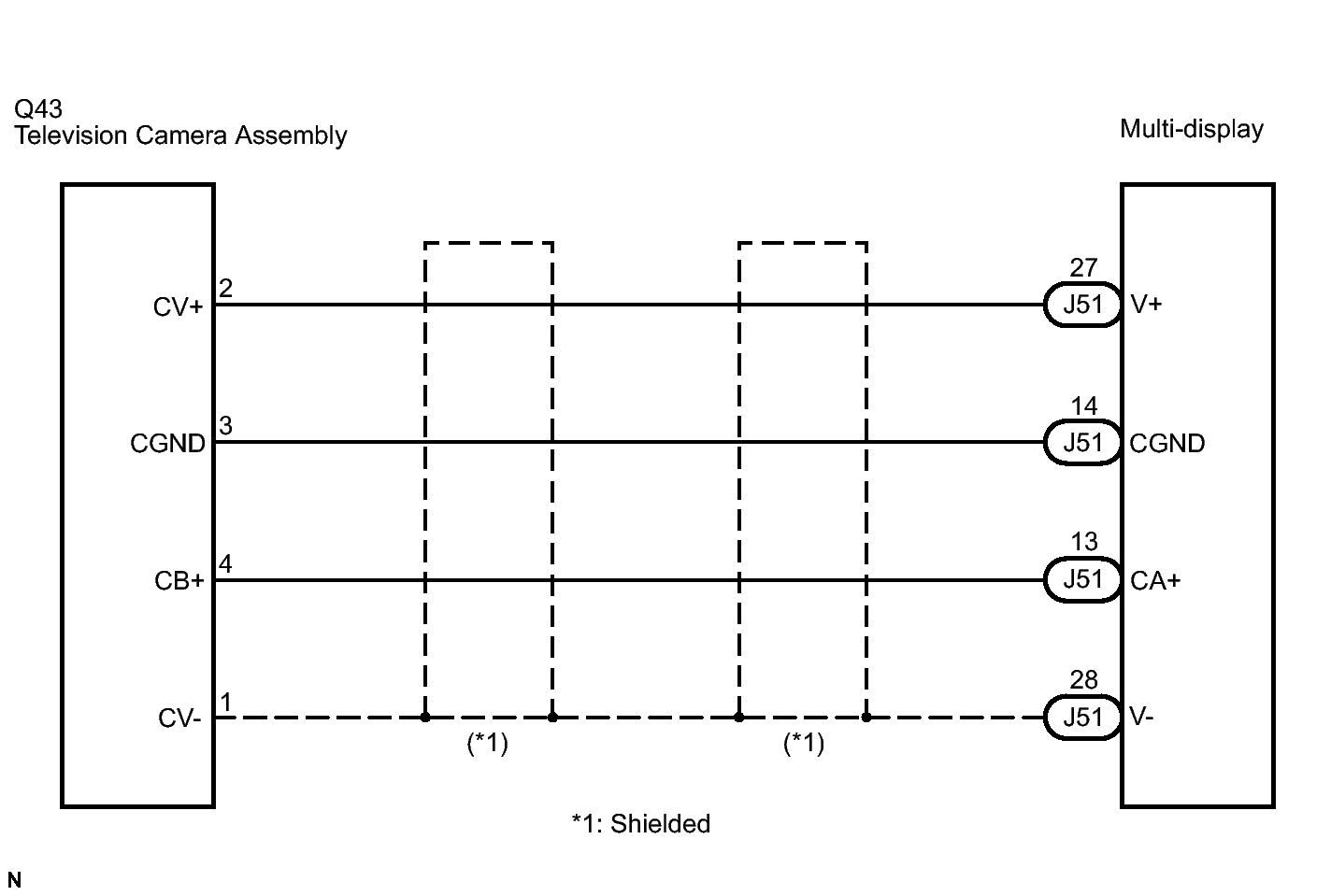

Fig 1: Television Camera Assembly & Multi-Display - Wiring Diagram
GTY144366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
